Opis

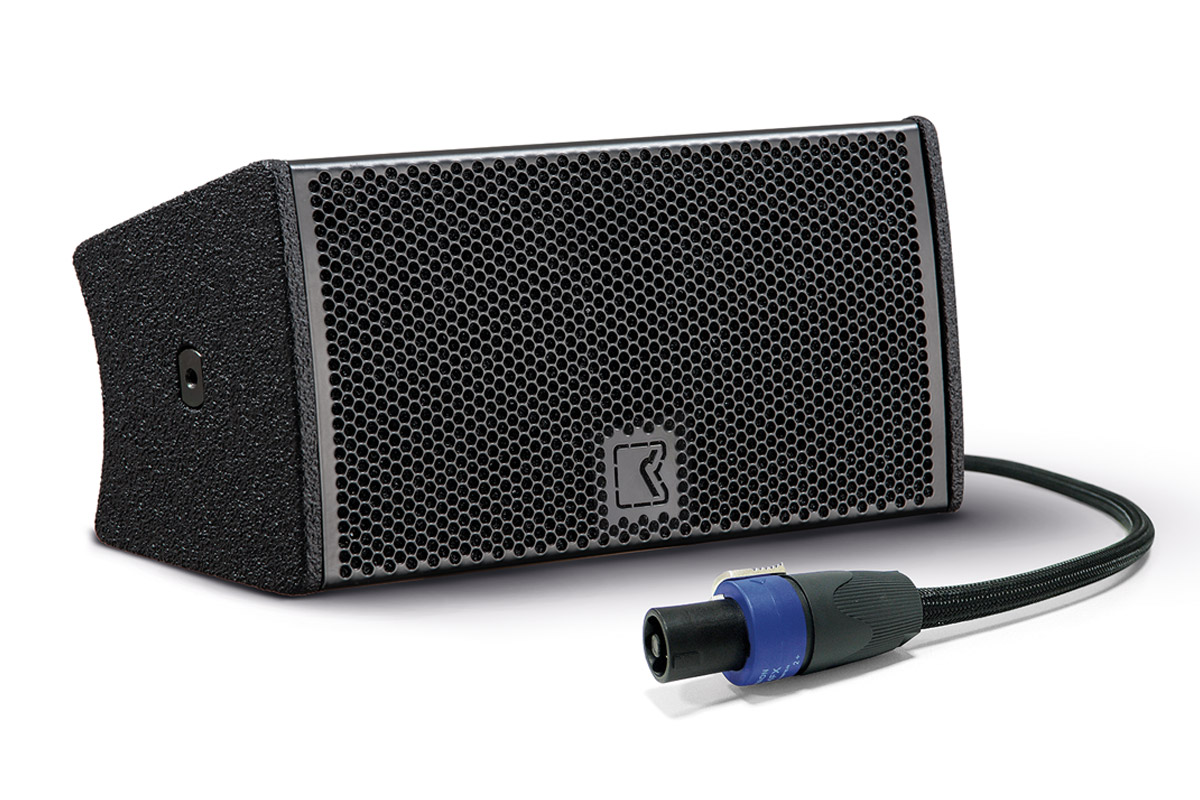

Only high quality Italian made components are used in this low distortion loudspeaker. A special waveguide loaded design provides and enhances the desired precedence required for localization and other psychoacoustic effects often specified for quality installations. Four to eight devices may be used in parallel, saving installation costs. The compatible voicing design allows easy pairing with all other Outline loudspeakers. The high frequency section features a 1.5”-inch compression driver (1” exit) coupled to an Outline proprietary waveguide to insure exceptional intelligibility. Lows utilize two 4-inch woofers (1-inch voice coil) employing a bass reflex loaded system.

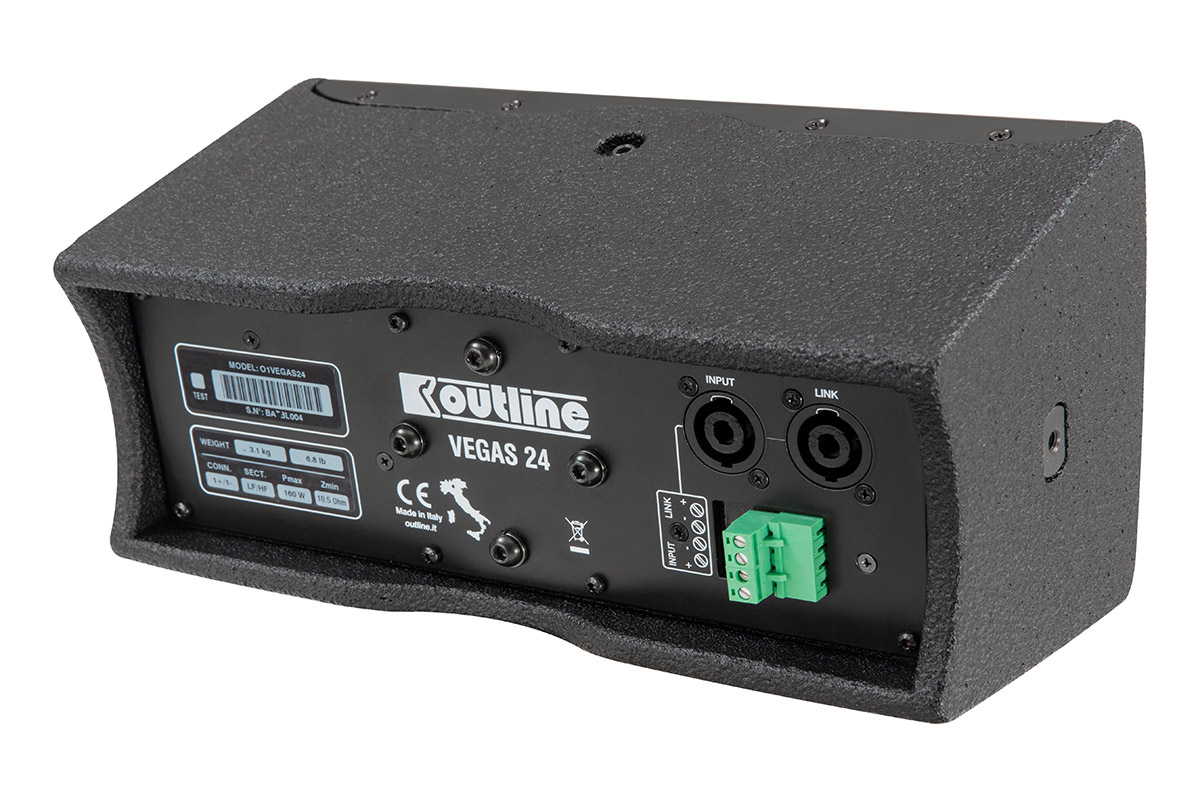

The cabinet is coated with a high-tech black textured polyurea scratch free finish. Custom RAL color repainting options are available for installations with specific cosmetic requirements. The ultra compact, high tensile strength, lightweight enclosure is equipped with two NL4 and a 4-pin Phoenix connector package that offers production quality pass thru for multiple loudspeakers in parallel.
PERFORMANCE SPECIFICATIONS
| Frequency Response (-10 dB) | 120 Hz – 22 kHz |
| Nominal Dispersion | 150° x 90° (H x V) |
| Impedance (Nom/Min) | 16 Ω / 10.5 Ω |
| Watt AES (Continuous/Peak) | 160 W / 640 W |
| Maximum SPL Output * | 122 dB SPL |
| * calculated using +10 dB Crest Factor signal @ 1 m, Free Field |
PHYSICAL
| Component Low | 2 x 4″ woofer |
| Component High | 1.5″ diaphragm compression driver |
| Loading Low | Band-pass |
| Loading High | Moulded horn |
| Connectors | 2 x NL4 PAR Pins 1+/1-, 4PIN PHX |
| Cabinet Material | Baltic birch plywood |
| Cabinet Finish | Black polyurea coating |
| Grill | Epoxy powder coated |
| Installation Points | 8 x M6 threaded points |
| Pole Mount | N/A |
| Height | 148 mm – 5 27/32″ |
| Width | 280 mm – 11 1/32″ |
| Depth | 120 mm – 4 23/32″ |
| Weight | 3.1 kg – 6.8 lb |
