TL 4Z800

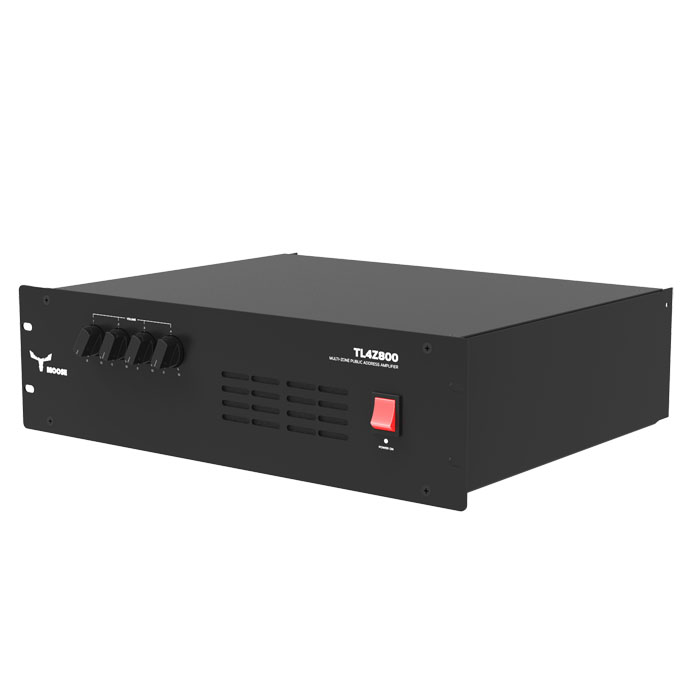

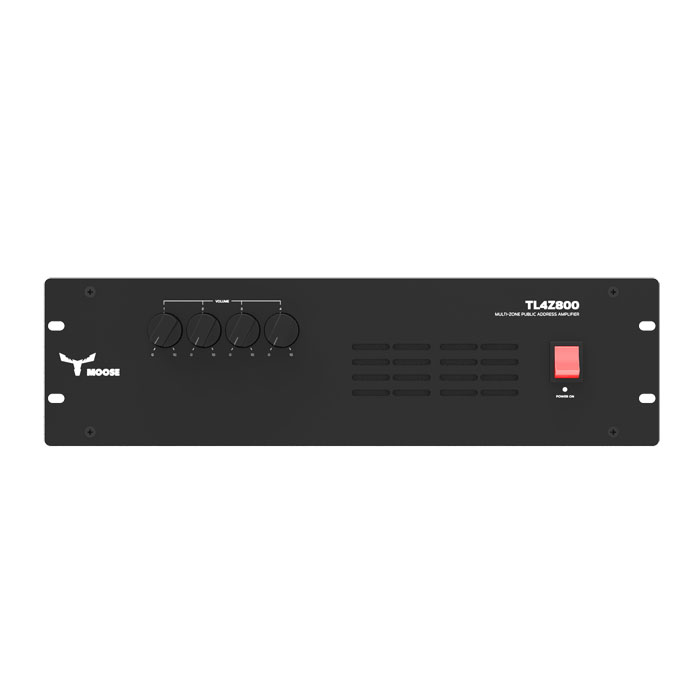

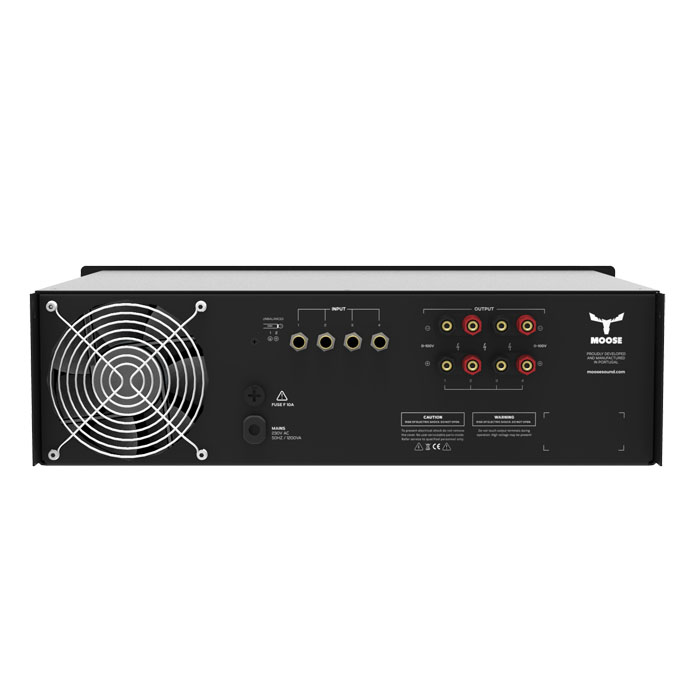

Public address amplifier with a power up to 800W. The PA4Z800 features 4 independent audio inputs performed using Jack 6.5mm with individual volume control on the front panel. The output signal is available on 4 high impedance 100V mono output zones of 200W with binding-post on the rear panel. It is equipped with an advanced protection circuit which protects against DC short circuit and overload when necessary. The PA4Z800 is designed for public address installations such as supermarkets, warehouses, petrol stations, etc, where there is a need to control each zone independently.

Want a discount? Become a member!

Opis

Key Features

  • High quality PA amplifier
  • Multizone installation PA amplifier
  • XLR 3p balanced, Euroblock inputs
  • Constant-voltage outputs (100V)
  • Independent zone control (four)
  • Individual volume control on the front panel
  • Built-in electronic protection circuitry
  • Solid construction for 19” rack – 3U mounting

Tech Specs

TypeMultizone PA mixer/amplifier
Power Output (RMS)4x 200W
Frequency Range50Hz – 15kHz
T.H.D. (20Hz – 20kHz)< 1% @ 1kHz
Signal-to-noise ratio> 90 dB @ 1 kHz
Zones4 zones
ControlsInput channel volume
IndicatorsPower on
InputsSignal in
Outputs100V line
ConnectorsMicrophone, XLR/F 3p
Euroblock terminals
Output: Touch-proof binding posts
Other FeaturesIndependent zone control
ProtectionsShort circuit, DC protection
Operation Voltage230V AC (factory config.), 50–60 Hz
Power Consumption800VA
CoolingContinuously speed fan, 120mm / 230V AC
Dimensions (WxHxD)3RU spaces, 350mm depth (13.78in)
Weight21Kg
46.30lb
