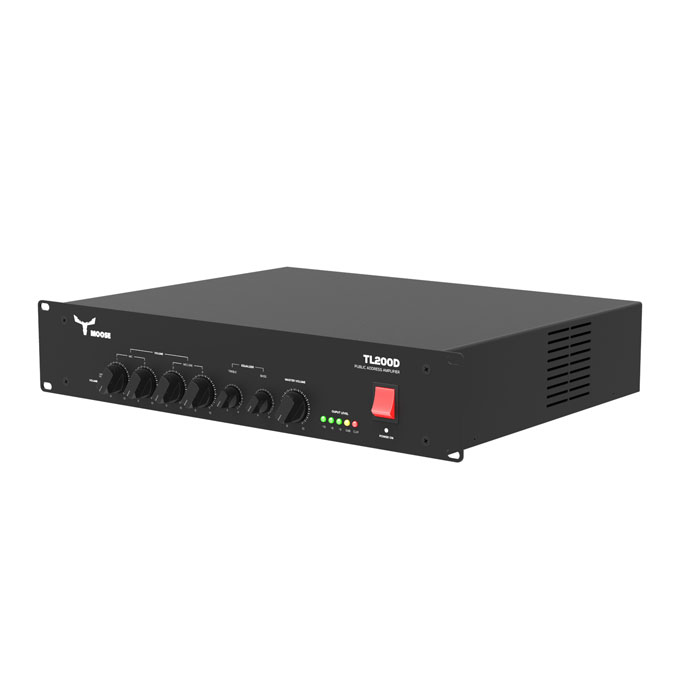

TL 200D

Public address amplifier designed and developped for fixed installations. There are 2 versions available with different output powers, 120W and 220W rms, prepared for rack 19″ mounting. Both TL120D and TL200D feature four balanced microphone inputs plus two line inputs in RCA connector, low impedance (4-16Ohm) and high impedance (100V) outputs both in screw terminals. A built-in phantom power supply with on/off push switch is available as well as a priority microphone input in DIN 5p connector. Additionally, both models feature Slave & REC outputs in RCA connectors, 2-band equalizer and MASTER level control making of this TL120D and TL200D the perfect solution for all kind of public address installations.

Want a discount? Become a member!

Opis

Key Features

  • High quality PA amplifier
  • Installation PA mixer-amplifier
  • 4 Microphone inputs and 1 Line input
  • XLR 3p balanced, Euroblock inputs
  • 4-16 ohm & constant-voltage outputs (70V and 100V)
  • Bass and Teble tone controls
  • Ding-dong and Priority muting by VOX
  • Built-in electronic protection circuitry
  • Solid construction for 19” rack – 2U mounting

Tech Specs

TypePA mixer-amplifier
Power Output (RMS)200W
Frequency Range50Hz – 14kHz
T.H.D. (20Hz – 20kHz)< 1% @ 1kHz
Signal-to-noise ratio> 90 dB @ 1 kHz
ZonesNo
ControlsBass and Treble, Master,
Volume for MIC and Line in
IndicatorsPower on, Signal and Clip
InputsMicrophone, XLR/F 3p
Euroblock terminals
Line in
Outputs4Ω, 8Ω and 100V line, AUX
ConnectorsInput: 6.3mm Jack, RCA line
Output: Touch-proof binding posts
Phantom Power+48V DC
Other FeaturesDing-dong, priority MIC, MIC3/LINE3 and MIC4/LINE4 switch
ProtectionsShort circuit, thermal overload
Operation Voltage230V AC (factory config.), 50–60 Hz
Power Consumption220VA
CoolingContinuously speed fan, 80mm / 230V AC
Dimensions (WxHxD)2RU spaces, 345mm depth (13.58in)
Weight12Kg
26.46lb

Dodatkowe informacje

Marka

MOOSE sound

Zastosowania

Instytucje kultury, Kluby muzyczne, Rental

Specyfikacja

Pobierz plik
