STSUB-215

STADIA STSUB-215 is the companion subwoofer for Stadia & Arena Series, featuring the same ‘OutSide’ weatherproofing system and extending the applicational usefulness of the Stadia/Arena Series still further.

Want a discount? Become a member!

Opis

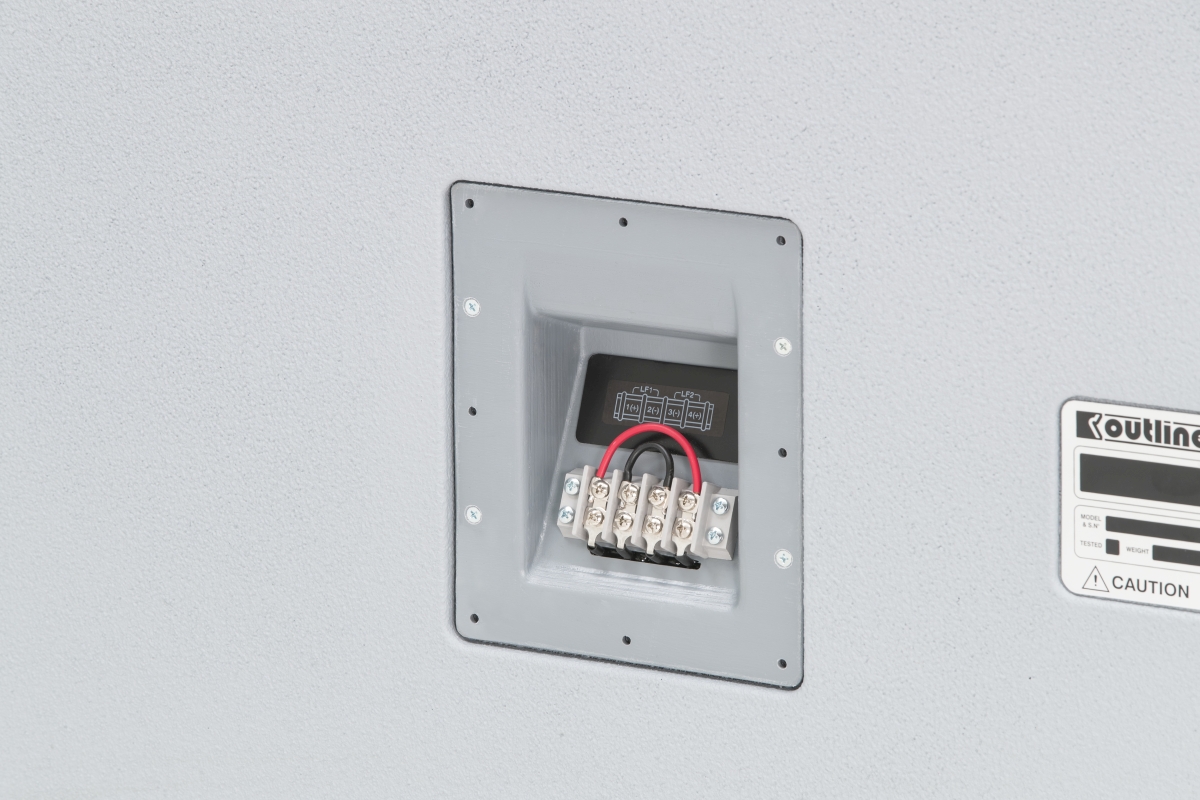

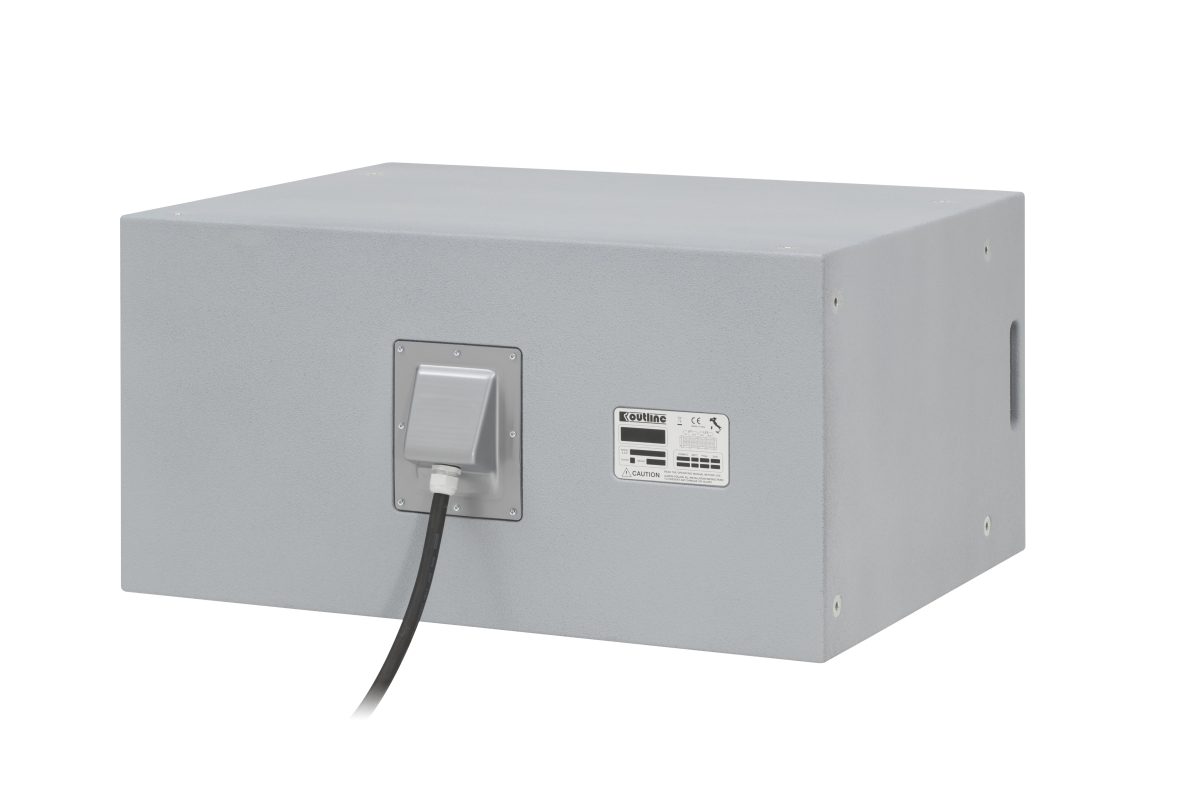

The enclosures are constructed from birch ply finished with ‘outSIDE’, an extraordinarily tough and waterproof elastoplastic coating which interacts with the cabinet material to provide extreme levels of long-term protection. The front grille is treated with an epoxy and polyester-based thermosetting powder paint and matched to an acoustically transparent waterproof sheet, so protecting the components from moisture and other contaminants, while amplifier connections are recessed so that a weatherproof plate with cable retention can be fitted.

The STSUB-215 modules are all fitted with sixteen (16) M10 rigging points made of corrosion-resistant anodized aluminium alloy (Ergal) allowing plenty of mounting options.

PERFORMANCE SPECIFICATIONS

Frequency Response -10 dB34 Hz – 2.4 kHz
Suggested Cross-Overmax 150 Hz
Nominal DispersionQuasi-Omnidirectional
Impedance (Nom/Min)2 x 8 Ω / 2 x 6.7 Ω
Watt AES (Continuous/Peak)2 x 600 W / 2 x 2400 W
Maximum SPL Output *144 dB SPL

* calculated using +10 dB Crest Factor signal @ 1 m, Free Field

PHYSICAL

Component2 x 15” direct radiation woofers
Connectors4 Pole paralleled barrier strip
Cabinet MaterialBaltic birch plywood
Cabinet FinishWP elasto-plastic coated
GrilleEpoxy powder coated
Installation Points16 x M10 threaded points
Height480 mm – 18 57/64”
Depth940 mm – 37”
Width700 mm – 27 9/16”
Weight50 kg – 112.4 lb

Dodatkowe informacje

Marka

Outline

Zastosowania

Instytucje kultury, Kluby muzyczne, Rental

Broszura STADIA Series

Pobierz plik
