UNIQUE CEILING TILE SPEAKER SOLUTION
Extremely Low Profile, No Cutting Holes, No Modifications
LOW-PROFILE DESIGN
The extremely low profile depth allows the speaker to fit into suspended ceiling spaces where a deeper standard speaker would not.
EASY TO INSTALL
Takes minutes to install, just remove one ceiling tile and drop the SP8 into any standard 2×2 drop tile ceiling grid.
Fits standard 2×2 ceilings
The speaker’s design fits into standard 2’x2′ ceiling tile grids.
Versatile for Multiple Applications
Engineered for voice, music, sound masking and paging in office spaces, churches, retail stores, restaurants, schools, and hospitality applications.
COST-EFFECTIVE
Cost-effective commercial audio installation solution that delivers excellent performance.
8″ FULL RANGE DRIVER
8″ full-range paper cone provides a precise and defined sound production.
SP8 SoundPlane 2×2 Ceiling Speaker

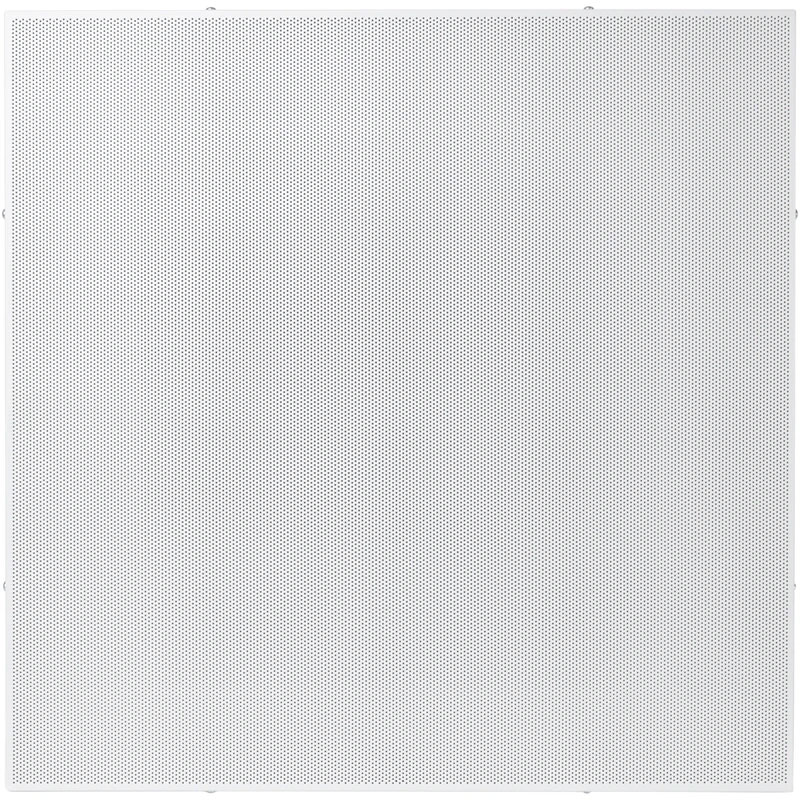

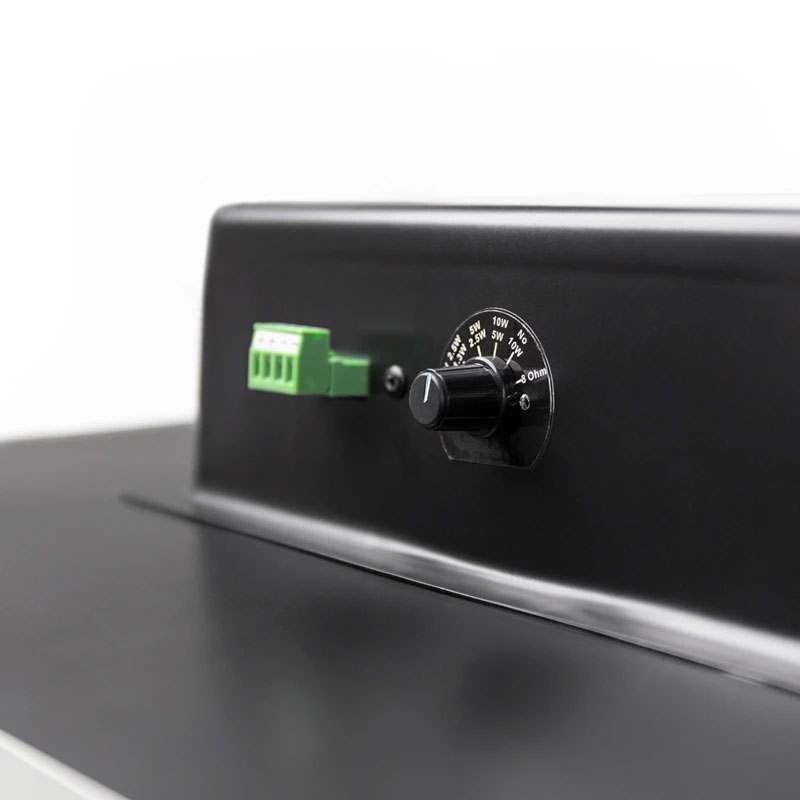

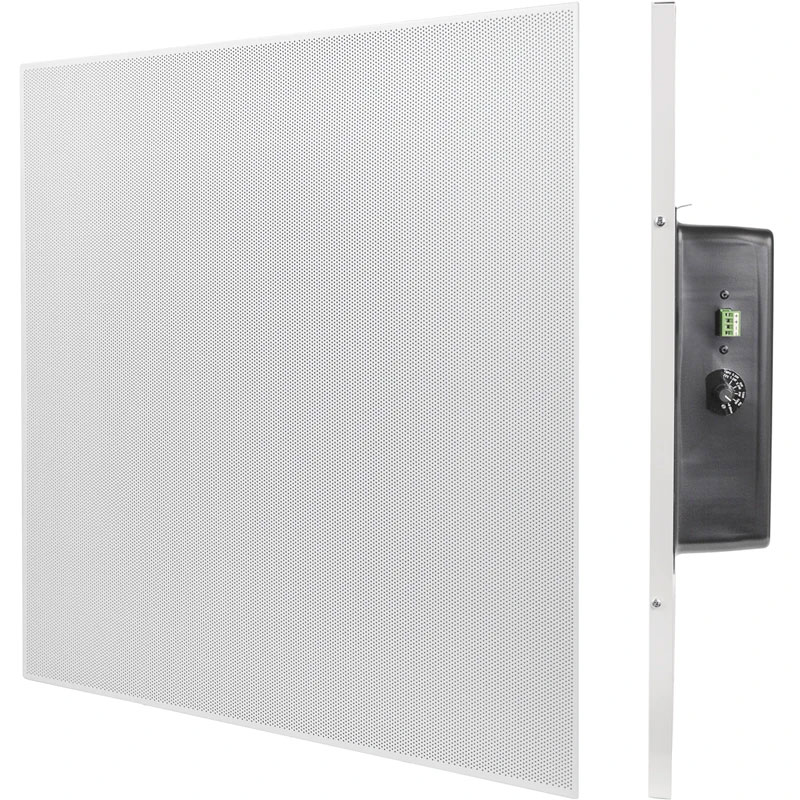

The Pure Resonance Audio SP8 SoundPlane is a full-range ceiling tile speaker designed to drop into a 2’x2′ suspended grid ceiling without having to cut holes or modify ceiling tiles. This offers a fast, easy, and cost-effective solution that saves installation time, effort, and expenses. The low profile depth of only 3.9″ allows the speaker to fit into areas where deeper ceiling speakers could not. For use in commercial audio installations, the built-in adjustable 70V 10-watt transformer is conveniently accessible and located on the side of the rear back-box.

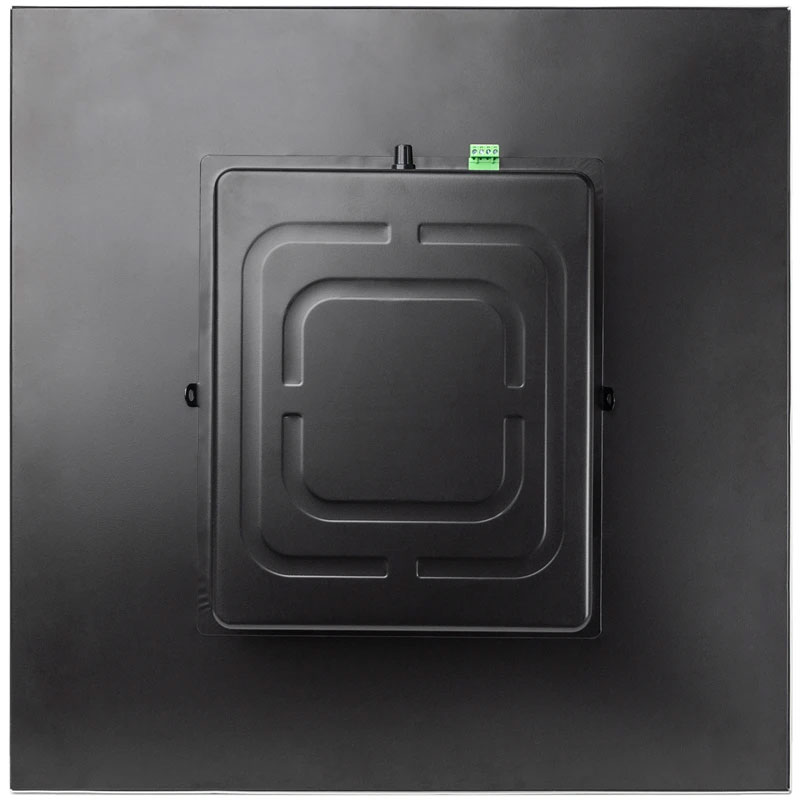

The SP8 2×2 drop-in ceiling speaker contains a full-range 8″ treated paper main cone driver, a secondary high frequency cone, with a 10 ounce magnet. The fully enclosed back-can is constructed of industrial grade steel. The solid white panel with a perforated speaker grille seamlessly blends with the decor in most acoustic drop ceiling tiles. Built-in seismic safety strap tabs are integrated on the steel back-can for suspension mounting from ceiling points (consult your architect or engineer before installing).
Great for small to larger commercial sound installations, this speaker provides excellent performance for background music, sound masking, and paging in audio distributed applications such as business offices, retail stores, restaurants, schools, classrooms, hospitality, foyers, reception and waiting rooms, airports, transportation stations and more.
SPECIFICATIONS
RMS Power: 20W @ 8 Ohms
Frequency Response: 200Hz – 16kHz
Sensitivity (1M/1W): 92dB
Nominal Impedance: 8 Ohms
Transformer: 70V: 1.3W / 2.5W / 5W / 10W / 8 Ohm
100V: 2.5W / 5W / 10W / 8 Ohm
Speaker Size: 8″ Paper Cone
Audio Input: Phoenix Type Pluggable Terminal Block
Grill Type: Square Grill
Mounting Depth: 3.9″ (100 mm)
Dimensions: 23.8″ (605 mm) x 23.8″ (605 mm) x 3.9″ (100 mm)
Net Weight: 13.6 lbs (6.2 kg)
