Opis
Key Features
- Modular Point Source Element

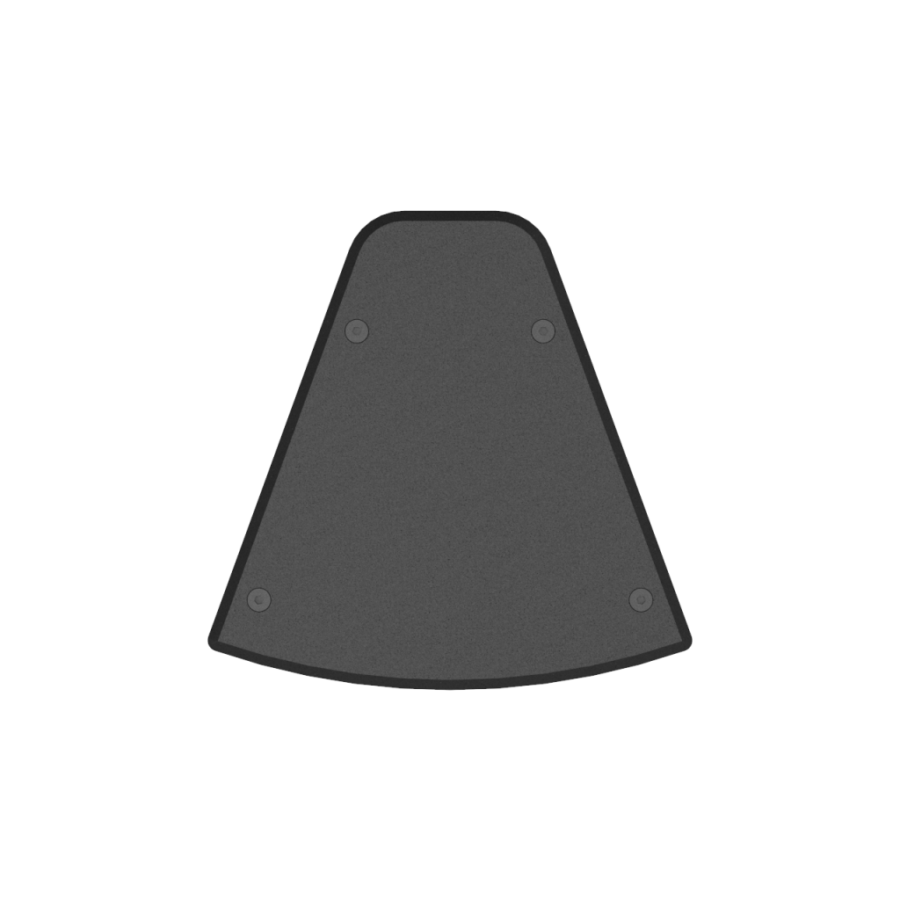

- Ultra Compact, high-efficiency and elegant trapezoidal enclosure
- 12” MF (3in VC) high excursion EU transducer
- 1.4” HF (2.56in VC) neodymium EU compression driver
- 2x NL4 parallel-connected
- Bi-amp operation, user-selectable
- User-rotatable CD horn 90°x60° for ideal dispersion
- M10 rigging points for vertical and horizontal installation
- Rugged and durable 15mm birch plywood

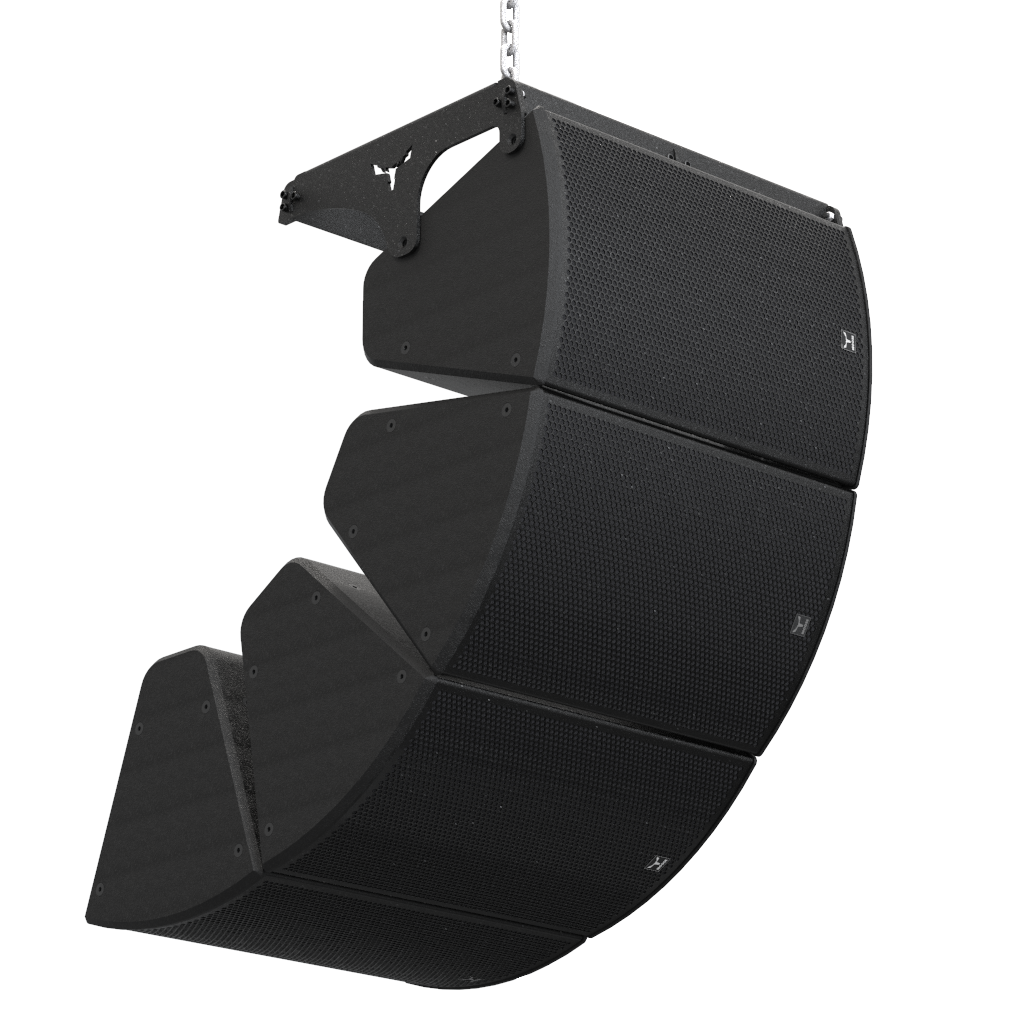

- Up to 4 modules can be set up for both Vertical or Horizontal clusters
- Suited for FOH, Out-fill, In-fill, Worship spaces
- Expandable with subs for a powerful front PA
Tech Specs
| Type | 2-Way modular point source speaker | |
| Enclosure Design | Bass reflex trapezoidal enclosure | |
| Power Output (RMS) | 600W (RMS) 850W (Program) 2200W (Peak) | |
| Frequency Range | 52Hz – 19kHz (+/-10dB) | |
| Nominal Impedance | 8Ohm | |
| Transducer Type | 12″ Neodymium MF (3in VC) EU transducer 1.4″ Neodymium HF (2.56in VC) EU transducer | |
| Dispersion | CD horn, 90°x60° and 60°x90° User-rotatable | |
| Crossover Frequency | Preset dependent Bi-amp operation, user-selectable | |
| Max. SPL (peak) | 131dB @ 1m | |
| Connector | 2x NL4 parallel-connected Bi-amp switch | |
| Construction | 15mm birch plywood, textured polyurea coating | |
| Grille | Custom perforated metal grille with acoustic foam | |
| Installation / Rigging / Flying | 8x M10 flying points Horizontal flybar, FH-MPS12 Horizontal coupling bar, BH-MPS12 Vertical flybar, FV-MPS12 | |
| Dimensions (WxDxH) | 415x410x650mm 16.34×16.14×25.59in | |
| Weight | 22Kg 48..50lb |
