Key Features

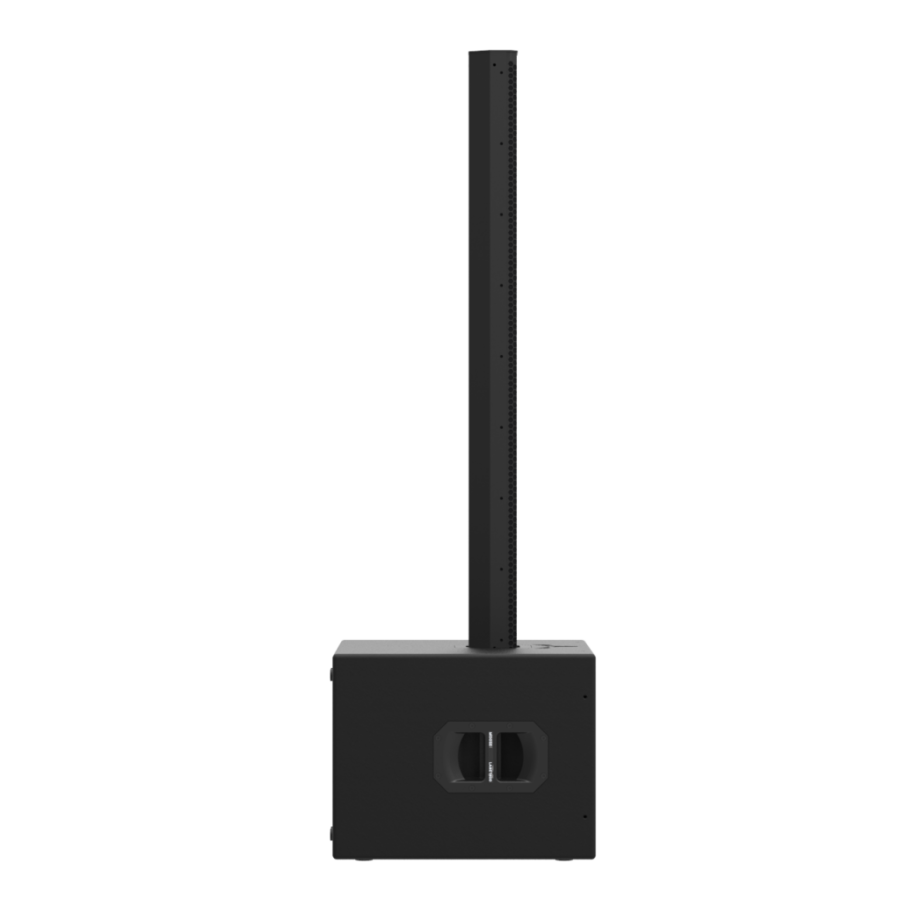

- Active “all-in-one” column PA system
- Great coverage and well-balanced sound distribution
- 15″ (4in VC) LF active subwoofer
- 8x 3″ (0.75in VC) + 1″ (0.98in VC) passive column speaker
- Driven by a 2-channel Class D power amplifier
- Fully programmable DSP with selectable presets (4)
- Universal 85-264Vac mains for the active versions
- Multi-pin connector to minimize setup time

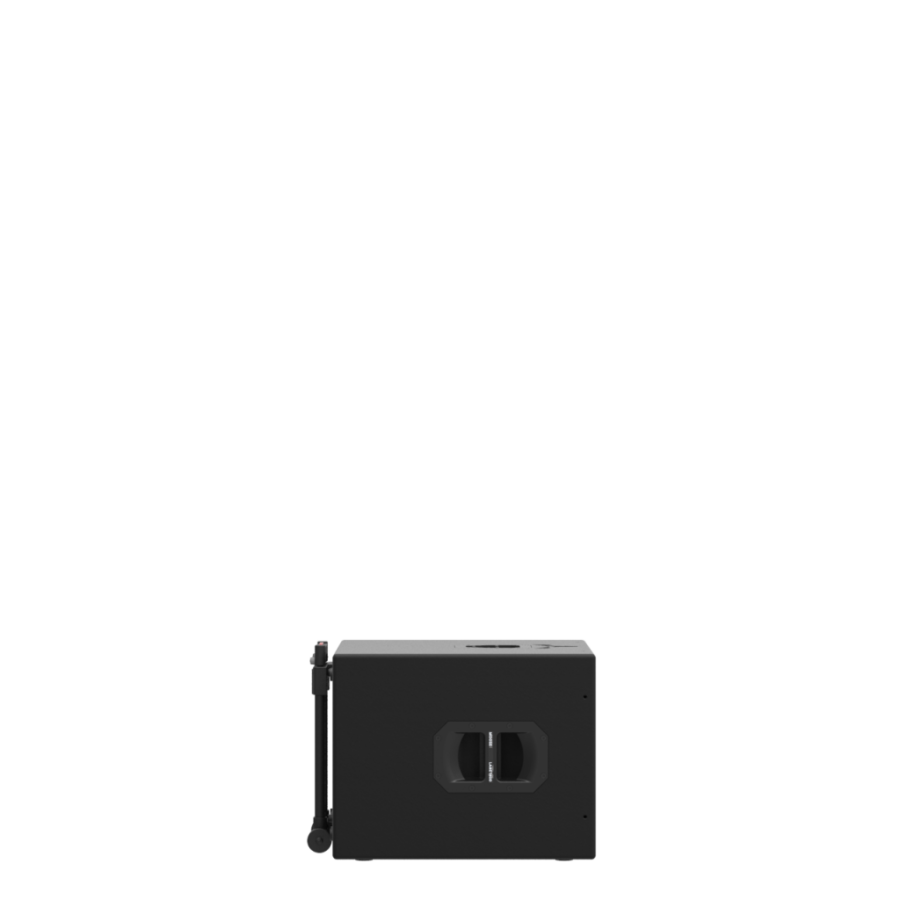

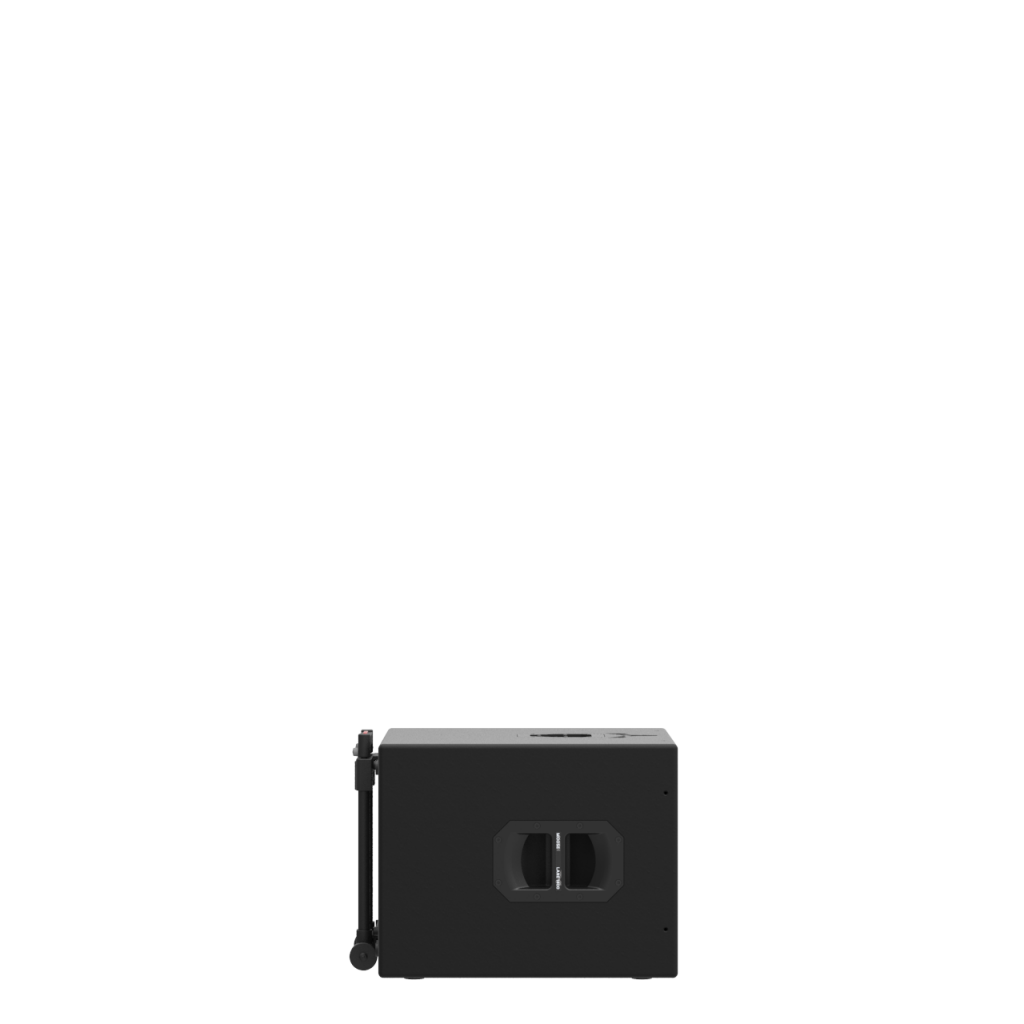

- LANE15+ prepared to fit a Pull-out Trolley handle (3472)
- Rugged and durable 15mm birch plywood with polyurea coating
Tech Specs
| Type | Active column PA system | |
| Enclosure Design | Bass reflex [LANE15+] Column sealed [LANE T803] | |
| Power Output (RMS) | 1000W / 1400W [LANE15+] 200W / 350W [LANE T803] | |
| Frequency Range | 40Hz – 180Hz [LANE15] 85Hz – 20kHz [LANE T803] | |
| Transducer Type | 15″ (4in VC) LF EU transducer [LANE15+] 8x 3″ (0.75in VC) MF [LANE T803] 1″ (0.98in VC) HF EU transducer [LANE T803] | |
| Dispersion | 120° horizontal (average) | |
| Crossover Frequency | DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter | |
| Max. SPL (peak) | 132dB @ 1m (system) | |
| Amplifier type | Class D, 2 channel amplifier | |
| Amplifier output | 800W + 400W (continuous) 1600W (peak) | |
| Input | XLR/jack combo connector | |
| Output | XLR/M 3p | |
| Indicators | Power, signal/preset, clip | |
| Controls | Master level control, 4 selectable presets | |
| Feature | Cooling by convection | |
| AC Power Supply | Switching power supply, universal 85-264Vac | |
| AC mains connector | Neutrik® powerCON, Power-in (blue)/Power-out (grey) | |
| Protection | Over current, short circuit, thermal, DC and HF protections | |
| Construction | 15mm birch plywood, textured polyurea coating [LANE15] Extruded aluminium profile w/ black powder coating [LANE T803] | |
| Grille | Custom perforated metal grille with acoustic foam | |
| Installation / Rigging / Flying | 4 rubber feet on the back of LANE15+ to protect the amp Plug-and-play column fitting Custom multi-pin connector for T803 Height extender available (500mm) LANE15+ prepared to fit a Pull-out Trolley handle (3472) | |
| Dimensions (WxDxH) | 530x550x430mm / 20.87×21.65×16.93in [LANE15+] 107x95x1320mm / 4.21×3.74×51.97in [LANE T803] | |
| Weight | 33Kg / 72.8lb [LANE15+] 8Kg / 17.6lb [LANE T803] |
