Opis
Key Features
- Single horn-loaded subwoofer
- High power density, high level output
- Excellent “punch”, extended Low frequency
- 18” (4in VC) Neodymium EU transducer (high excursion)
- Extended sub frequency response to 30 Hz
- 2x NL4 parallel-connected
- 18mm baltic birch plywood construction, polyurea coating
- Recesses on top to facilitate the stacking
- Powder coated custom perforated steel grille

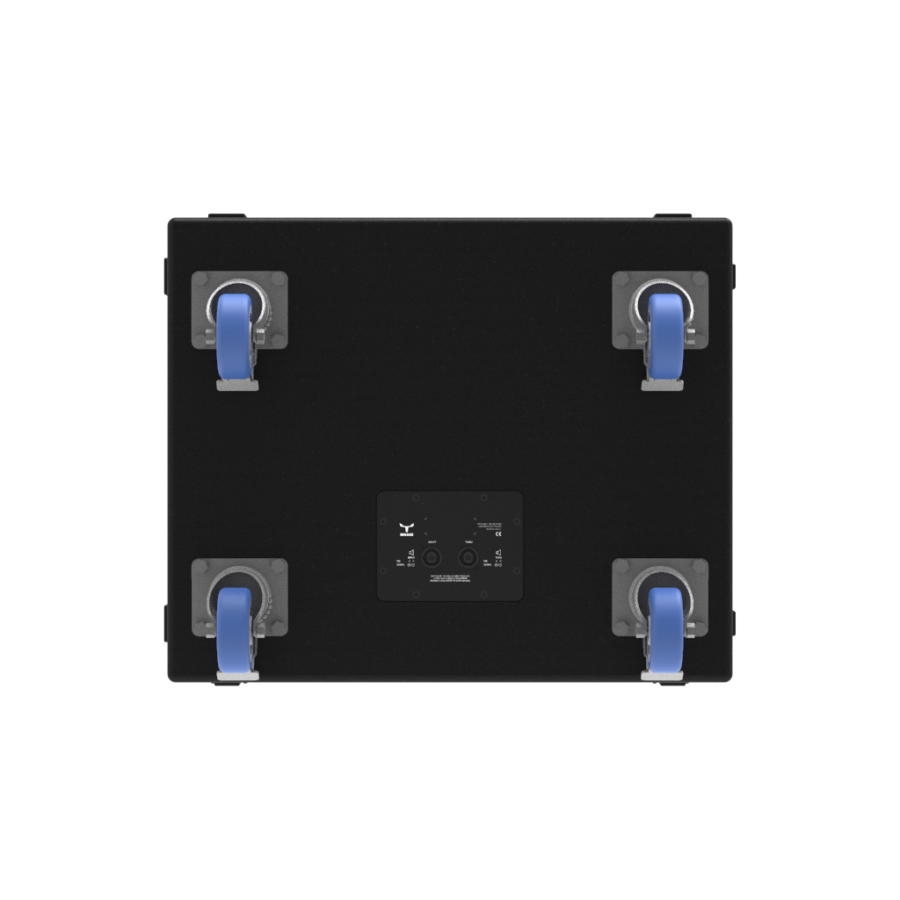

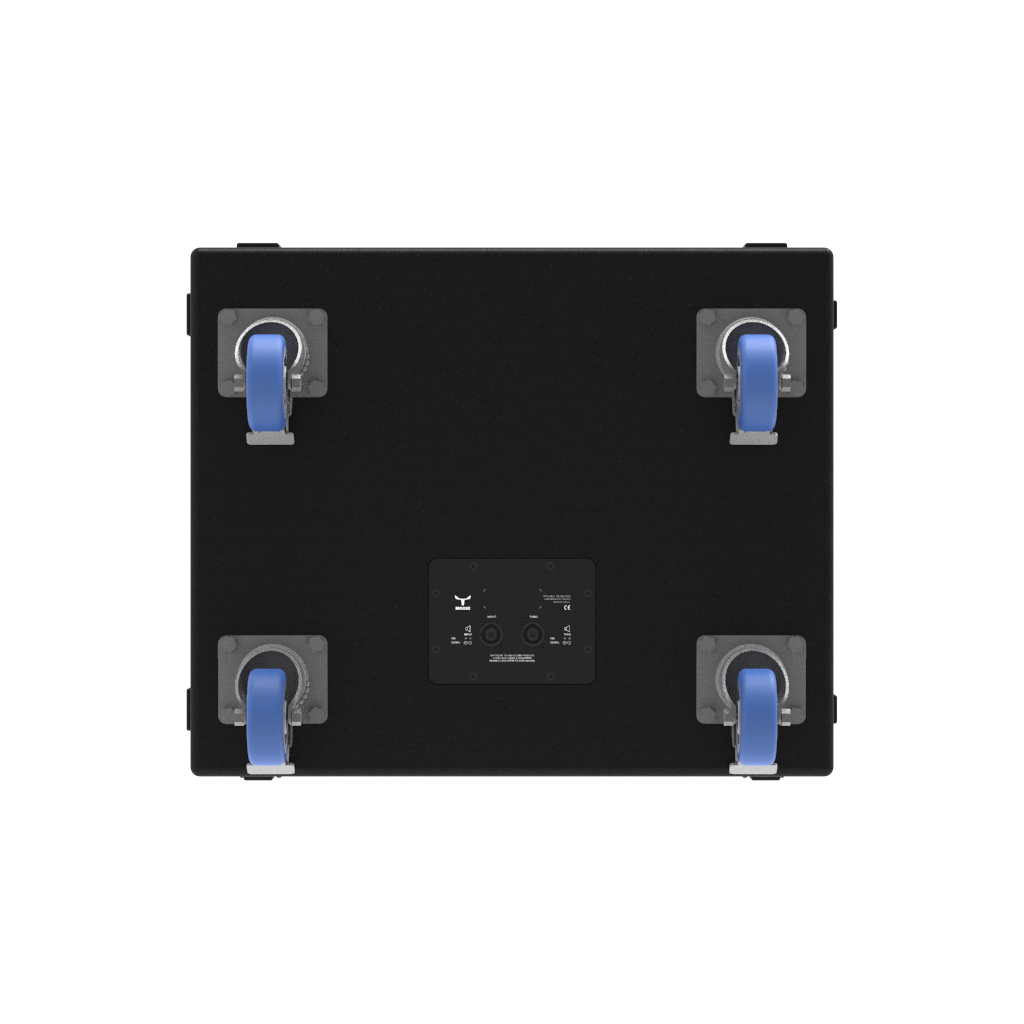

- Heavy duty wheel casters on the back (optional)
Tech Specs
| Type | Compact PASSIVE subwoofer | |
| Enclosure Design | Horn-loaded | |
| Power Output (RMS) | 1200W (AES) 2400W (Program) 7000W (Peak) | |
| Frequency Range | 34Hz – 190Hz (-6dB) | |
| Nominal Impedance | 8Ohm | |
| Transducer Type | 18″ (4in VC) Neodymium LF EU transducer | |
| Max. SPL (peak) | 135dB @ 1m (continuous) 143dB @ 1m (peak) | |
| Connector | 2x NL4 in parallel-connected | |
| Construction | 18mm birch plywood with polyurea coating | |
| Grille | Custom perforated metal grille w/ acoustic foam | |
| Installation / Rigging / Flying | 4 rubber feet, 1 side handle Ø35mm pole mount socket Prepared for stacking | |
| Dimensions (WxDxH) | 620x750x515mm 24.41×29.53×20.28in | |
| Weight | 44Kg 97.00lb |
