Opis

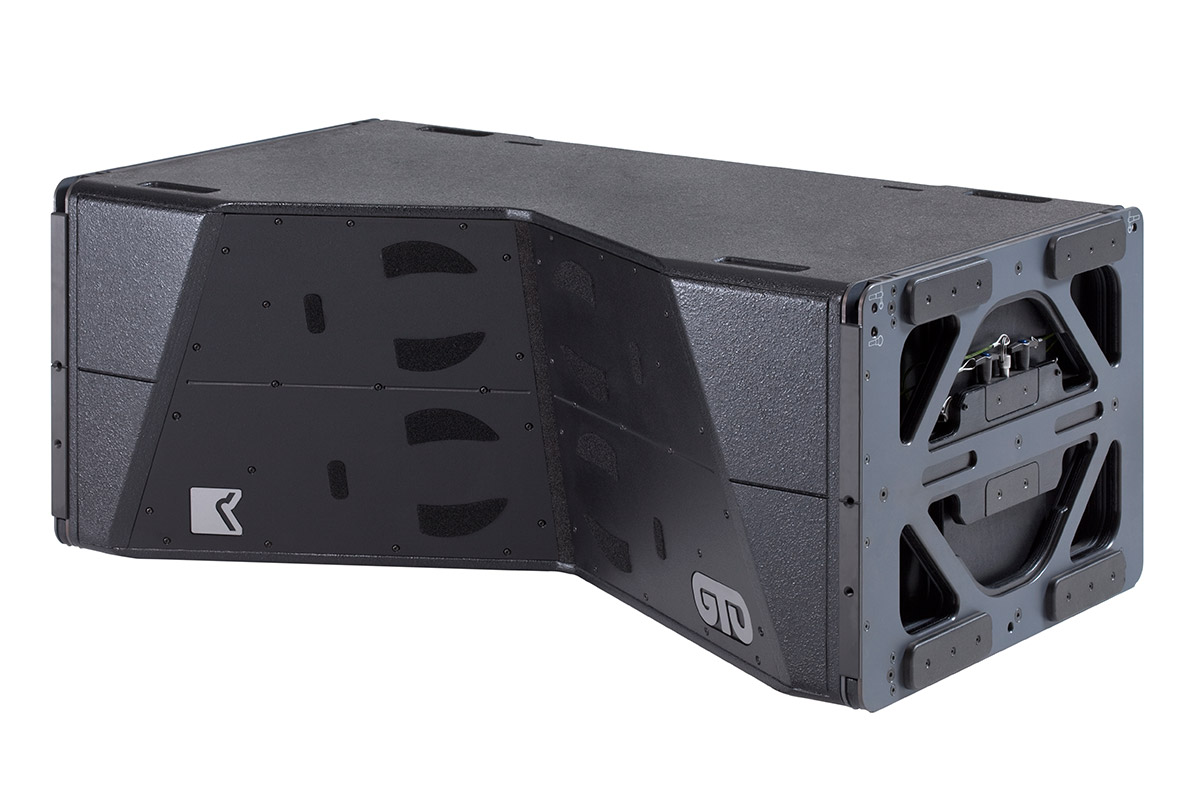

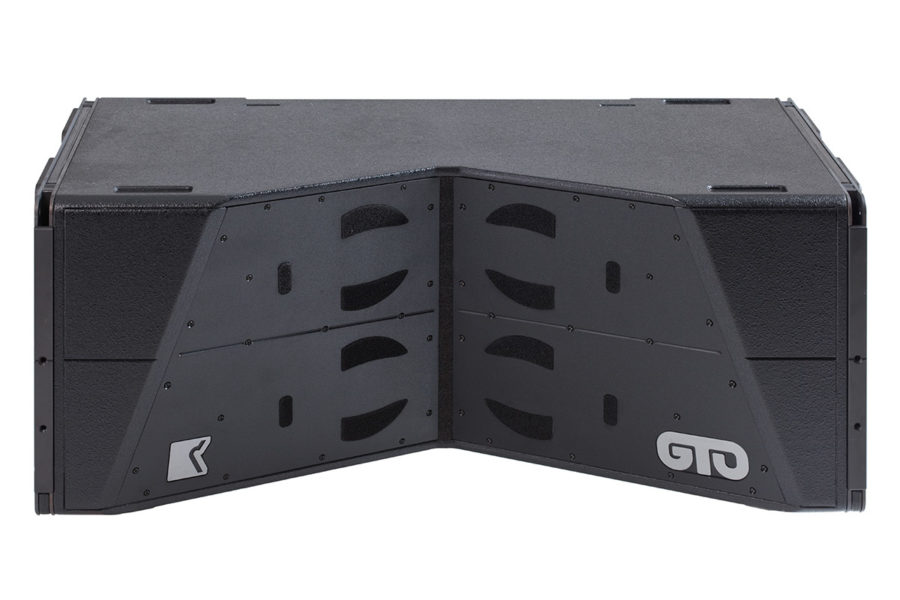

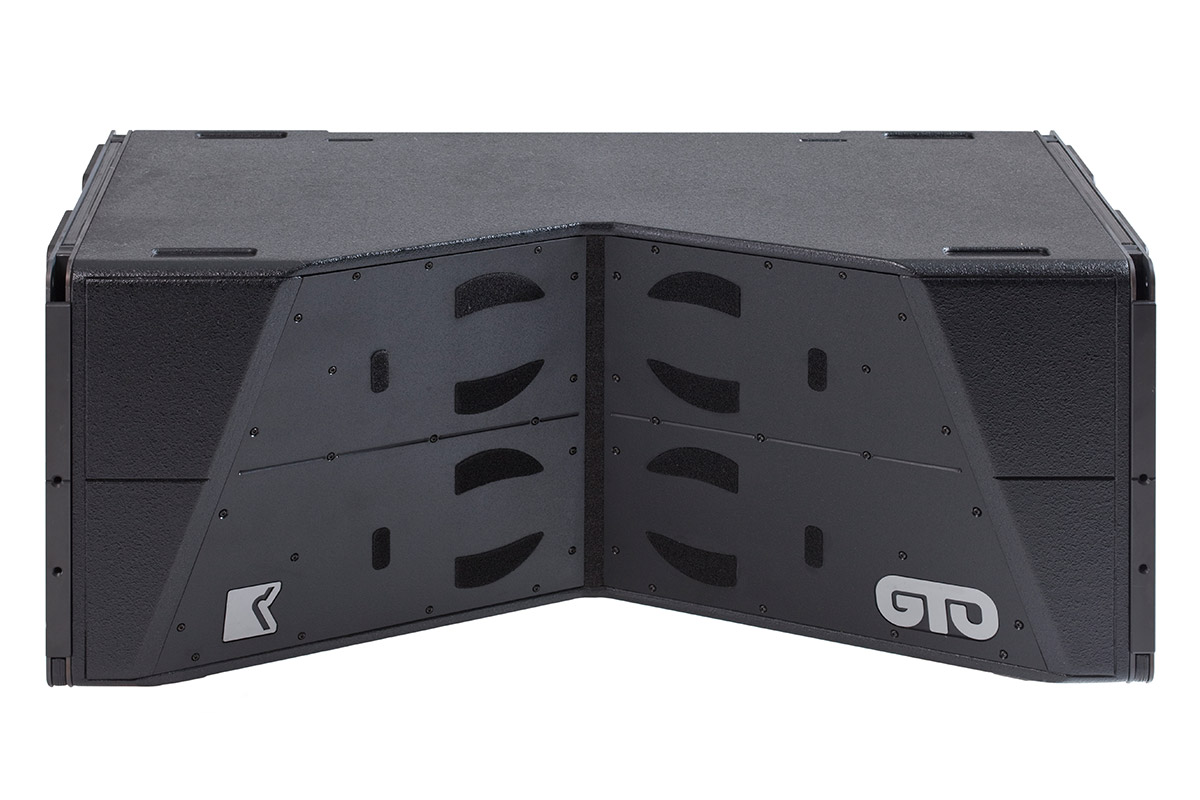

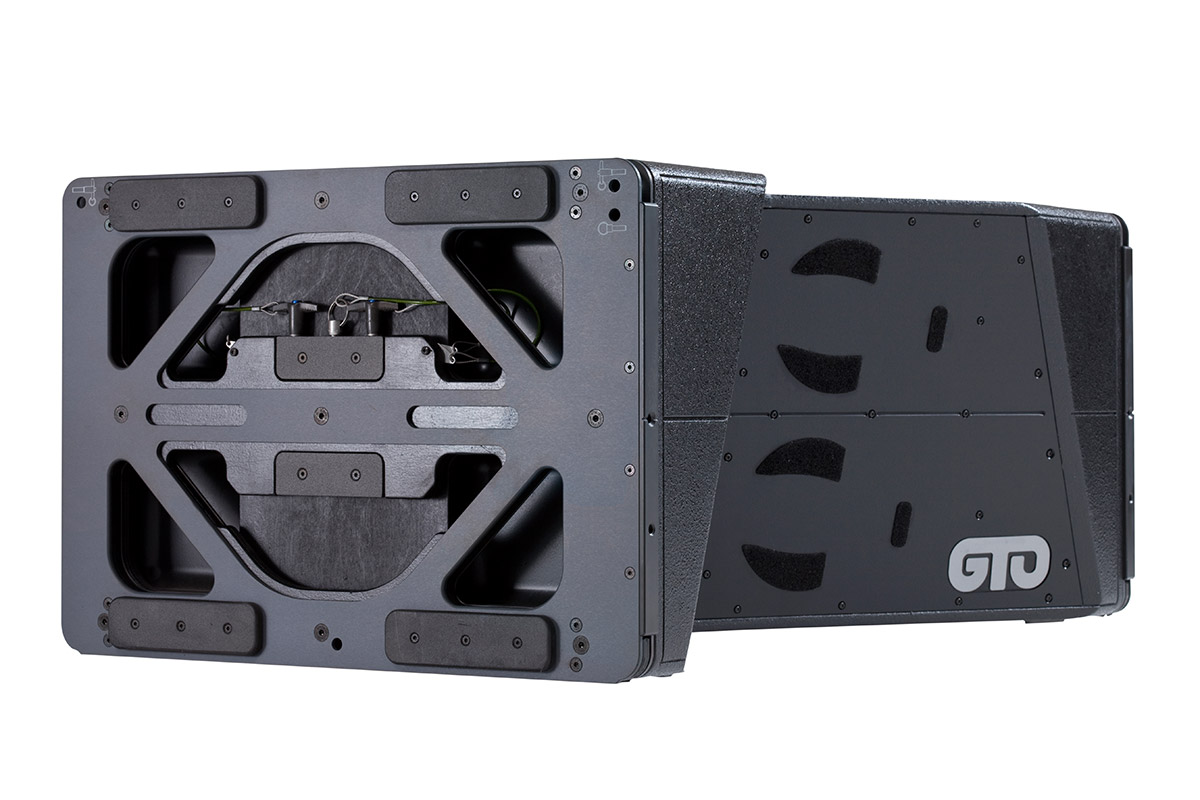

GTO-DF is mechanically identical to, and acoustically matched with, the GTO full-range cabinet, so it can be easily added to a flying array. Unique to the GTO-DF is a vertical dispersion range of zero-degrees to minus 25-degrees to ensure precision aiming of the sound into the audience and not onto the stage. The development of this acoustic lens has facilitated a much more compact design than is normally associated with products of this type. The proprietary waveguide offers 120-degrees of horizontal coverage from 315 Hz to 17.5 kHz.
The GTO-DF is intended for large-scale applications, as part of the GTO-turnkey solution. The GTO range is ideally suited to projects that demand no-compromise audio quality. This product is capable of outstanding electrical to acoustic power conversion. The GTO-DF has a useable frequency +/-3 dB from 250 Hz to 17.8 kHz.
The sensitivity is 105 dB SPL (for the mid frequencies) and 101 dB SPL (high frequencies) in free field. A maximum continuous AES input power of 800 W (mids) and 250 W (highs) will provide a power output of 134 dB SPL in free-field (mids) and 125 dB SPL (highs), while peak output power values can reach 144 dB SPL (mids) and 135 dB SPL (highs).
The GTO-DF’s high quality cabinet is constructed from 15 mm (phenolic-glued) baltic birch plywood and includes bracing throughout to increase the overall cabinet rigidity. The outer finish applied is a scratch-resistant, waterproof black paint. GTO trolley-board designed for ‘2-up’ aids handling and transporting on even or uneven surfaces. Recessed integrated handles in the side panels of the cabinet are used for a positive grip during handling. Weather protective shower caps also form part of the turnkey -package.
Connection to the loudspeaker comes in the form of two types of connector, wired in parallel. These are: one NL4 wired pins 1+/1- for midrange drivers, pins 2+/2- for HF compression drivers plus one LKI-8 wired pins E/F for midrange drivers and pins G/H for HF compression drivers.
Features
- Down-Fill element to form part of the GTO turnkey solution
- Modular design to offer identical footprint to all other GTO system elements
- Designed as the bottom cabinet within the array to cover the first section of the audience
- High efficiency mid-high element incorporating 4 x 8” mid-range neodymium drive-units and 2 x 3” diaphragm compression drivers on a proprietary acoustic lens, coupled to a special asymmetric ‘V-Power’ baffle (as found in the GTO full range element)
- Designed for bi-amplification Very high power handling (3200 + 1000 watts AES peak) and sound pressure (max 144.5 dB SPL peak at 1 metre)
- Equipped with the high-precision GTO Rigging system to allow actuate aiming and coverage.
- Extensive internal bracing to ensure the utmost sturdiness
- Standard GTO trolley-board aids handling and transportation. Stacked ‘2-up’ on a single board
- Design file available within the ‘OpenArray’ 3D acoustic simulation software
- Designed as the down-fill section within the GTO range
- Ideal in “live” arena, festival, and stadium concerts
| FREQUENCY RESPONSE (-10 dB) | 200 Hz – 18.5 kHz |
| AVERAGE DISPERSION | Horizontal: 120° Vertical: from +0° to -25° (on axis -12.5°) |
| IMPEDANCE | Mid: 8 Ω (min 6.8 Ω) High: 16 Ω (min 16.7 Ω) |
| POWER – WAES | Mid: 800 (3200 peak) High: 250 (1000 peak) |
| MAX SHORT-TERM SPL @ 1 m, free-field* | 144.5 dB SPL |
| LOUDSPEAKERS AND LOADING | Mid: 4 x 8″ NdFeB partially horn loaded mid woofers High: 2 x 3″ diaphragm NdFeB compression driver loaded by acoustic lenses coupled to a constant directivity horn |
| WEIGHT – SINGLE UNIT | 78 kg (172 lb) |
| DIMENSIONS (Net) | Height: 465 mm (18 5/16″) Width: 1126 mm (44 11/32″) Depth: 655 mm (25 25/32″) |
| DIMENSIONS (With Pins) | Height: 465 mm (18 5/16″) Width: 1181 mm (46 1/2″) Depth: 655 mm (25 25/32″) |
| * calculated using +10 dB crest-factor signal |
