Opis

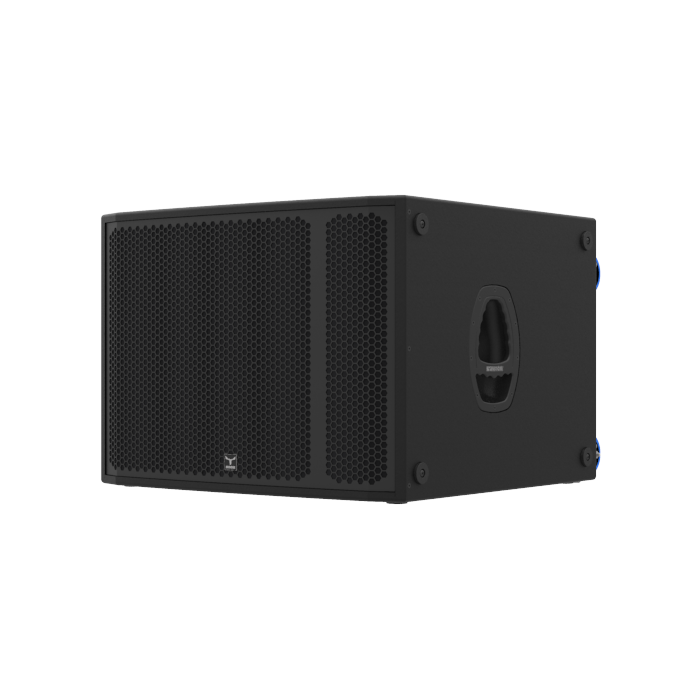

The BASS series offers a professional and compact passive and active subwoofers range becoming the perfect choice for sound reinforcement challenges demanding high SPL and natural sounding bass response designed to enhance the ultra-low bass of an existing PA system.
Key Features
- Reflex Loaded passive subwoofer
- 1x 18″ (4in VC) LF EU transducer
- 2x NL4 connected in parallel
- Optimized for high SPL output
- Made for an impact bass
- Recesses on the top to facilitate the stacking
- Rugged and durable 18mm birch plywood construction
- Powder coated custom perforated steel grille
Tech Specs
Type | Compact PASSIVE subwoofer | |
Enclosure Design | Reflex Loaded | |
Power Output (RMS) | 1200W (AES) 2400W (Program) 7000W (Peak) | |
Frequency Range | 27Hz-200Hz (-10dB) | |
Nominal Impedance | 8 Ohm | |
Transducer Type | 18″ (4in VC) LF EU transducer | |
Crossover Frequency | 30Hz Butterworth 18dB | |
Max. SPL (peak) | 128dB @ 1m (continuous) 134dB @ 1m (peak) | |
Connector | 2x NL4 in parallel | |
Construction | 18mm birch plywood with polyurea coating | |
Grille | Custom perforated metal grille w/ acoustic foam | |
Installation / Rigging / Flying | 4 rubber feet, 2 side handles Ø35mm pole mount socket Prepared for stacking | |
Dimensions (WxDxH) | 750x710x540mm 29.53×27.95×21.26in | |
Weight | 55Kg 121.25lb |
