Opis
The BASS series offers a professional and compact passive and active subwoofers range becoming the perfect choice for sound reinforcement challenges demanding high SPL and natural sounding bass response designed to enhance the ultra-low bass of an existing PA system.
The active version feature a powerful class D single channel amplifier delivering 2400W @ 4ohm connected to a fully programmable DSP providing low-ranging yet clearly defined bass response and rendering impulses with great accuracy in a very

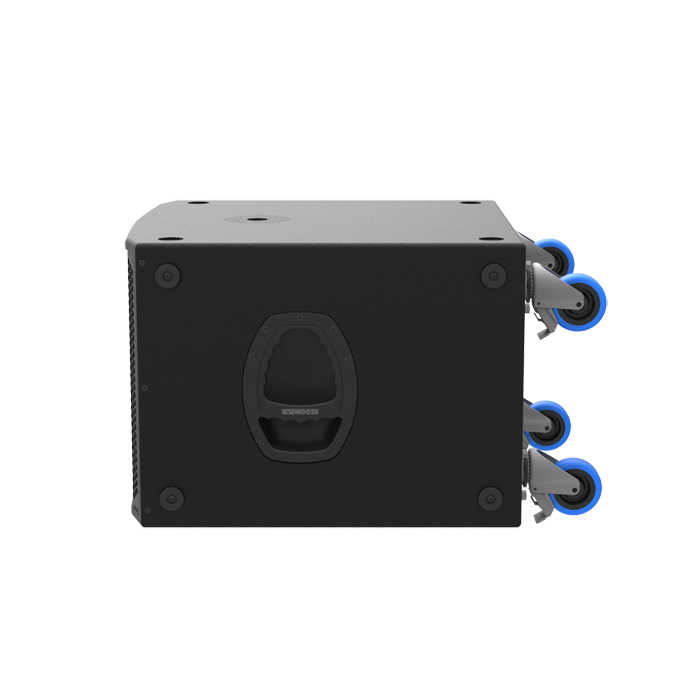

compact and robust enclosure. The amplifier module is prepared for universal 85- 264Vac mains input and features various electronic protections. To ensure a perfect matching and avoid undesired vibrations during high SPL operation the enclosures are constructed in 18mm reinforced birch plywood with a rugged and durable polyurea coating. The ergonomic carrying handles permit a secure grip from all sides and convenient transport and all models are prepared to accept 4 swivel castors with 16x M6 inserts on the back. Punch and bass sensation do not have to be incompatible factors and this BASS series truly is a great example.
Key Features
- Bass reflex ACTIVE subwoofer
- 1x 15″ (4in VC) LF EU transducer
- 1200W AES / 7000W Peak power
- Single channel Class D amplifier with integrated DSP
- Universal 85-264Vac mains, SMPS with PFC
- Versatile, compact and coherent subwoofer
- Made for an impact bass
- Recesses on the top to facilitate the stacking
- Rugged and durable 18mm birch plywood construction
- Powder coated custom perforated steel grille
Tech Specs
| Type | Compact ACTIVE subwoofer | |
| Enclosure Design | Bass reflex | |
| Power Output (RMS) | 1200W (AES) 2400W (Program) 7000W (Peak) | |
| Frequency Range | 32Hz – 250Hz | |
| Nominal Impedance | N/A | |
| Transducer Type | 1x 15″ LF (4in VC) EU transducer | |
| Crossover Frequency | DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter | |
| Max. SPL (peak) | 132dB @ 1m (continuous) | |
| Amplifier type | Class D, single channel amplifier | |
| Amplifier output | 2400W (continuous) | |
| Input | XLR/Jack combo connector | |
| Output | XLR/M3p connector | |
| Indicators | Power, signal/preset, clip | |
| Controls | Master level control, 4 selectable presets | |
| Feature | Cooling by convection | |
| AC Power Supply | Switching power supply, 85-264Vac | |
| AC mains connector | Neutrik® powerCON, Power-in (blue) / Power-out (grey) | |
| Protection | Over current, short circuit, thermal protection DC output protection and HF protection (amplifier) | |
| Construction | 18mm birch plywood, textured polyurea coating | |
| Grille | Custom perforated metal grille with acoustic foam | |
| Installation / Rigging / Flying | 4 rubber feet, 2 side handles Ø35mm pole mount socket Prepared for stacking | |
| Dimensions (WxDxH) | 590x590x440mm 23.23×23.23×17.32in | |
| Weight | 38Kg 83.78lb |
