Opis

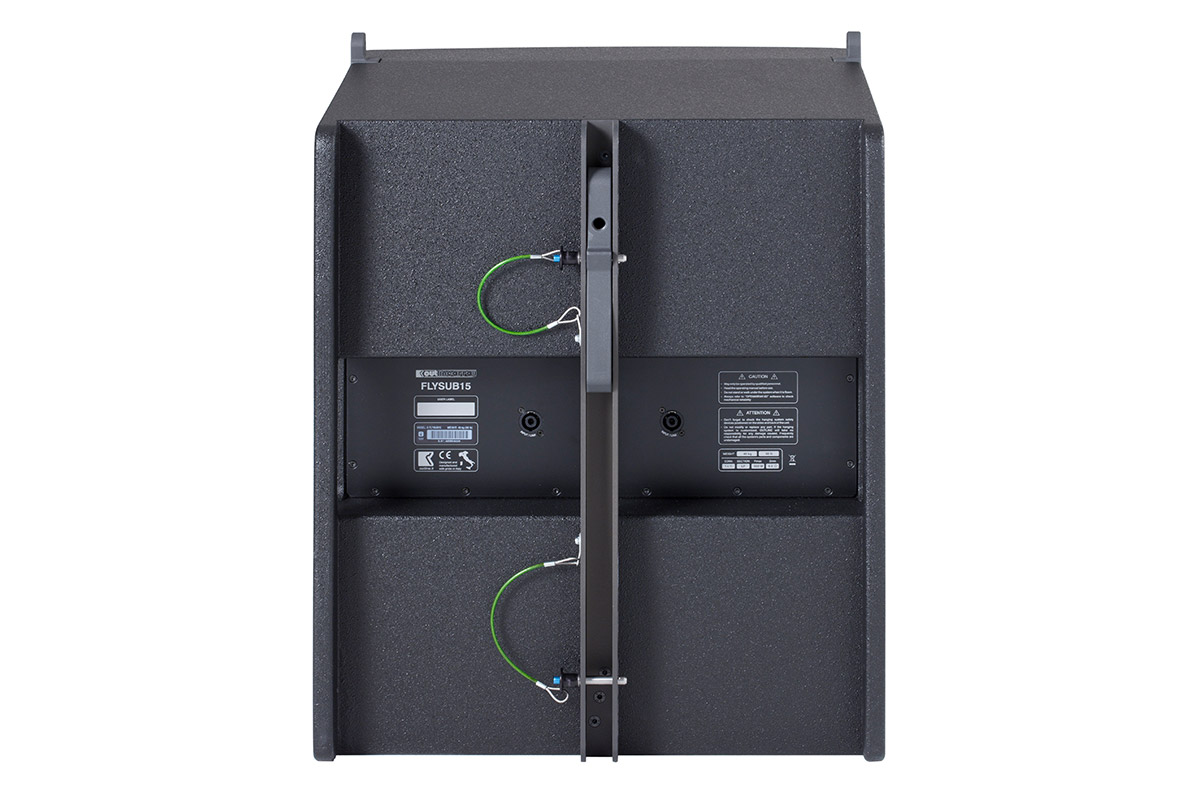

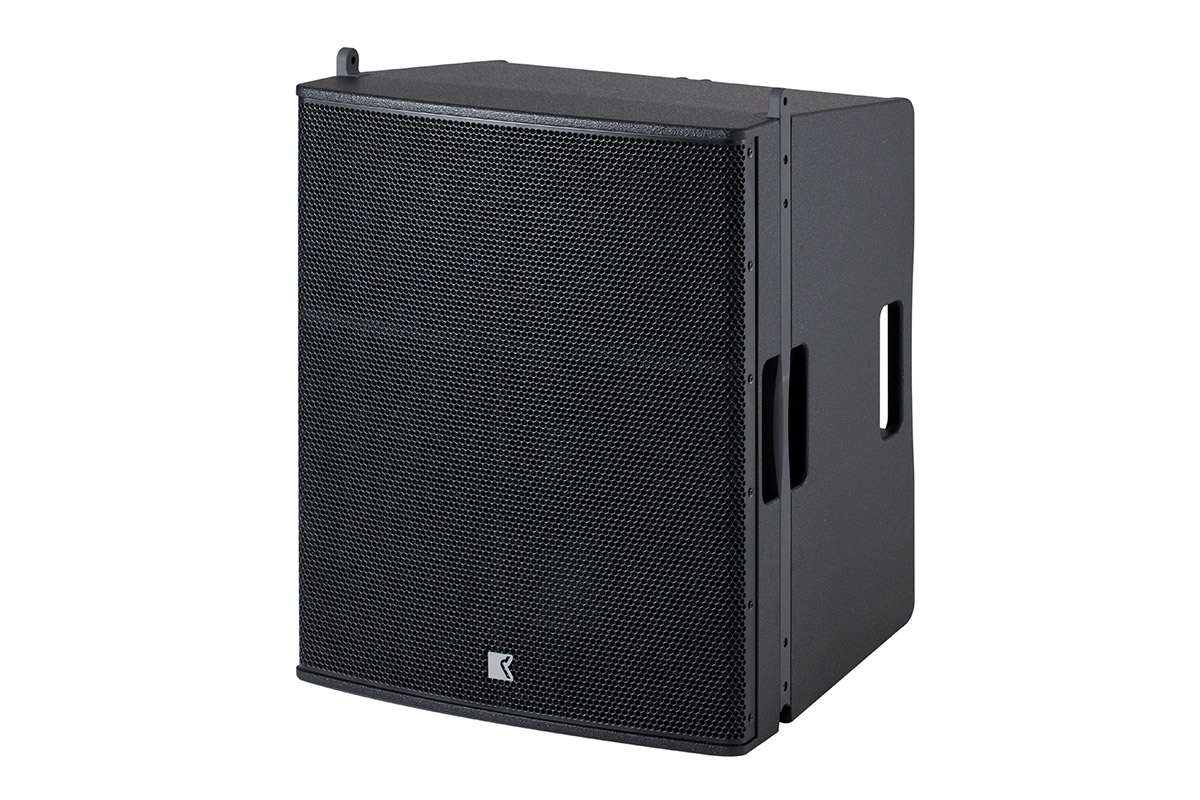

The FLYSUB 15 is able to handle up to 500 W AES and 2000 W peak at 8 Ω. The suggested amplifier is the Outline T5-DSP. Up to two FLYSUB 15 can be connected to the same output channel. Each enclosure has two NL4 connector wired in parallel.

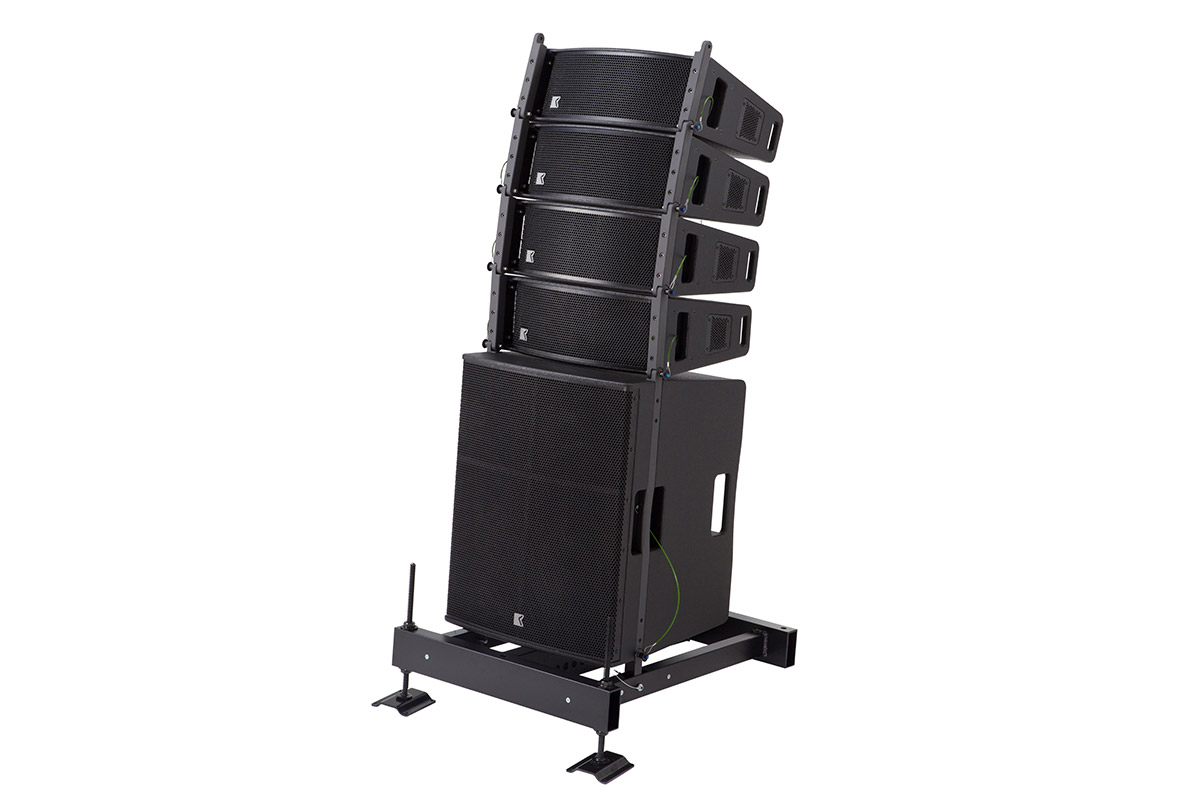

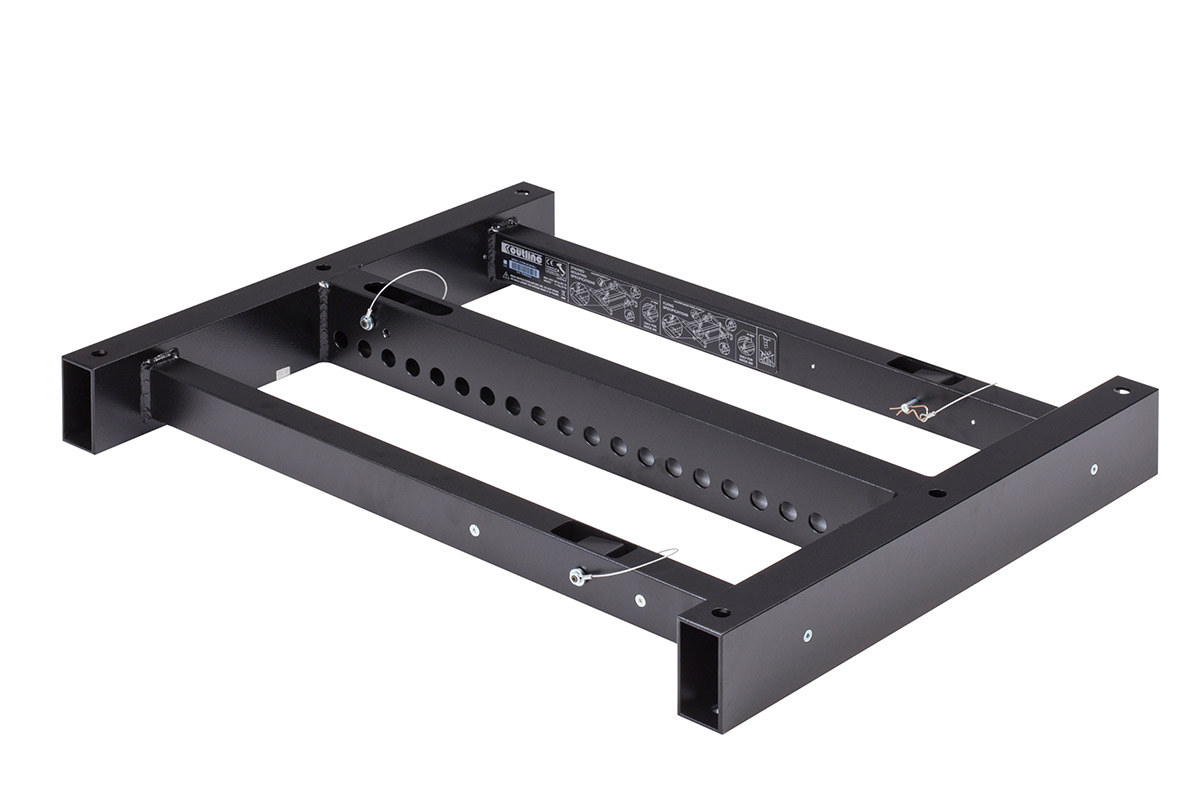

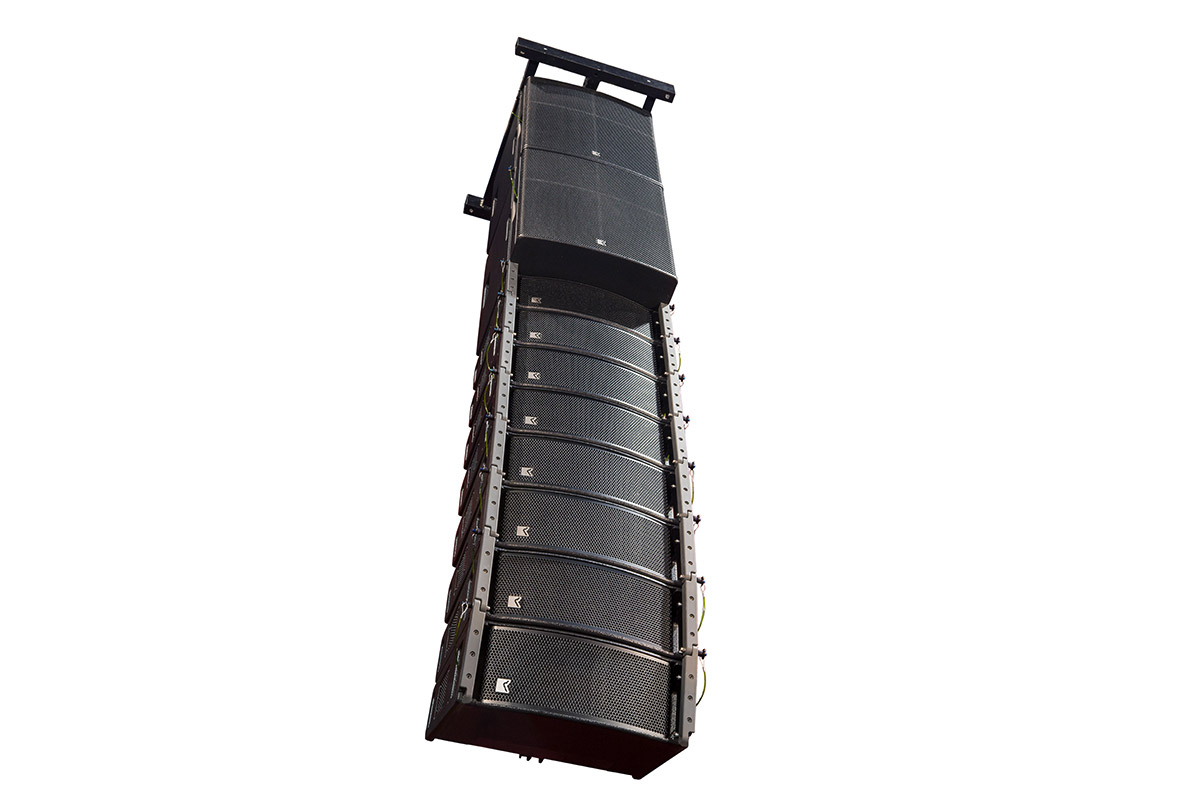

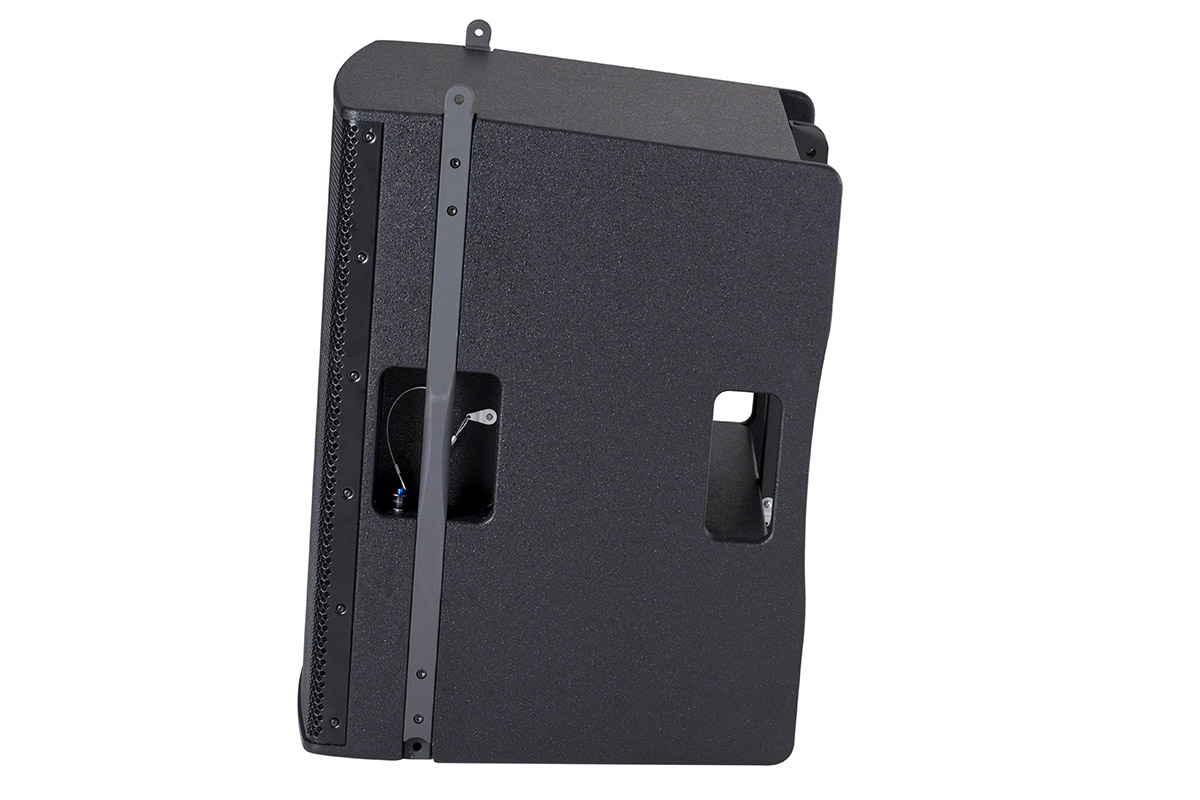

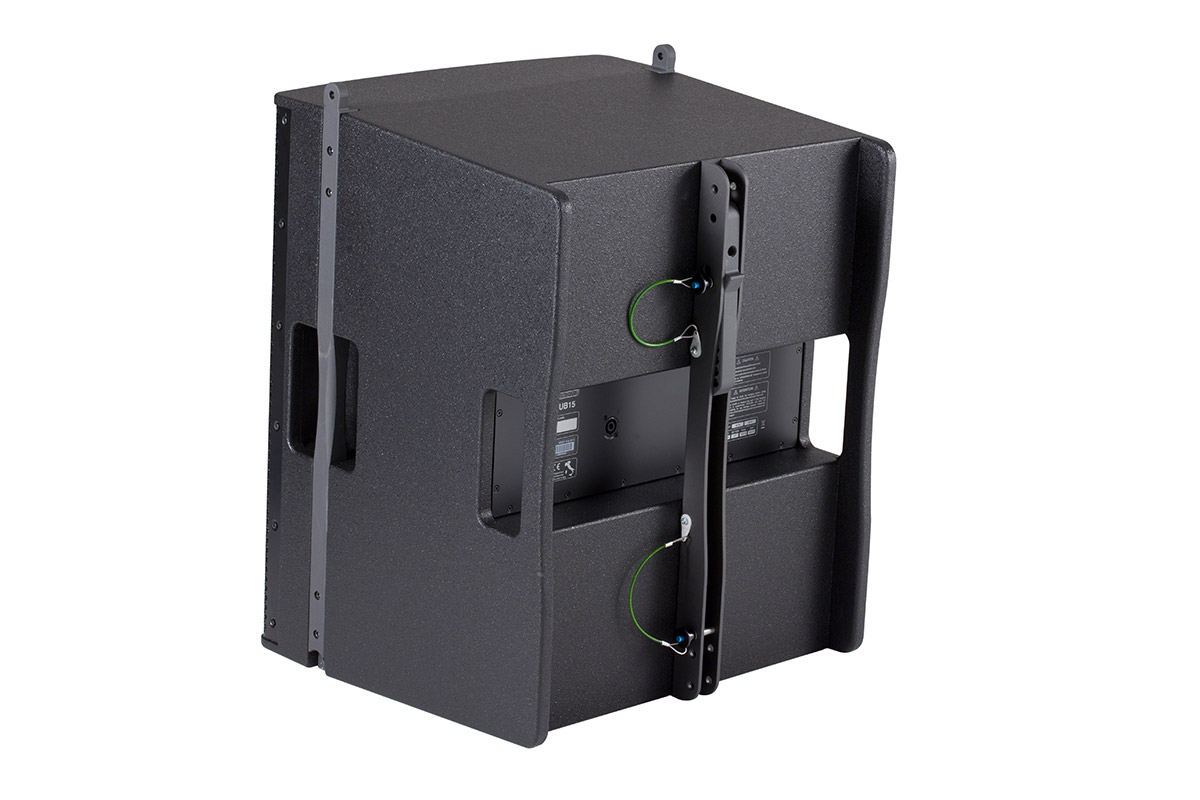

The integrated suspension hardware is a combination of top quality material and treatment in order to ensure extremely high resistance to stress, corrosion and abrasion – resulting in a simple, effective, and light weight rigging system. The angle between the enclosures is selectable from 0° to 8° with a 1° steps and up to six FLYSUB 15 can be flown in the same array. It is possible to create arrays of EIDOS 265 LA and FLYSUB 15, keeping the total array weight under the stated limits.
Features
- Part of the EIDOS 265 LA turnkey solution for mid-sized shows and installation
- Small footprint – low visual impact Single 15″ double-spider woofer
- Trapezoidal design Integrated ultra-light flying hardware
- Low-frequency reinforcement to EIDOS 265 LA array
- Optional repainting option available
Applications
- Low frequency reinforcement as part of the EIDOS 265 LA turnkey solution
- Front of House reinforcement system for medium-sized touring and installed applications – theatres, houses of worship, live clubs
- Excellent and cost-effective solution, together with EIDOS 265 LA, for voice amplification, live music reproduction and program material.
| FREQUENCY RESPONSE (-10 dB) | 35 Hz – 550 Hz |
| SUGGESTED X-OVER | max 200 Hz |
| AVERAGE DISPERSION | Horizontal: Quasi-omnidirectional Vertical: Depending on array configuration |
| IMPEDANCE | 8 Ω (min 6.5 Ω) |
| POWER – W AES | 500 (2000 peak) |
| MAX SHORT-TERM SPL @ 1 m* | 134.5 dB SPL (free-field) 140.5 dB SPL (half-space) |
| LOUDSPEAKERS AND LOADING | 1 x 15″ bass-reflex loaded woofer |
| WEIGHT – SINGLE UNIT | 40 kg (88.2 lb) |
| DIMENSIONS | Height: 733 mm (28 27/32″) Width: 550 mm (21 21/32″) Depth: 546 mm (21 1/2″) |
| * calculated using +10 dB crest-factor signal |
