DVS 12P iSP

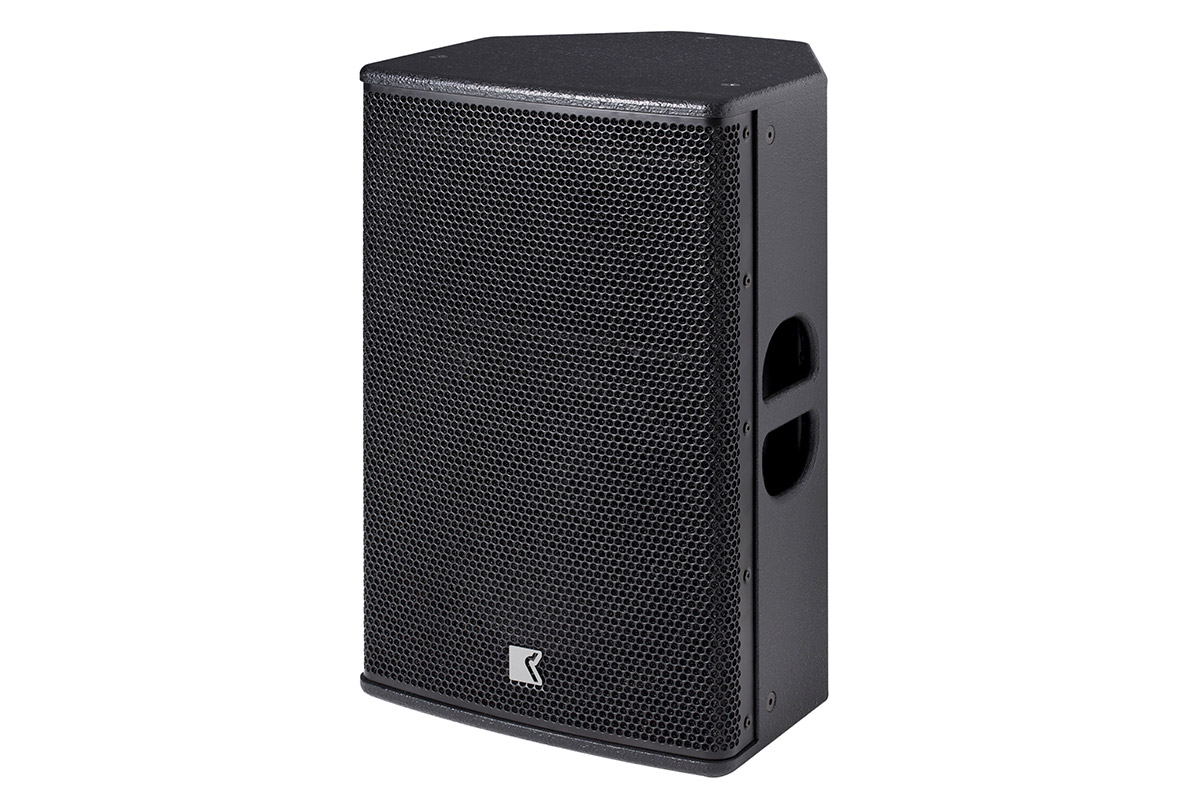

The system’s uniform directivity from 500 Hz to 4 kHz has an average dispersion of 98° horizontal and 88° vertical and average wide-range sound coverage from 500 Hz to 10 kHz is 94° horizontal and 73° vertical. The acoustic reproduced bandwidth is 53 Hz to 20 kHz at -10 dB. The frequency response of the complete system is +/- 3 dB from 71 Hz to 17 kHz. Flown in free-field it has high average wide-range level, producing 133 dB SPL peak. The maximum available power from the 2-channel PWM amplifier module is 750 W EIAJ per channel. The cabinet has twelve M8 threaded mounting points to facilitate both vertical and horizontal flying by means of the appropriate optional hardware. The bottom of the cabinet has a pole mount receptacle, for fitting a standard 35 mm tubular support or tripod stand. The perforated steel grill on the front of the enclosure is acoustically-transparent.

UNIQUE CONTROL POSSIBILITIES

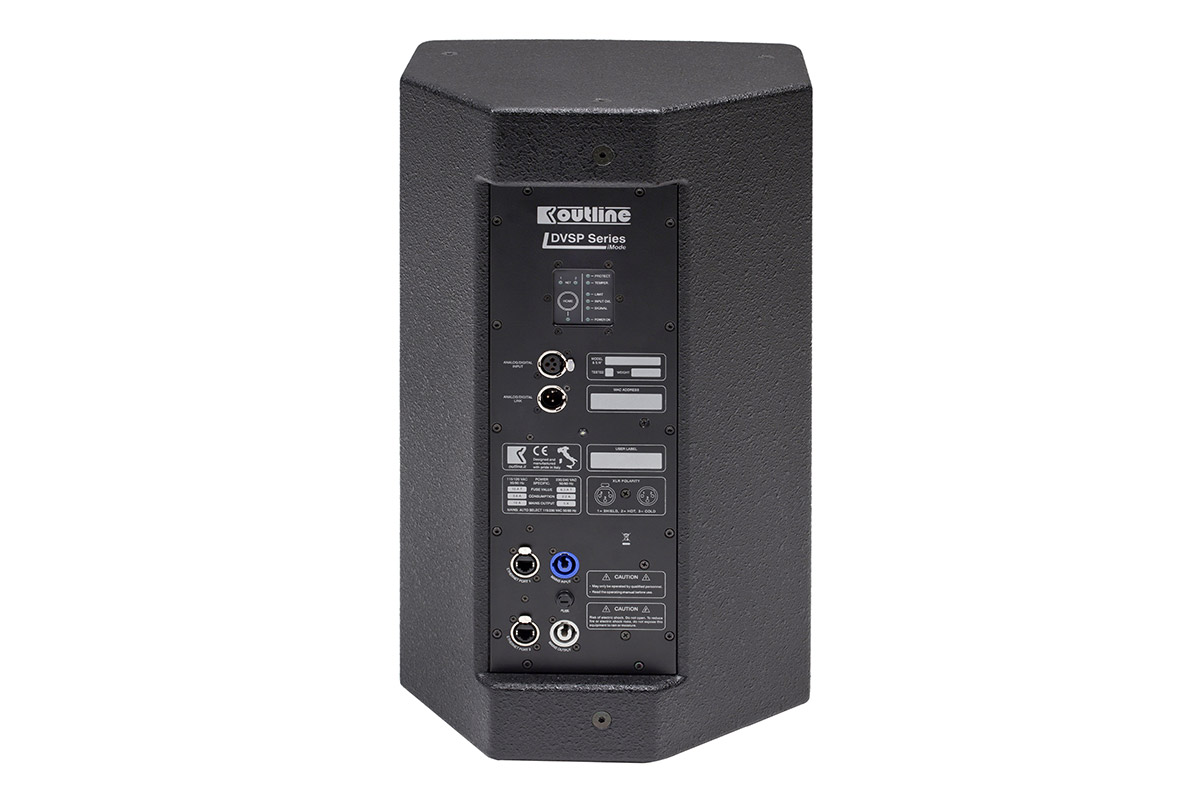

All the DVS iSP series is equipped with Outline’s proprietary iMode technology. Utilised extensively throughout the Outline range, iMode is a truly “intelligent” digital loudspeaker control platform which combines advanced digital signal processing and TCP/IP protocol to provide comprehensive control capabilities and a huge choice of interface devices. Users have real-time control over a series of parameter (levels, delay, eq’s, shelving filters). iMode also allows the user to monitor performance parameters throughout the system (including VU-meters, clip and limiter status, amplifier overheating and protection) by using an iPad with dedicated Outline app. With standard IP-based communication, the iMode platform is truly future-proof, offering control via netbook, smartphone, and many devices yet to appear. iMode operates on a Linux operating system with an Outline-customised kernel, chosen for its extreme stability and compatibility, and providing a robust foundation for iMode’s advanced functions.

PERFORMANCE SPECIFICATIONS

PHYSICAL
