Key Features
- Professional 2-input, 6-output system processor
- All inputs and outputs XLR 3p balanced connectors
- High-end 24-bit AD/DA, 48 kHz converters
- Gain, Parametric EQ, Shelving Filters, Time Delay
- Crossover Filters (Butterworth, Linkwitz-Riley, Bessel), Compression, Limiting
- USB port and RS 485 for simple programming via PC
- Friendly and intuitive control interface/app

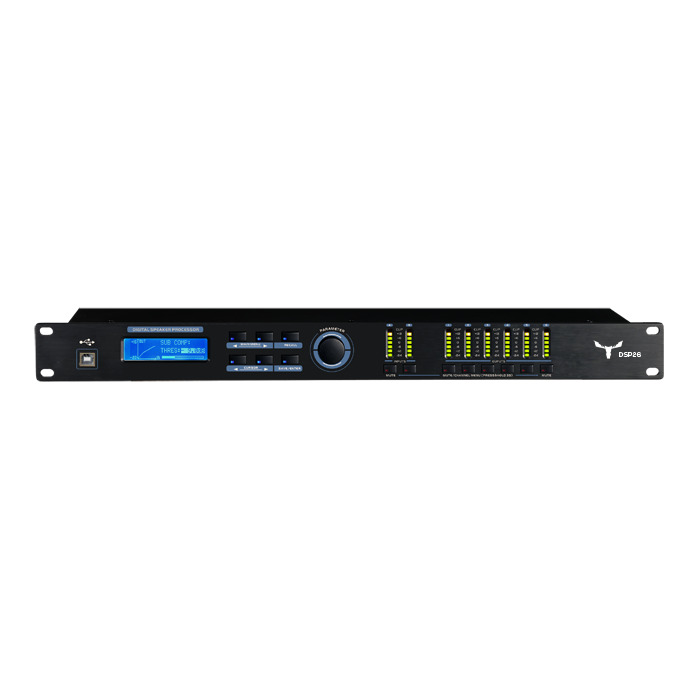

- Convenient front-panel controls for parameter editing and input/output muting
- 30 user-defined internal presets storable
- Switch mode power supply: 90V – 250V AC
- Solid construction for 19” Rack – 1U lightweight enclosure
Tech Specs
| Type | Professional audio system processor | |
| Inputs | 2 (two) | |
| Outputs | 6 (six) | |

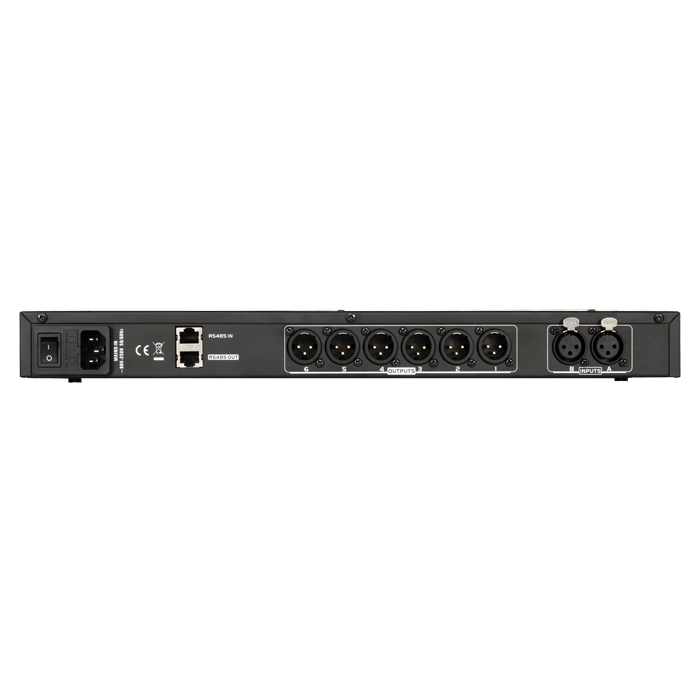

| Connectors | Input: XLR/F 3p balanced Output: XLR/M 3p balanced | |
| Other Features | External: USB Type-B (USB1.1) Ethernet: RS 485 in/out | |
| Other Features | Input impedance: 10kΩ Output Impedance: 50Ω | |
| Other Features | Max input/output level: 19dBu | |
| Other Features | Input/output Gain: -40~12dB, 0,1dB step Input/output Delay: 0ms~1s, step 21us | |
| Other Features | Input/output PEQ: 7-band parametric EQ (1 per channel) | |
| Other Features | EQ Gain: -30~15dB, step 0.1dB EQ Type: PEQ, Low shelf, High shelf EQ Frequency: 19.7~21.9kHz EQ Banwith: PEQ 0.017~4.75 Oct | |
| Other Features | Crossover frequency: 19.7~21.9kHz Crossover Slope: FLAT THRU, 12dB, 23dB, 36dB, 48dB Crossover classification: Butterworth, Bessel, Linkwitz-Riley Crossover Threshold: -20dB~+20dB, step 0.5dBu | |
| Other Features | Compressor ratio: 1.2,1.5, 2, 3, 4, 6, 10, 20, 40, 128:1 | |
| Other Features | Attack time: 1~100ms ,step 0.1ms Release time: 50~1000ms, step 50ms | |
| Other Features | Dynamic Range: 116dB A Weighting | |
| Other Features | CMMR: > 50dB (30Hz~20kHz) | |
| Other Features | Crosstalk: < -100dB | |
| Other Features | Distortion: 0.003% (1kHz, 0dBu) | |
| Other Features | System preset: 10 appearances preset, 30 user programs | |
| Controls | Mains switch (on/off), MUTE push buttons | |
| Connectors | IEC 3p | |
| Operation Voltage | 90~250V AC SMPS, 50–60 Hz | |
| Dimensions (WxHxD) | 1RU space, 158mm depth (6.22in) | |
| Weight | 3.6Kg 7.94lb |
