Camden EC2

A Complete Studio Front End

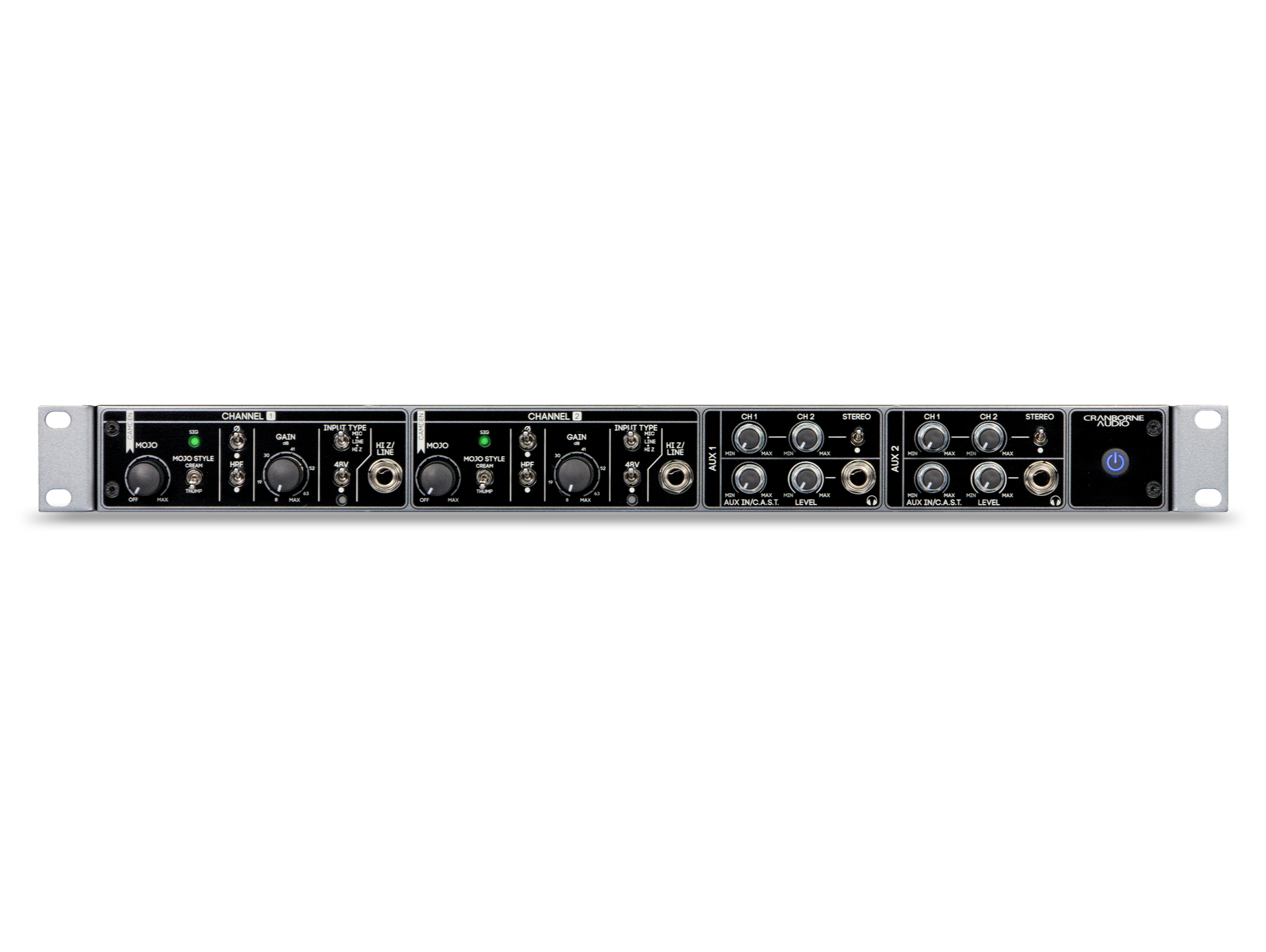

Camden Ec2 is a Two channel 19″, 1u preamp featuring award-winning Camden preamps, Mojo analogue saturation circuits, and dual reference-quality headphone amplifiers with discrete line mixers.

Want a discount? Become a member!
Add to Wishlist
Pobierz

Opis

  • Two discrete mic/line/hi-z preamps featuring the award-winning ‘Camden’ topology from the Camden 500 Preamp and Signal Processor for 500 series
  • Audio performance at the near-theoretical limits of noise, distortion, and phase/frequency linearity at all gain settings
    • EIN: <-129.5dBu, 150 Ohm source, unweighted, <-135.5dBu, Inputs common, unweighted
    • THD+N: <0.00025% (1kHz, 35dB gain, +24dBu out)
    • Intermodulation Distortion: <0.0006% (50Hz and 7kHz, 35dB gain, +20dBu out),
    • Phase Shift: <2.75° (20Hz to 20kHz, 40dB gain), <6° (20Hz to 20kHz, max gain)
    • Freq. Response: ±0.7dB (<1 Hz to >1000 kHz, 35dB gain), ±1dB (<5 Hz to >200 kHz, max gain)



  • Unique 48v status LED
    • 48v LED Lights Orange to indicate voltage charging or dissipating to prevent damage to ribbon microphones and to ensure voltage is fully charged before use
    • 48v LED lights RED when voltage is fully charged and ready to use



  • Two instances of ‘Mojo’ analogue saturation circuits with variable control, true bypass, and 2 discrete styles – Thump and Cream
    • Thump excites low-end content by boosting lower odd/even harmonics from a range of 160Hz to 20Hz and below
    • Cream boosts odd/even harmonics whilst also reducing the amplitude of the fundamental frequencies and applying typical transformer-style transient taming



  • Two discrete headphone mixers with independant CH 1, CH 2, and Aux Input level controls
    • Monitor the Camden preamps directly with headphones during mic placement to find the sweet spot of the instrument/source

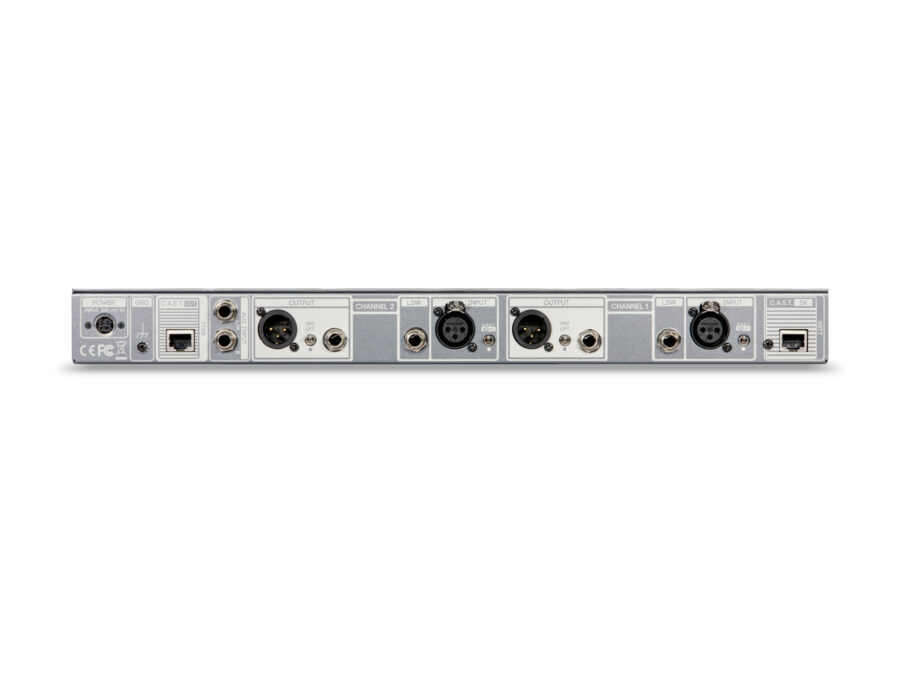

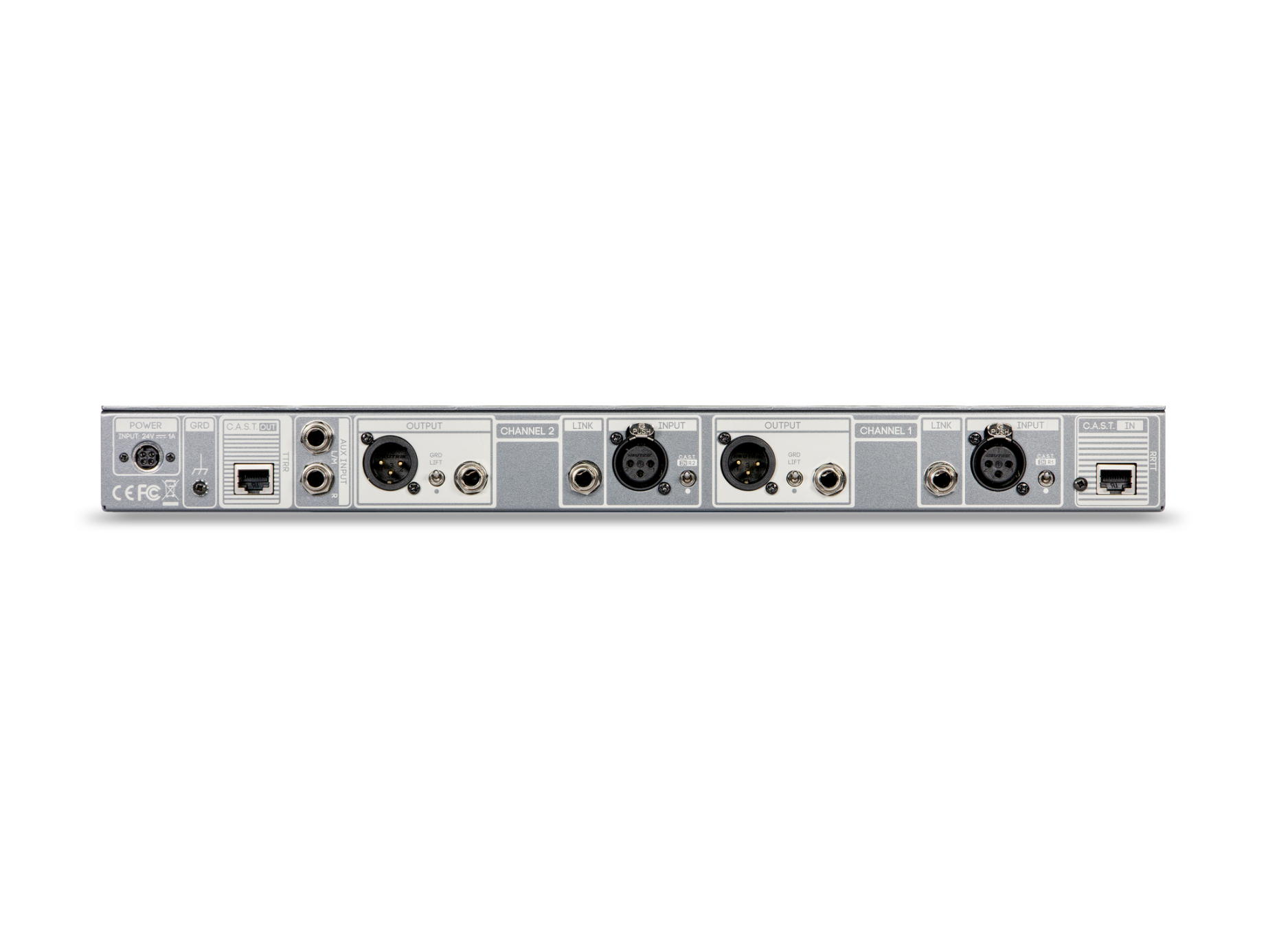

    • Create zero-latency artist mixes by combining the Camden preamps with external playback from Aux Input 14/” jacks on Camden EC2’s rear panel
    • Use the reference grade headphone amps for critical listening by sending stereo mixes from the interface into the Aux input and monitoring directly using Camden EC2’s headphone outputs
    • ‘Stereo’ switch to pan CH1 & CH2 left and right in each headphone mix for true stereo monitoring



  • Two reference-quality, high-powered headphone amplifiers
    • Freq. Response: <±1dB, <1 Hz to >100 kHz
    • Output Impedance: 0.33 Ohms
    • THD: 0.0003%, 1kHz
    • Output Wattage: 2x250mW @ 600 Ohm, 2x450mW @ 220 Ohm, 2x250mW @ 100 Ohm



  • Balanced XLR outputs and impedance balanced ¼” jack outputs for maximum connectivity into audio interfaces and other downstream equipment



  • Dedicated Impedance balanced 1/4″ Jack Link outputs for true instrument DI functionality and splitting instrument inputs to balanced or unbalanced amplifiers and effects



  • C.A.S.T. OUT port for connecting Camden EC2 into 500R8/500ADAT
    • Transmit Camden EC2’s preamps directly into 500R8 and 500ADAT’s 500 series modules inputs for recording/processing
    • Receive a stereo mix generated from 500R8/500ADAT and monitor using Camden EC2’s headphone mixers
    • All managed and distributed via a single shielded Cat 5e, Cat 6, or Cat 7 cable



  • C.A.S.T. IN port for connecting N22/N22H Cat 5 snakes to relocate Camden EC2 I/O elsewhere in the studio
    • Receive 2 mic/line signals from N22/N22H directly into the preamp inputs of Camden EC2
    • Transmit Camden EC2’s Aux 1 headphone mix into N22/N22H for direct monitoring by the musician
    • All managed and distributed via a single shielded Cat 5e, Cat 6, or cat 7 cable



  • External high-current 24v, 1.25a power supply with latching connector



All specifications are typical performance unless otherwise noted. All specifications are subject to change at any time. Tested with Audio Precision APx555.
Preamp
Test Signal PathAPx555 (Line Out) – Input 1 – Line Output – APx555 (Line In)
Input ImpedanceMic= 8.9 kOhms 48v Off, 5.4 kOhms 48v ON,

Line = 24.3 kOhms,

Hi-Z= 1.5 MOhm Unbalanced, 3 MOhm Balanced

Max Input LevelMic = +17.6dBu (<0.003% THD),

Line = +26.5dBu (<0.02% THD),

Hi-Z = +24dBu (<0.02% THD)

Minimum GainMic= 8dB, Line = 0dB, Hi-Z = 3dB
Maximum GainMic = 68dB, Line = 60dB, Hi-Z = 63dB
Equivalent Input Noise (EIN)<-129.5dBu (150 Ohm source, unweighted),

<-131dBu (150 Ohm source, A-weighted),

<-135.5dBu (Inputs common, unweighted)

Frequency Response±0.7dB (<1 Hz to >1000 kHz, Min Gain),

±0.7dB (<1 Hz to >1000 kHz, 35dB Gain),

±1dB (<1.5 Hz to 900 kHz, 63dB Gain),

±1dB (<5 Hz to >200 kHz, Max Gain)

Phase Shift<2.75° (20Hz to 20kHz, 40dB Gain),

<4° (20Hz to 20kHz, 63dB Gain),

<6° (20Hz to 20kHz, Max Gain)

THD+N<0.00025% (1kHz, 35dB Gain, +24dBu out)
Intermodulation Distortion<0.0006% (50Hz and 7kHz, 35dB gain, +20dBu out),

<0.0005% (50Hz and 7kHz, 35dB gain, +15dBu out)

Hi-Pass Filter (HPF)80Hz, -3dB, 12dB/Oct
CMRR>70dB, typ >85dB, 35dB gain, 10-20kHz, 100mV Common mode
Slew Rate20V/uS, 35dB gain, +25dBu out
48v LED ThresholdsOff = 48v Off, voltage fully discharged

Amber = 48v voltage charging/discharging

Red = 48v fully charged

Signal LED Meter ThresholdsBlue = -20dBu

Green = -12dBu

Amber = +21dBu

Red = +24dBu

Max Output LevelBalanced XLR = +27.5dBu (<0.002% THD, 30dB Gain)

Impedance Balanced ¼” Jack = +21.5dBu (<0.002% THD, 30dB Gain)

Output ImpedanceBalanced XLR = 150 Ohm

Impedance Balanced 1/4” Jack = 150Ohm Balanced, 75 Ohm Unbalanced

Link Max Output LevelImpedance Balanced 1/4” Jack = +21.8dBu (<0.006% THD)
Link Output ImpedanceImpedance Balanced 1/4” Jack = 75 Ohm Unbalanced, 150 Ohm Balanced (Buffered Output)
Headphone Amplifier
Test Signal PathAPx555 (Line Out) – AUX Input – Headphone Output – APx555 (Line In)
Frequency Response-1dB, <1Hz to >70kHz
THD<0.0006% (-104.4dB) @ +20dBu, 1kHz, A-weighted, 300 Ohm load
THD+N<0.00085% (-101.4dB) @ +20dBu, 1kHz, A-weighted, 300 Ohm load
Output Impedance0.33 Ohms
Output Wattage250mW x 2 @ 600 Ohms, 1kHz
650mW x 2 @ 220 Ohms, 1kHz
1.21W x 2 @ 100 Ohms, 1kHz
500mW x 2 @ 32 Ohms, 1kHz
Dynamic Range114.5dB A-weighted, AES17 method, 20Hz – 20kHz, 300 Ohm load
Noise Floor-93.5dBu A-weighted, 20Hz – 20kHz, 300 Ohm load
Power
AC Requirements100V – 240V AC, 50 – 60 Hz
Total Power Consumption24v, 1.25A DC, 30W
Environmental
Operating Temperature+1 to 35 degrees Celsius
Storage Conditions-20 to 50 degrees Celsius
Dims/Weights
Unit
Width481mm (19″) (Rackmount)
Height44.45mm (1.75″) (1u)
Depth240mm (9.5″)
Unit Weight2.8kg (6.2lb)
Shipping Carton
Width600mm (23.6″)
Height120mm (4.7″)
Depth350mm (13.8″)
Carton Weight4.1kg (9lb)
