Opis

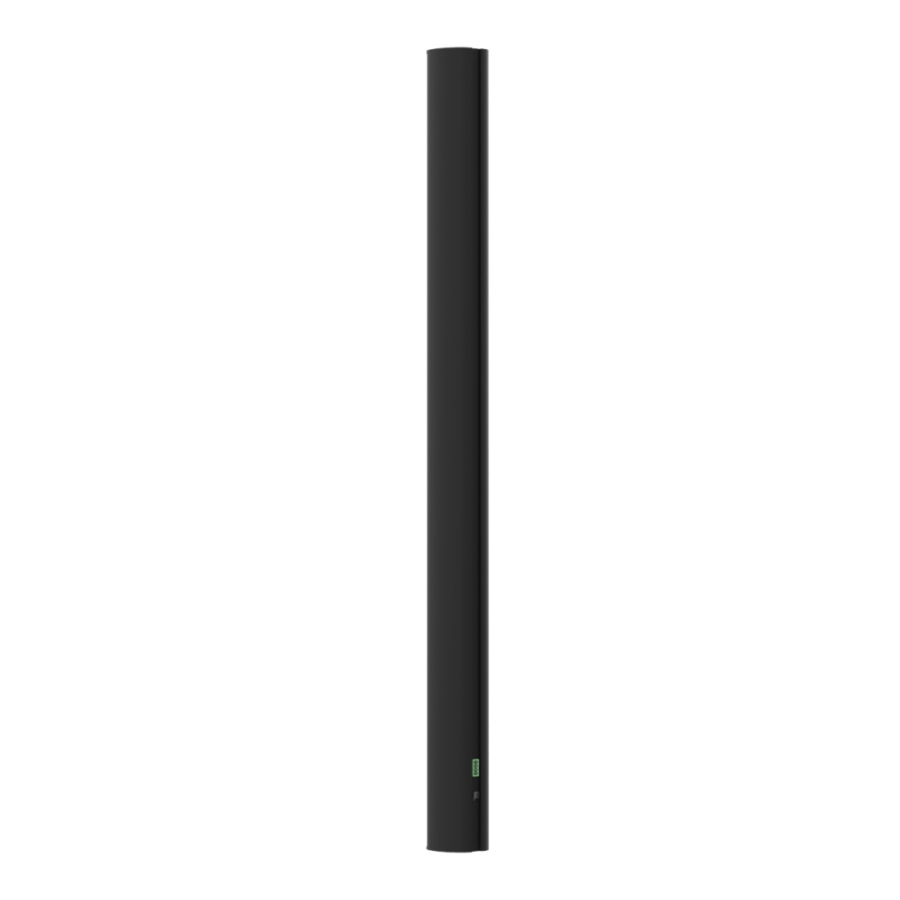

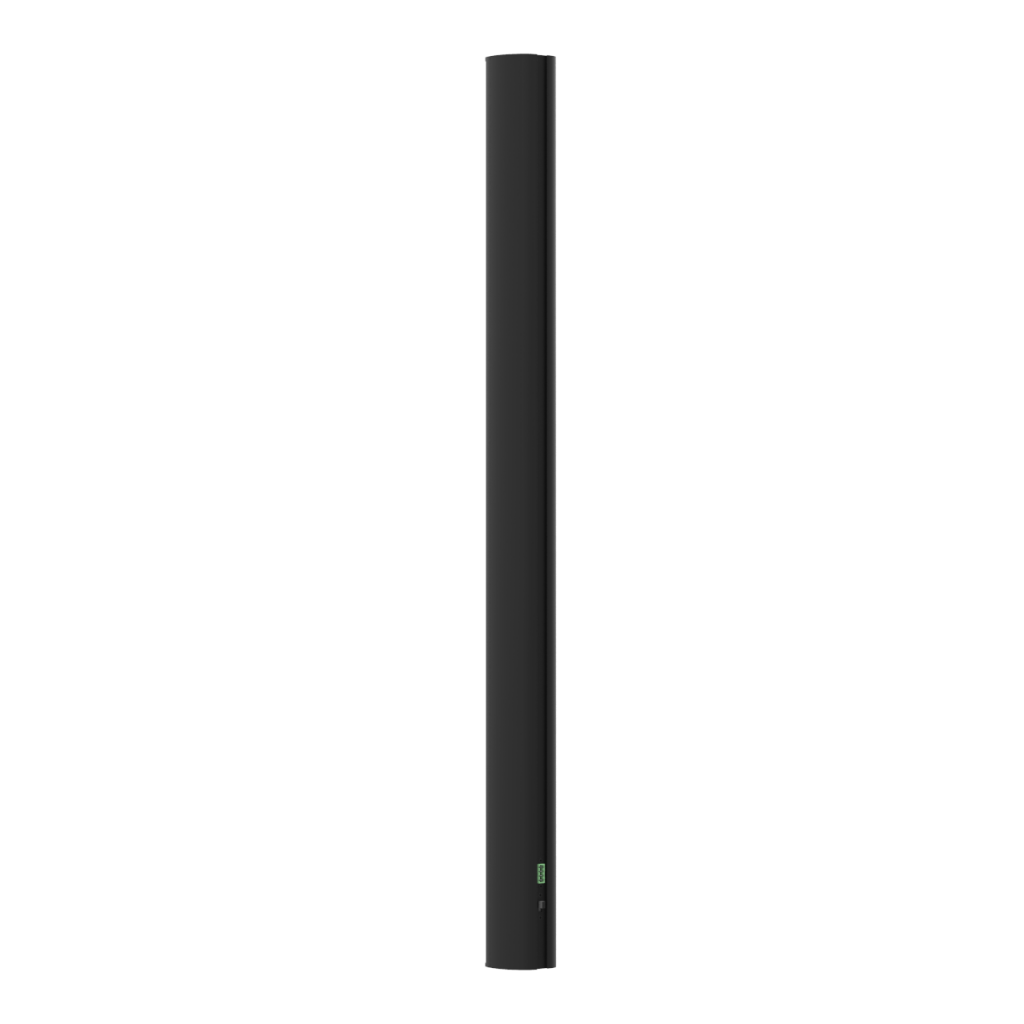

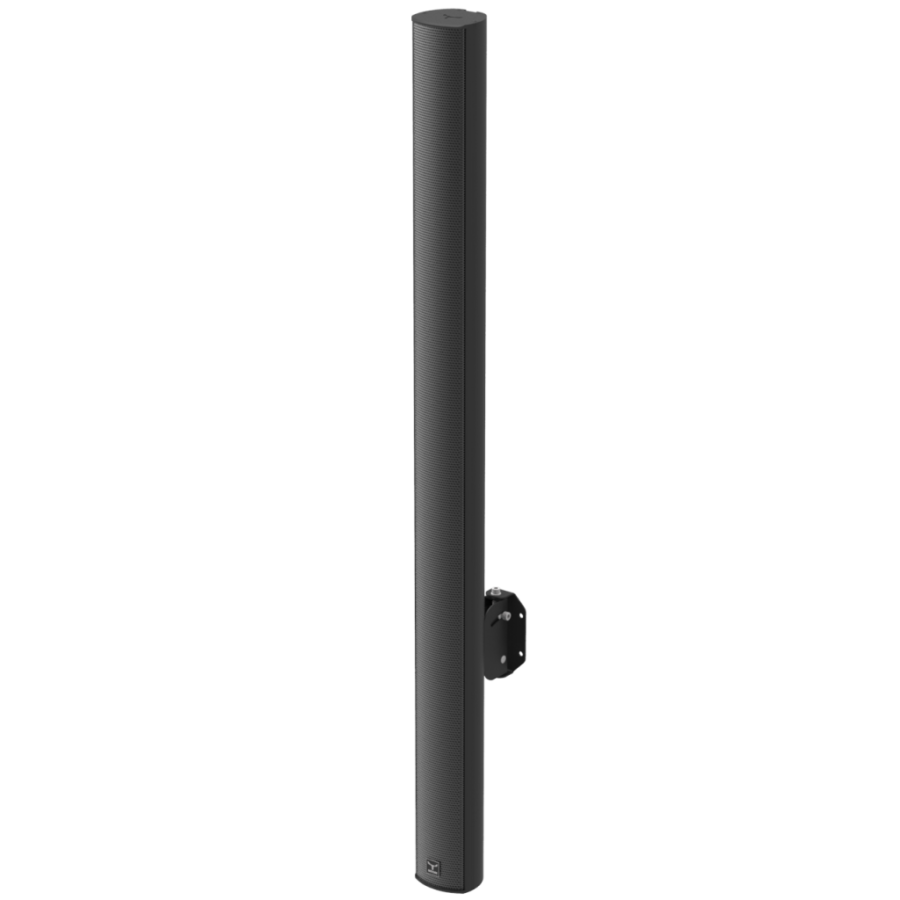

All three models incorporate a vertical array of 2” FR transducers (0.75in VC) with Neodymium magnet and rubber surround that assure linearity and consistent power handling. The cone is made of weather proof treated paper. There is built-in internal passive crossover (low impedance) designed to deliver neutral and natural sound and a 100V line transformer (high impedance) that can be easily selected on the rear panel through a switch. The input is made of a 4-pin (in/out) Phoenix Euroblock speaker terminal parallel-connected for an easy and flexible installation regardless the surroundings.
Key Features
- Public address installation speaker
- Ultra slim and elegant AL profile
- 16x 2” FR (0.75in VC) Neodymium transducers
- Euroblock speaker terminal in/out
- Suitable for 16ohm low impedance installations
- Suitable for 100V high impedance installations (switch)
- Solid and elegant aluminum construction
- Custom perforated metal grille
- Textured powder coating finishing
- Wall mount bracket available, 2-axis adjustable
Tech Specs
| Type | Column speaker | |
| Enclosure Design | Bass reflex | |
| Power Output (RMS) | 280W (RMS) 400W (Program) 540W (Peak) | |
| Frequency Range | 170Hz – 19kHz (-6dB) | |
| Nominal Impedance | 16ohm low impedance 100V high impedance User-selectable | |
| Transducer Type | 16x 2” FR (0.75in VC) Neodymium transducers | |
| Dispersion | 120°x60° (HxV) | |
| Max. SPL (peak) | 124dB | |
| Connector | Euroblock terminal in/out | |
| Construction | Extruded aluminium profile, textured powder coating Black, White, Custom RAL textured | |
| Grille | Custom perforated metal grille with acoustic fabric | |
| Feature | C162WX – IP54 rated version Stainless steel grille, screws and cable gland Special protective film on the grille | |

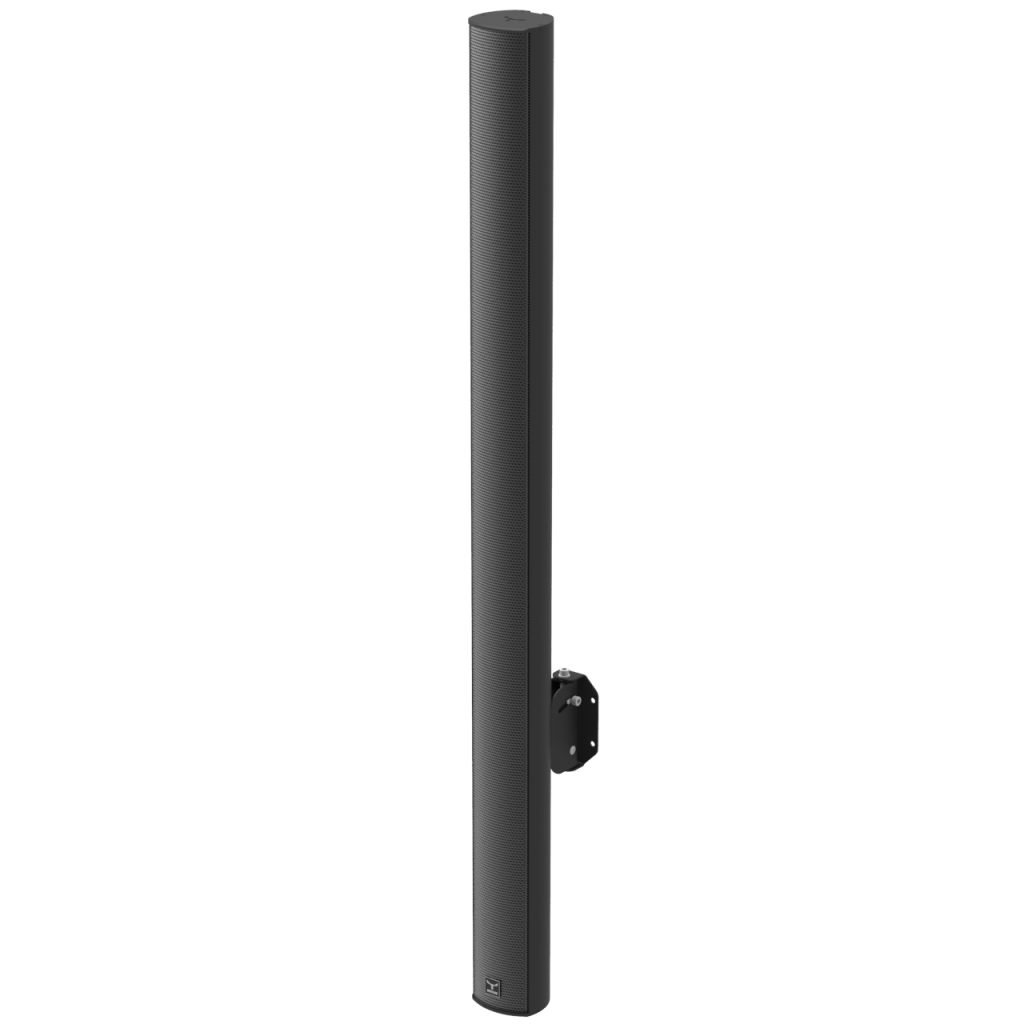

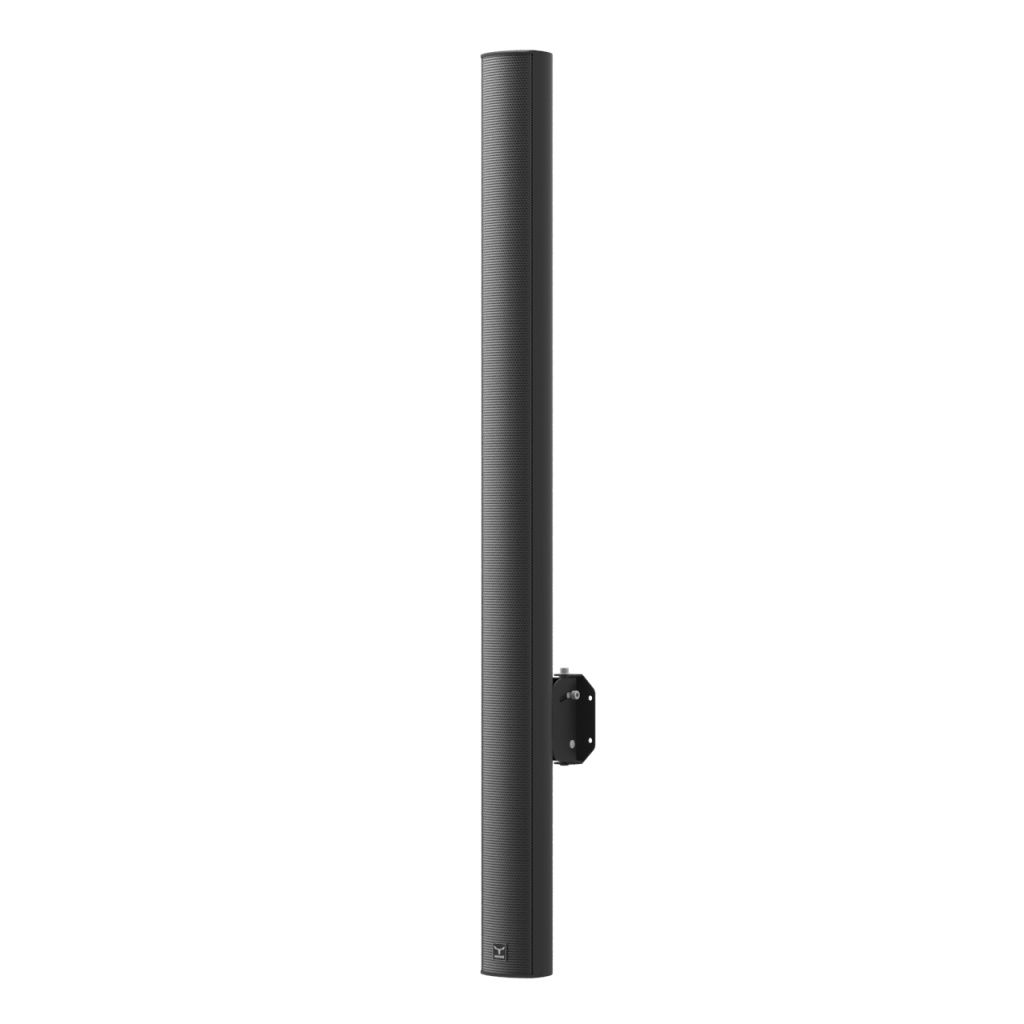

| Installation / Rigging / Flying | Supplied with 2 WNF23 brackets Optional: WSI23, 2-axis adjustable bracket available | |
| Dimensions (WxDxH) | 80x76x1068mm 3.15×2.99×42.05in | |
| Weight | 5Kg 11.02lb |
