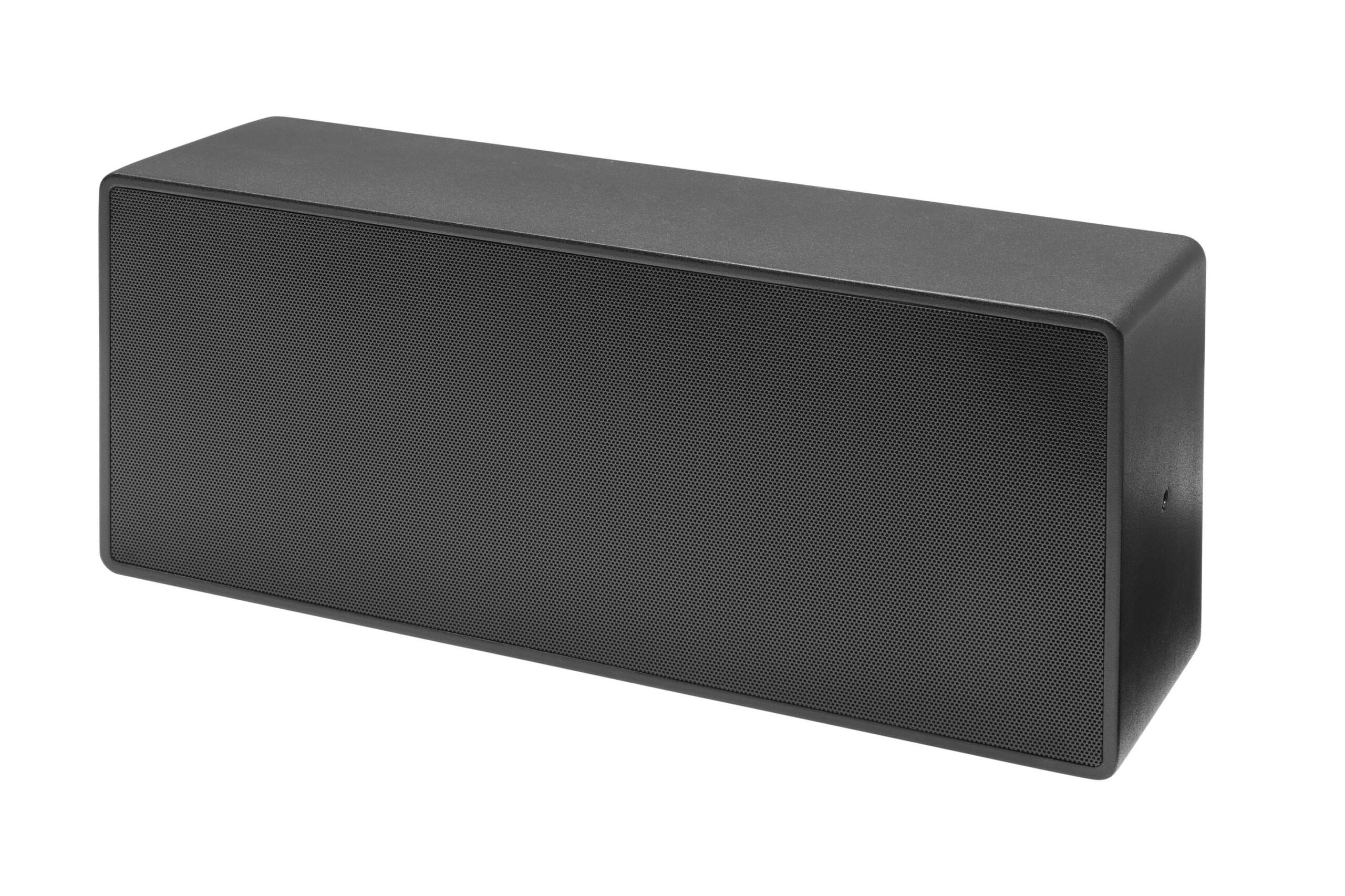

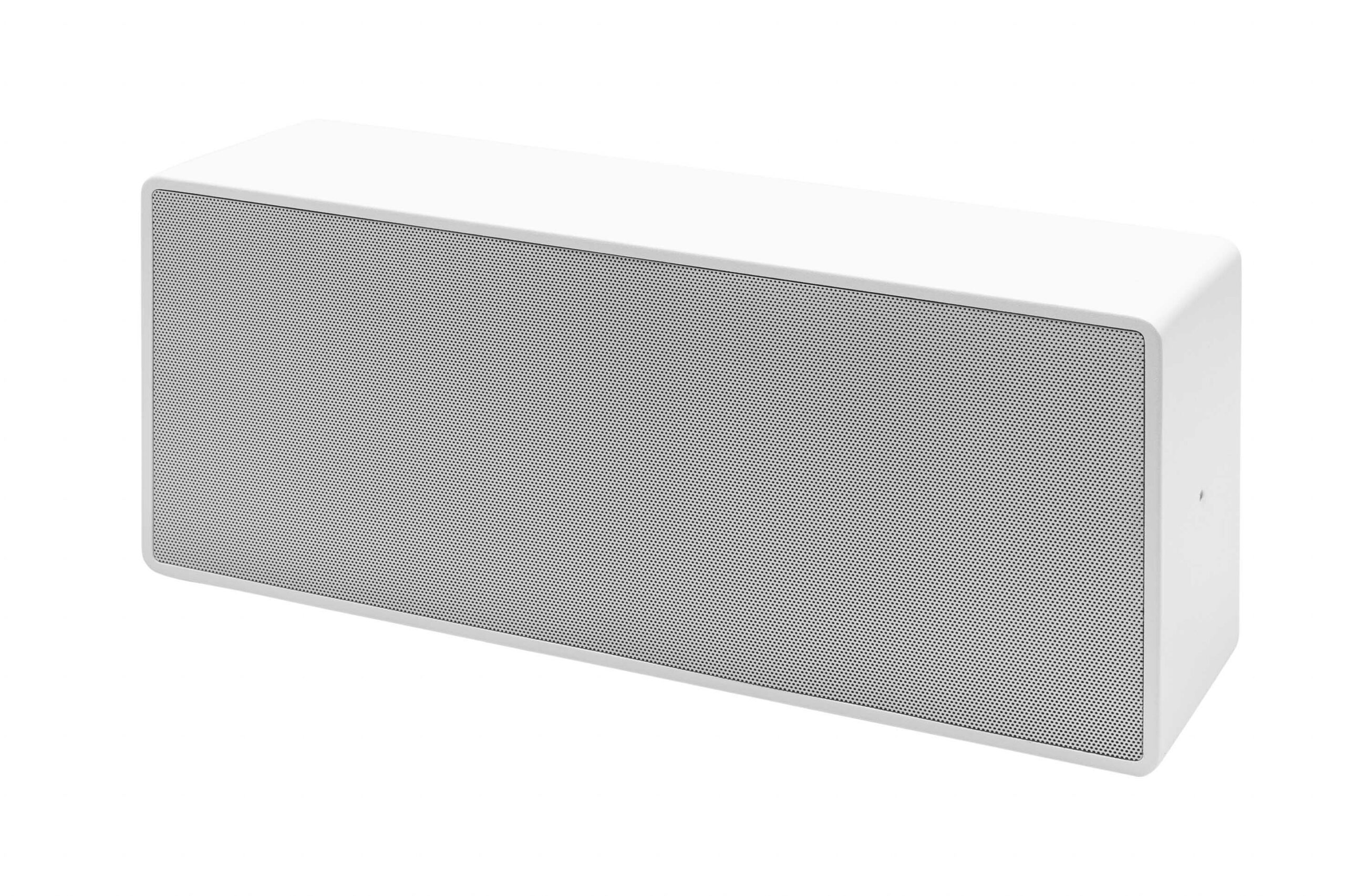

Its design features a 6” high-power woofer and a passive radiator (114 dB max SPL down to 42 Hz), offering the advantage of being able to faithfully reproduce the lowest frequencies while keeping an ultra-low-profile dimension to match any architectural need. The subwoofer can be used either floor standing or suspended with a dedicated bracket (sold separately), providing the AS6 with an even more versatile installation option.
Made of HCDF (Hydrophobic Compact Density Fiber), by default it is coated with black or white textured polyurethane paint that ensures toughest places operation and a very stylish and discreet look. While the grill, made of galvanised steel, features an epoxy powder coating to protect the front of the loudspeaker.
Additionally, custom RAL colour options are available for perfect and seamless integration with any venue layout.
PERFORMANCE SPECIFICATIONS
| Frequency Response (-10 dB) | 42 Hz – 350 Hz |
| Nominal Dispersion | Quasi-omnidirectional |
| Impedance (Nom / Min) | 8 Ω / 8.6 Ω |
| Watt AES (Continuous / Peak) * | 150 / 1500 W |
| Maximum SPL Output ** | 114 dB SPL |
| * according to AES2-2012 (+12 dB) standard | |
| ** calculated using +12 dB Crest Factor signal (AES2-2012), Half space |
PHYSICAL
| Components | 6″ woofer + 6″ passive radiator |
| Connector | 4-pin Euroblock |
| Cabinet Material | HCDF (Hydrophobic Compact Density Fiber) |
| Cabinet Finish | Black or White textured polyurethane paint (overpainted RAL colors on request) |
| Grill | Epoxy powder coated steel grill |
| Installation points | 2 x M6 |
| Height | 200 mm – 7 7/8” |
| Width | 450 mm – 17 6/8” |
| Depth | 120 mm – 4 6/8” |
| Weight | 6.5 kg – 14.3 lb |
