Opis

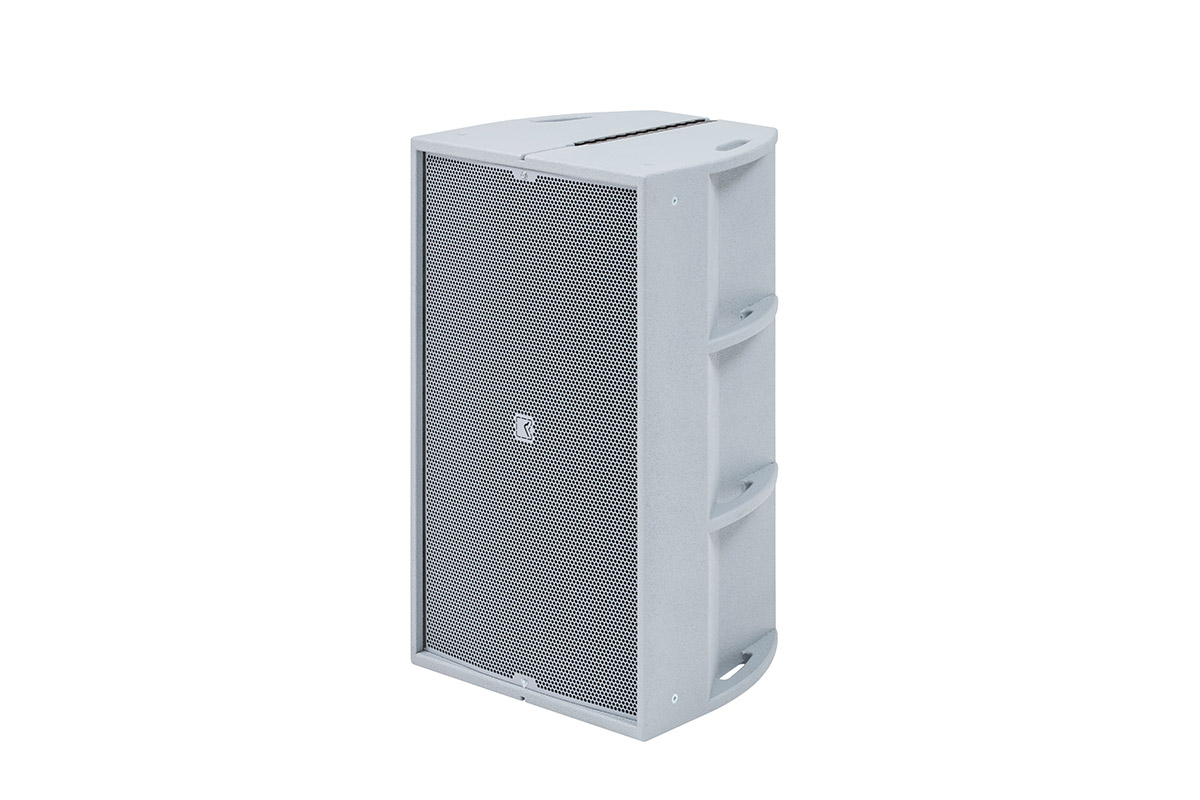

Outline’s high quality coaxial driver gives excellent sonic performance, increased timbre quality and high power handling characteristics. It is loaded by a proprietary moulded waveguide, which is coaxial to the 15” mid-woofer and provides low-pass acoustical loading on the woofer, increasing the efficiency in its usable bandwidth. Uniquely configured as a ‘two-and-a-half’ way system both electrically and acoustically, Arena 215CX delivers audio performance approaching a three-way design with extended low frequency, outstanding sound quality and remarkable SPL. Thanks to Outline’s exclusive internal crossover designs, the enclosure can be driven by a single channel of amplification, while it is also possible to use two amplifier channels to drive the low and coaxial sections separately.
PERFORMANCE SPECIFICATIONS
ARENA 215 CX
| Nominal Dispersion | 80° x 60° (H x V) |
| Continuous SPL Output * | 130 dB SPL |
| Maximum SPL Output * | 140 dB SPL |
| Frequency Response -10 dB | 50 Hz – 20 kHz |
| Operating configuration | Mono-/Bi-amplified |
| Impedance Low (Nom/Min) | 8 Ω / 6.8 Ω |
| Impedance Coaxial (Nom/Min) | 8 Ω / 7.2 Ω |
| Watt AES Low (Continuous/Peak) | 600 W / 2400 W |
| Watt AES Coaxial (Continuous/Peak) | 500 W / 2000 W |
* calculated using +10 dB Crest Factor signal @ 1 m, Free Field
PHYSICAL
ARENA 215 CX
| Component Low | 1 x 15” bass-reflex loaded woofer |
| Component Mid-Low (coaxial) | 1 x 15” bass-reflex loaded woofer |
| Component High (coaxial) | 3” coaxial rotatable moulded horn-loaded compression driver |

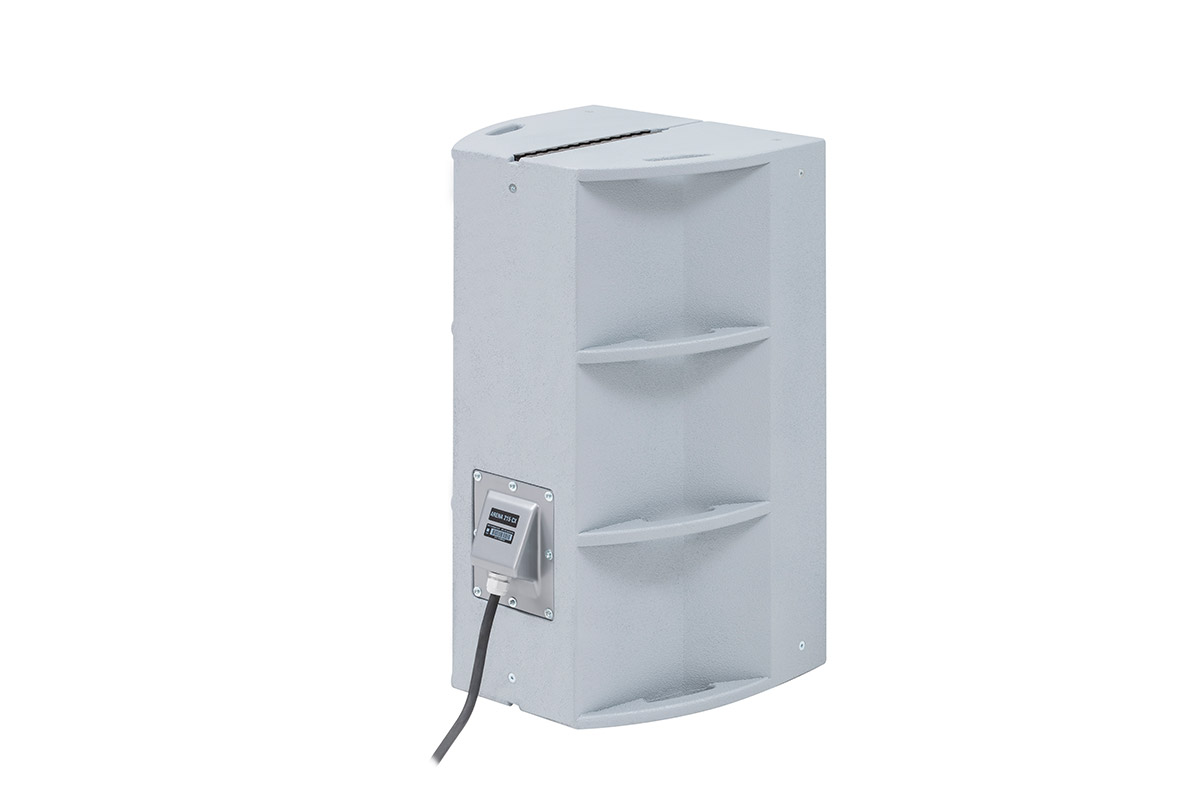

| Connectors | 8 Pole parelled barrier strip |
| Cabinet Material | Baltic birch plywood |
| Cabinet Finish | WP elasto-plastic coated |
| Grille | Epoxy powder coated |

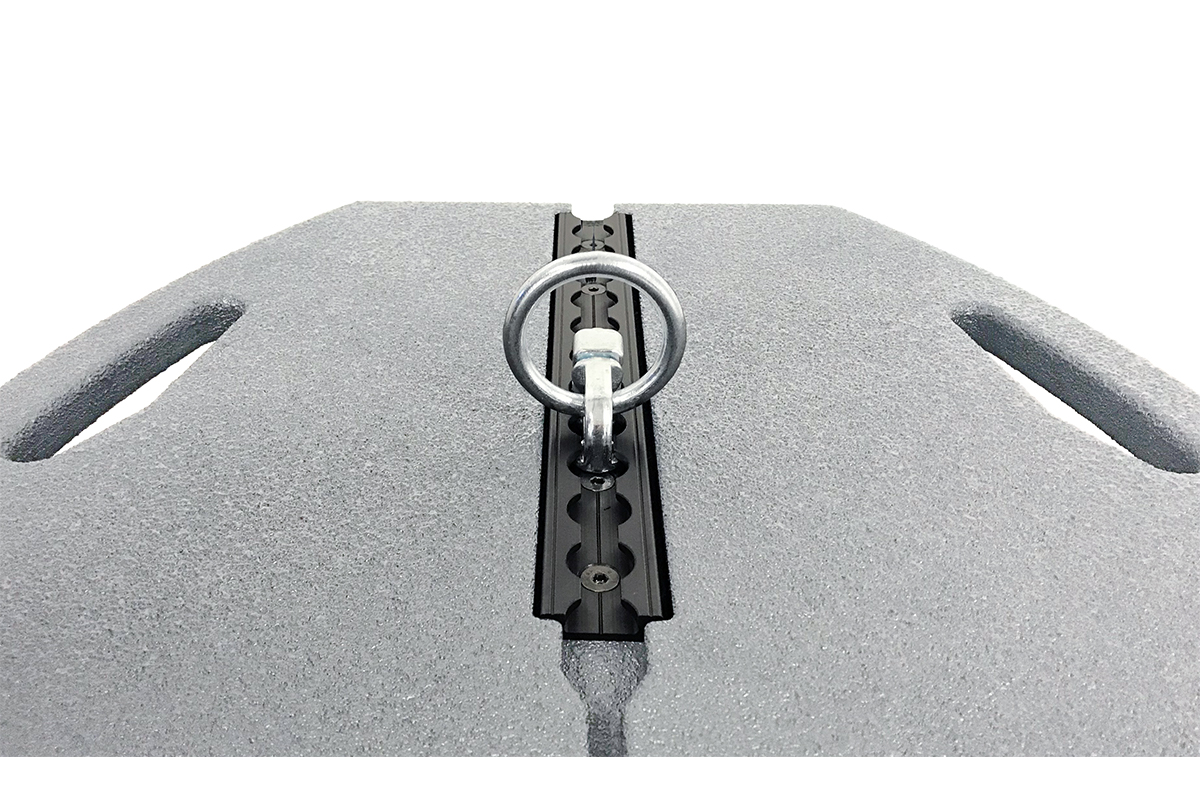

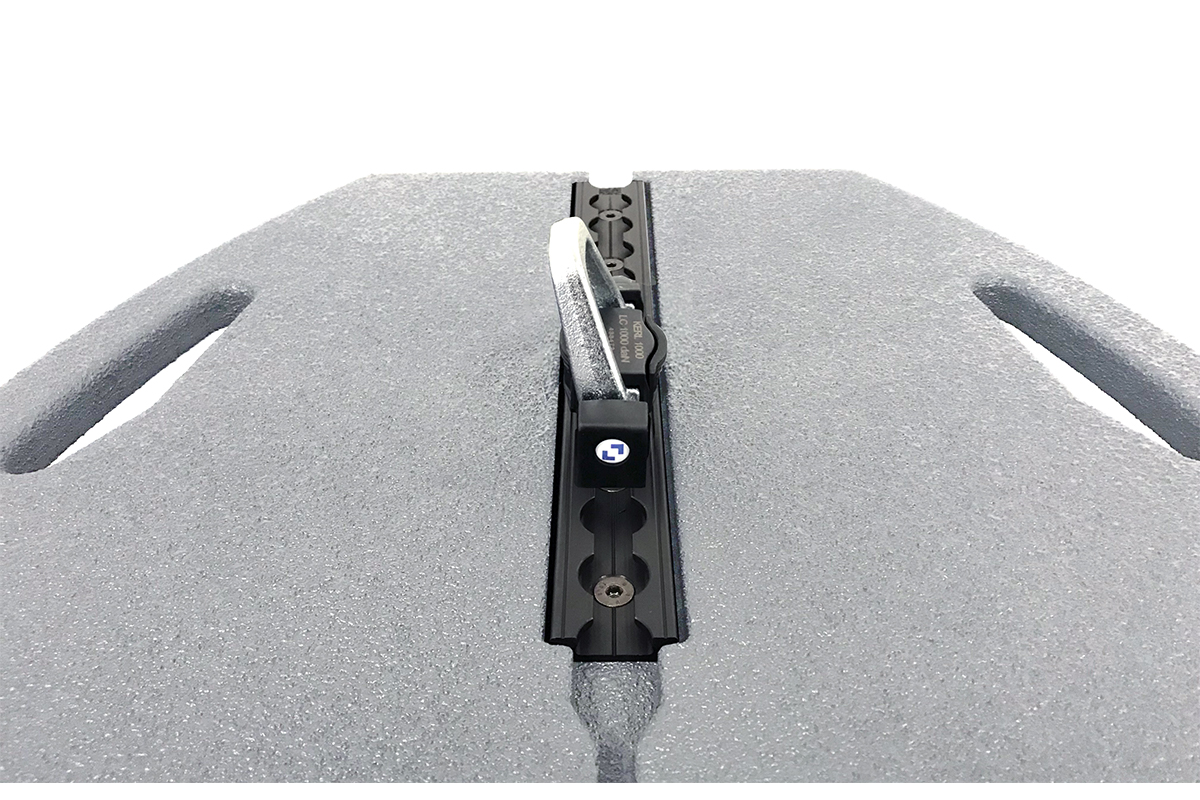

| Installation Points | 11 x M8 threaded points Smart Fix Rail system |
| Pole mount | 35 mm socket |
| Handles | 8 handles |
| Height | 940 mm – 37” |
| Width | 480 mm – 18 7/8” |
| Depth | 480 mm – 18 7/8” |
| Weight | 42 kg – 92.6 lb |
