Opis

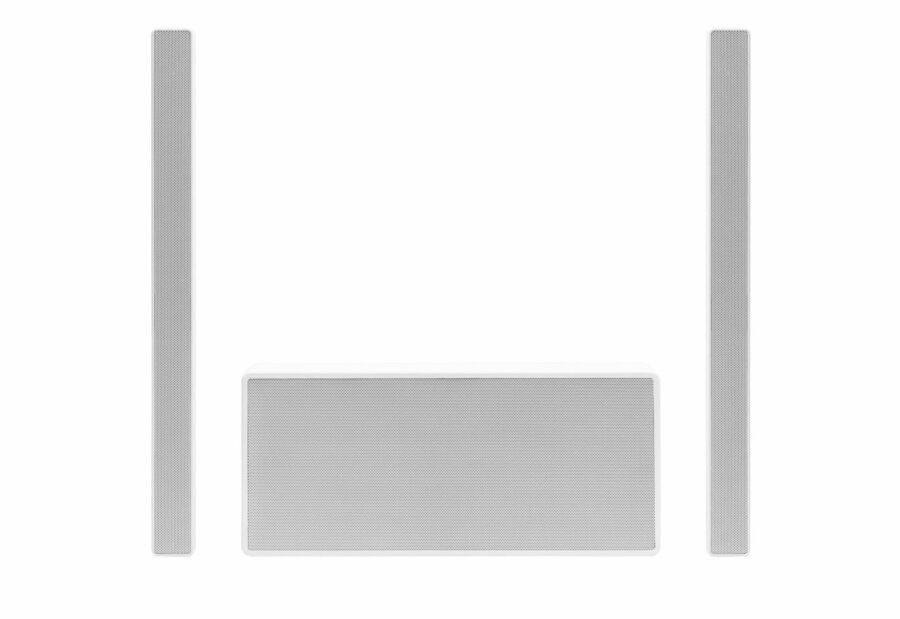

This tiny, modular, externally powered loudspeaker provides the best performance when installed on a flat surface. It features eight 1.3” neodymium magnet driver and one 0.7” treated silk dome tweeter producing a wide nominal dispersion and a maximum SPL peak of 112 dB.
With a nominal impedance of 16 ohms and requiring only one single channel, it is possible to deploy up to eight Ai81 with just one single amplification channel on a parallel cost-saving installation solution.
Also, a passive crossover (manufactured with top-grade components) takes care to split the LF and HF and provides single and double protection for the drivers (LF and HF respectively).
All the above enclosed in a compact, refined and elegant design weighting just 0.85 kg (1.85 lb).
The cabinet, in HCDF (Hydrophobic Compact Density Fiber), is coated with polyurethane paint ensuring the correct operation even in the toughest places; while the grill, made of galvanized steel, features an epoxy powder coating. Custom RAL colour options are available to perfectly match any architectural layout.
PERFORMANCE SPECIFICATIONS
| Frequency Response (-10 dB) | 300 Hz – 20 kHz |
| Horizontal Dispersion | 160° |
| Vertical Dispersion | 40° |
| Impedance (Nom / Min) | 16 Ω / 16.6 Ω |
| Watt AES (Peak) * | 320 W |
| Maximum SPL Output ** | 112 dB SPL |
| * according to AES2-2012 (+12 dB) standard | |
| ** calculated using +12 dB Crest Factor signal (AES2-2012), Half space |
PHYSICAL

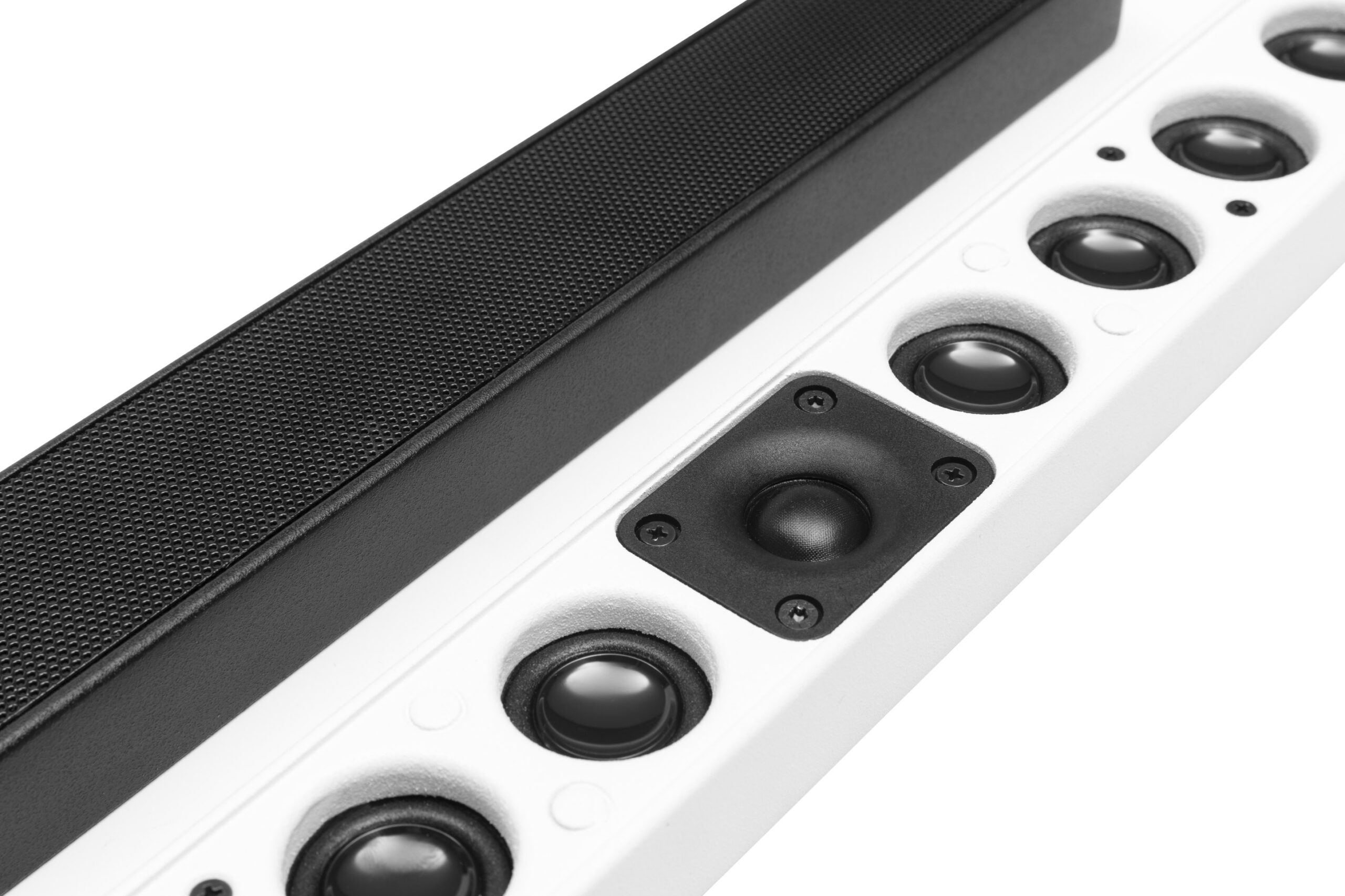

| Component Low | 8 x 1.3” NdFeB Full Range driver |
| Component High | 0.7″ treated silk dome tweeter |
| Connector | 2-pin Euroblock |
| Cabinet Material | HCDF (Hydrophobic Compact Density Fiber) |

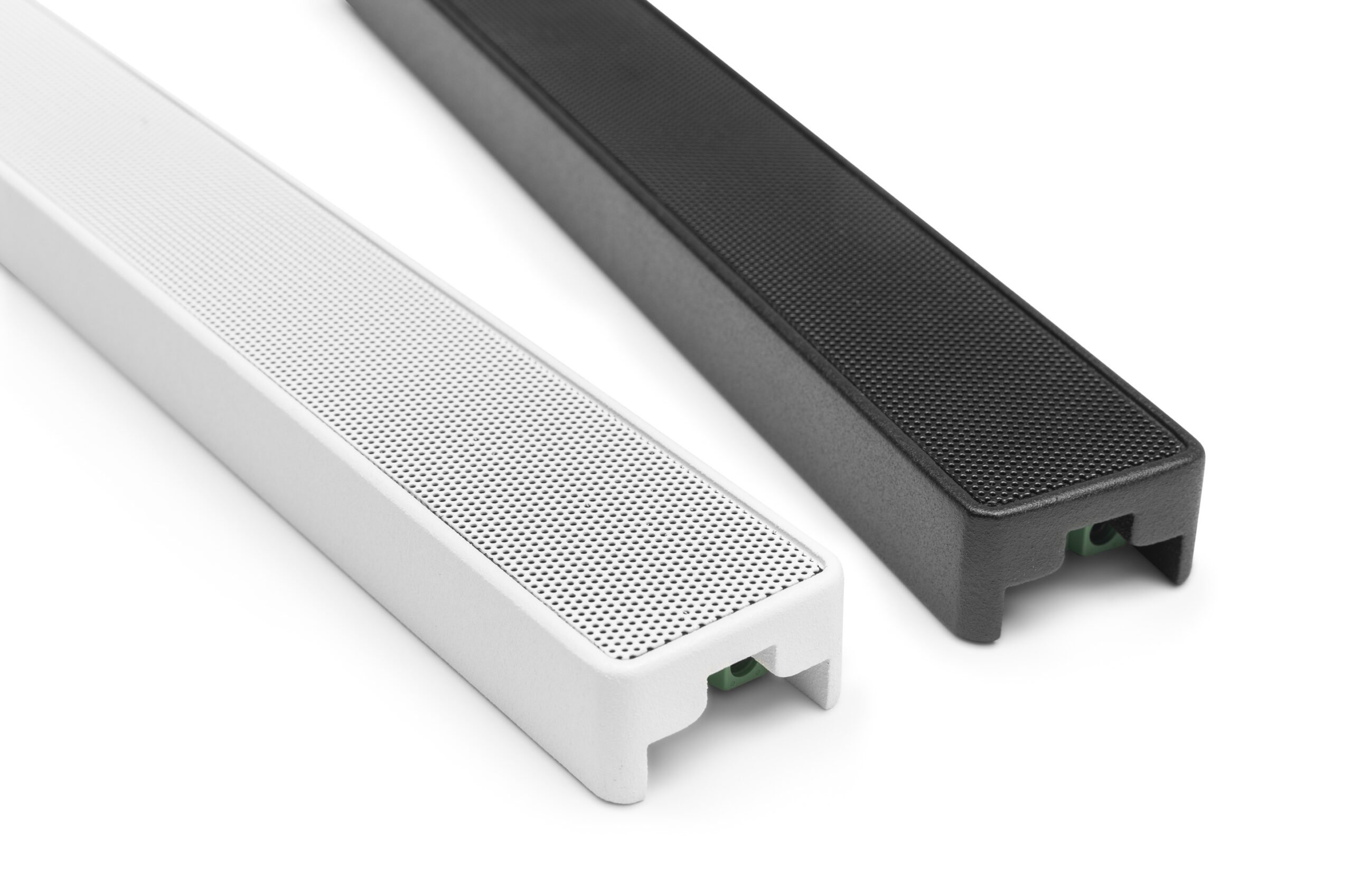

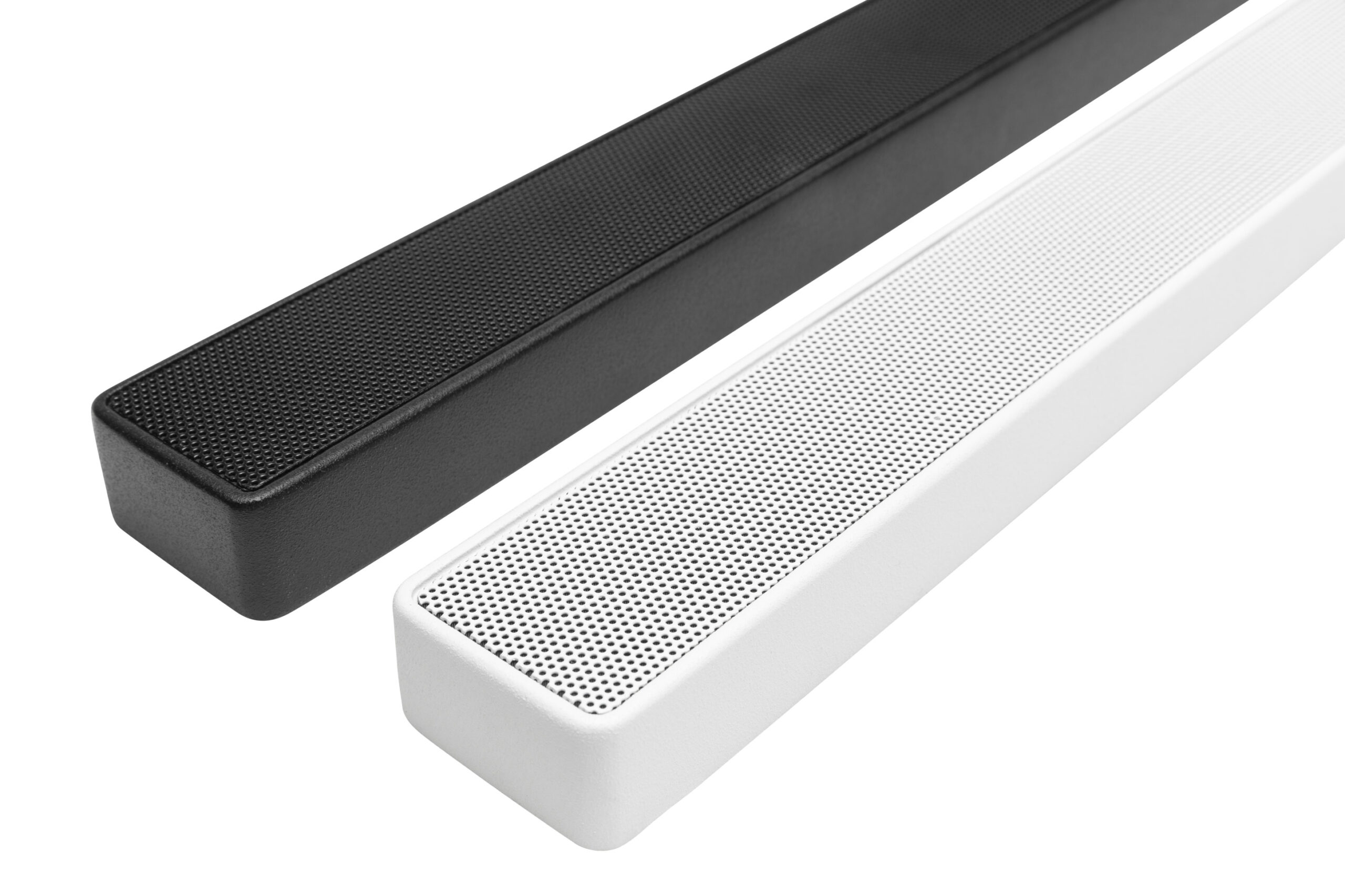

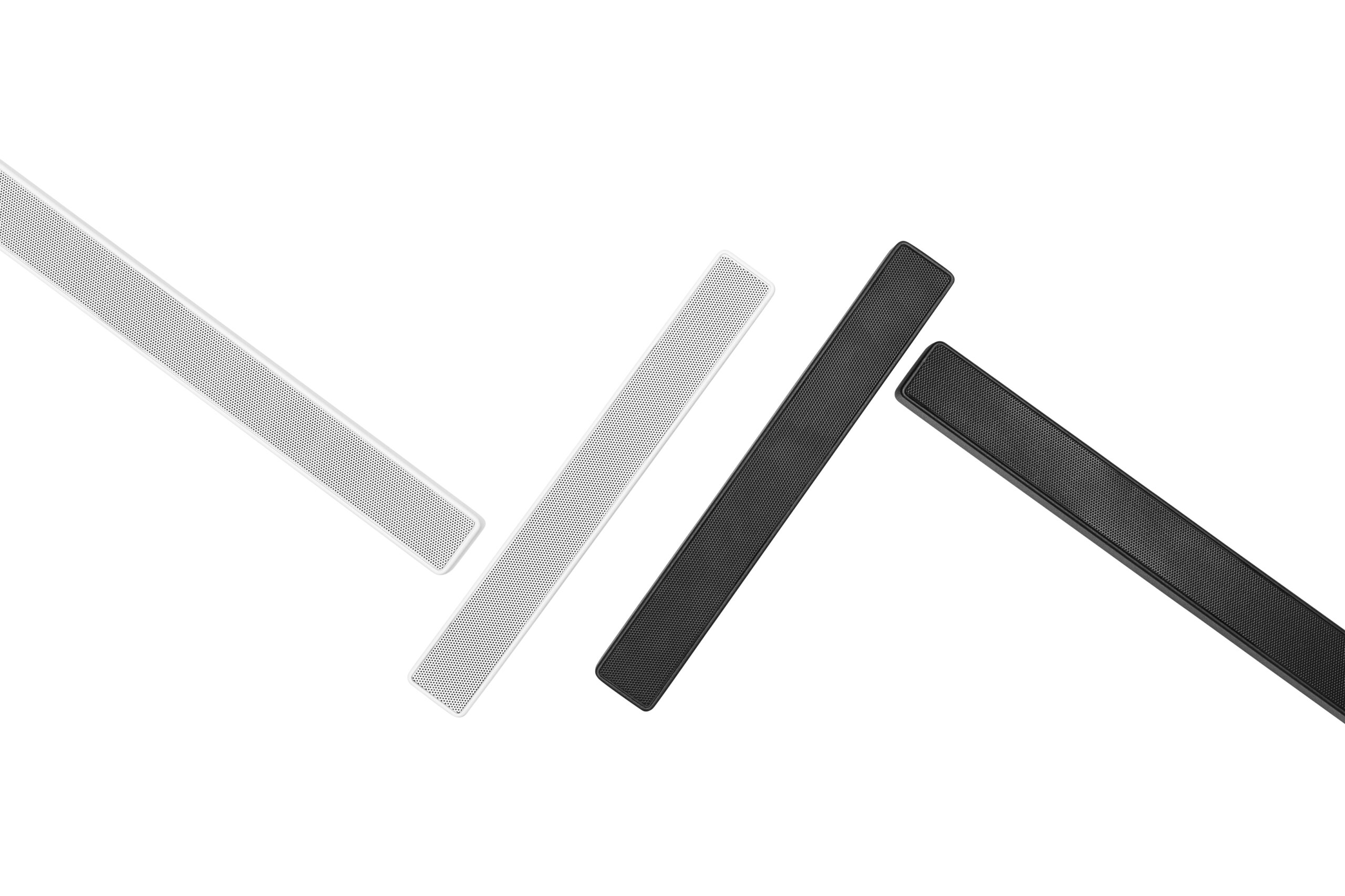

| Cabinet Finish | Black or White textured polyurethane paint (overpainted RAL colors on request) |
| Grill | Epoxy powder coated |

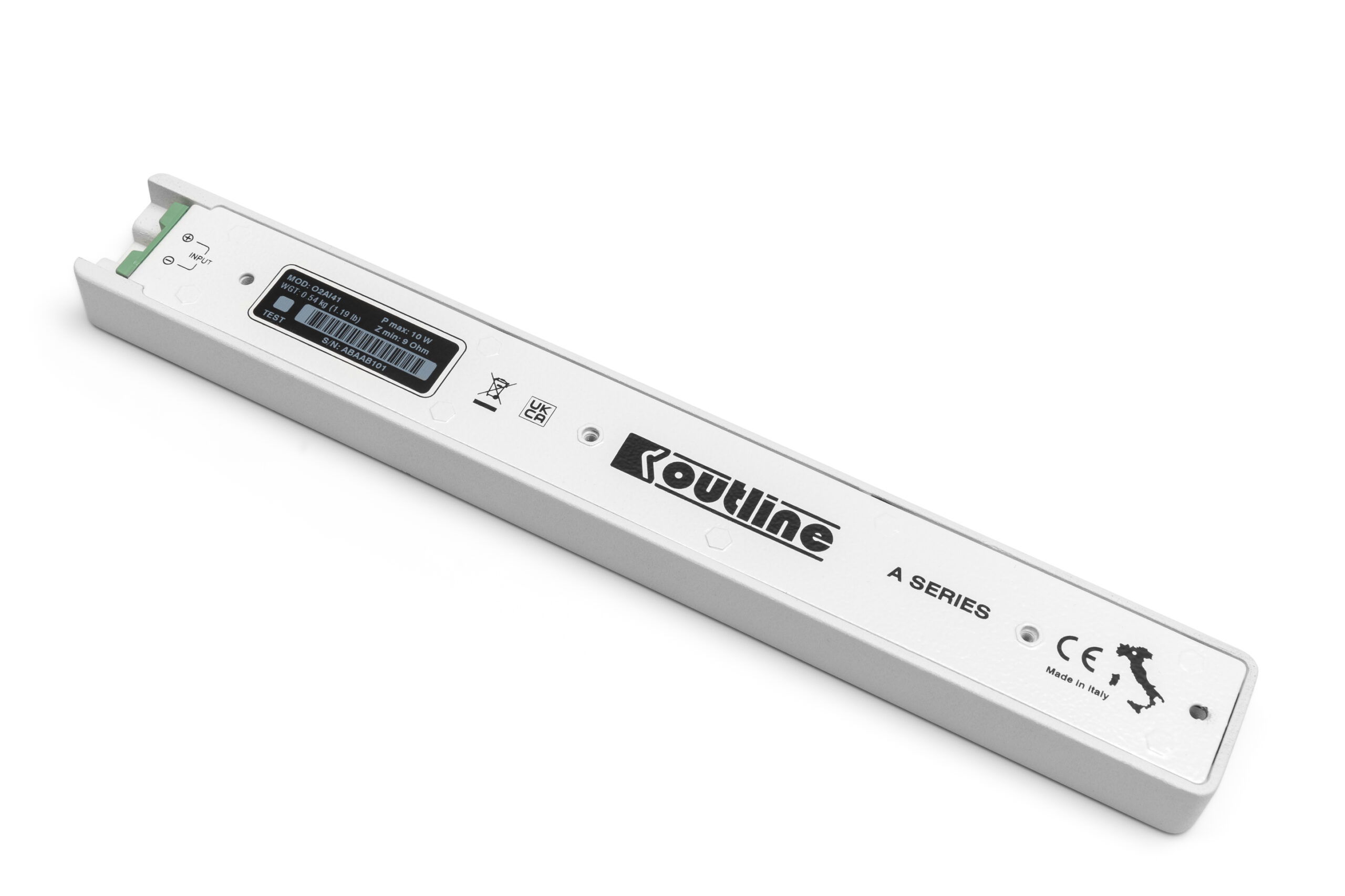

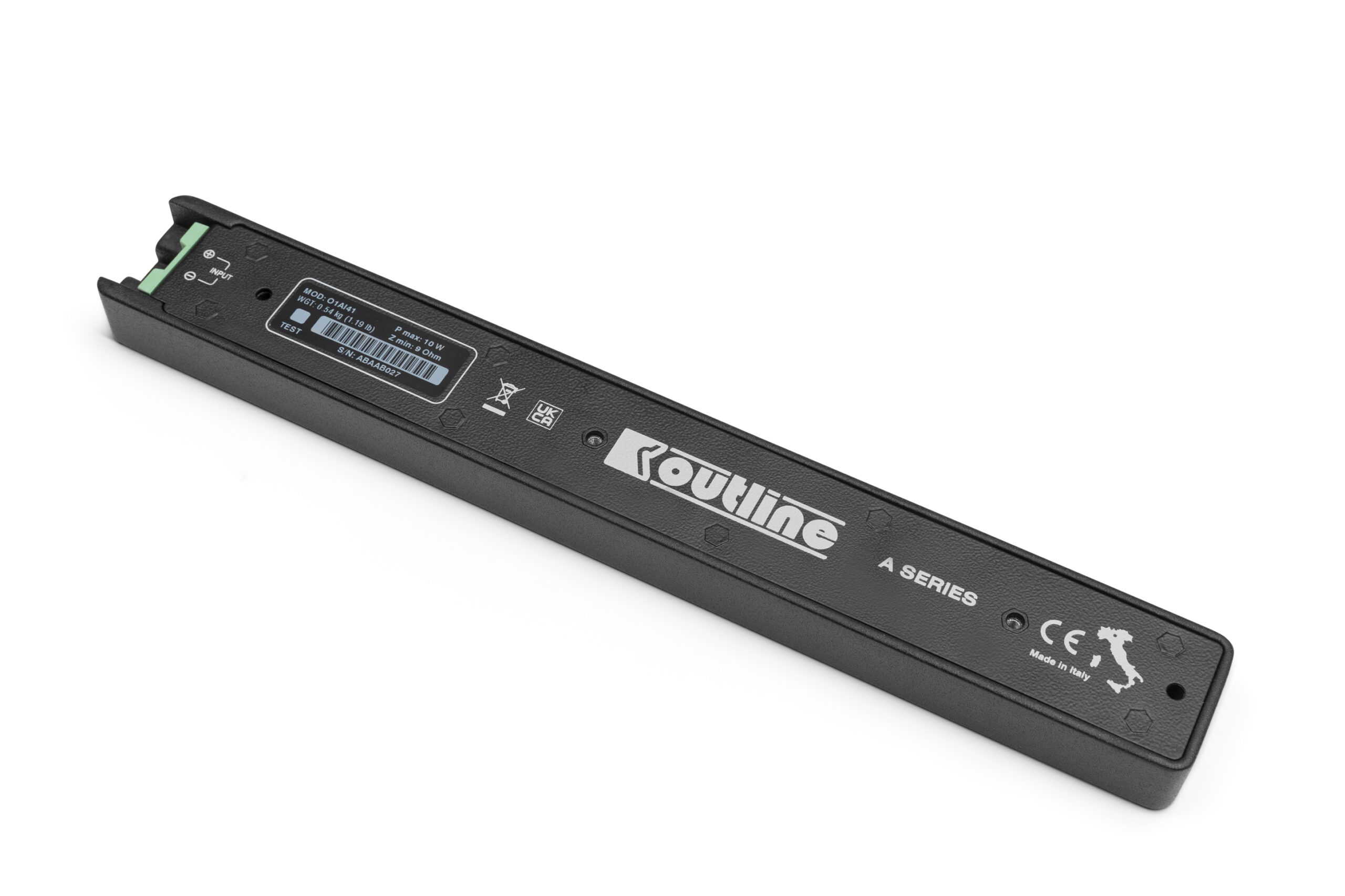

| Installation points | 2 through holes diam. 4 mm on front / 3 x M5 on back |
| Height | 570 mm – 22 4/8” |
| Width | 46 mm – 1 6/8” |
| Depth | 25 mm – 1” |
| Weight | 0.85 kg – 1.85 lb |
