Opis
- powers digital microphones
- has both digital and analog outputs

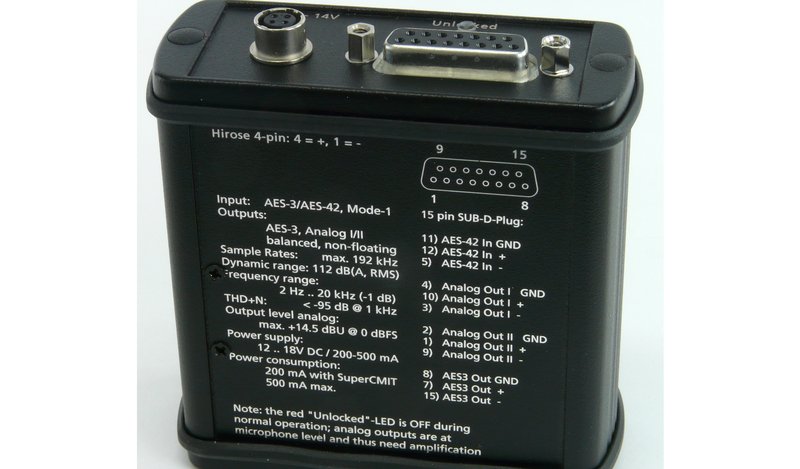

- inputs and outputs are available through a Sub-D breakout cable

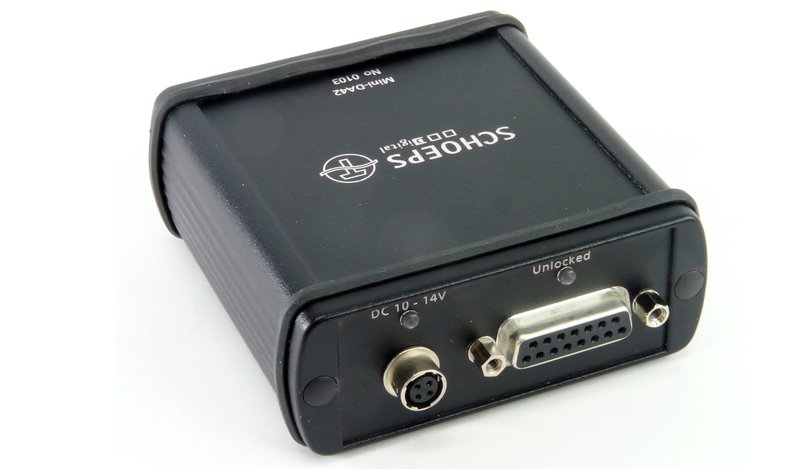

- all connectors are on the front side
It allows to operate digital microphones at devices which only offer analog inputs.
Inputs: AES42, Mode 1 (XLR-3F, 110 Ohms, black label
Outputs (available through included Sub-D breakout cable):
- AES3 (XLR-3M, 110 Ohms, blue label)
- 2 × analog (XLR-3M, yellow and red label), balanced, referring to ground, maximum cable length: 300 m
Indicators: Green LED for power; red LED for “unlocked” (turns off when a digital microphone is connected and the circuitry of the Mini-DA42 locks on to that signal).
Power: DC 12 – 18 V / 200 – 500 mA, available through included AC adapter PSD DC with HIROSE plug.
Operation is also possible with other AC adapter models or batteries / rechargeable batteries.
Dynamic range of the Mini-DA42: 112 dB (A, RMS), >98dB (CCIR, q-peak)
Dynamic range of the SuperCMIT with the Mini-DA42: >107 dB (A, RMS), >96dB (CCIR, q-peak)
