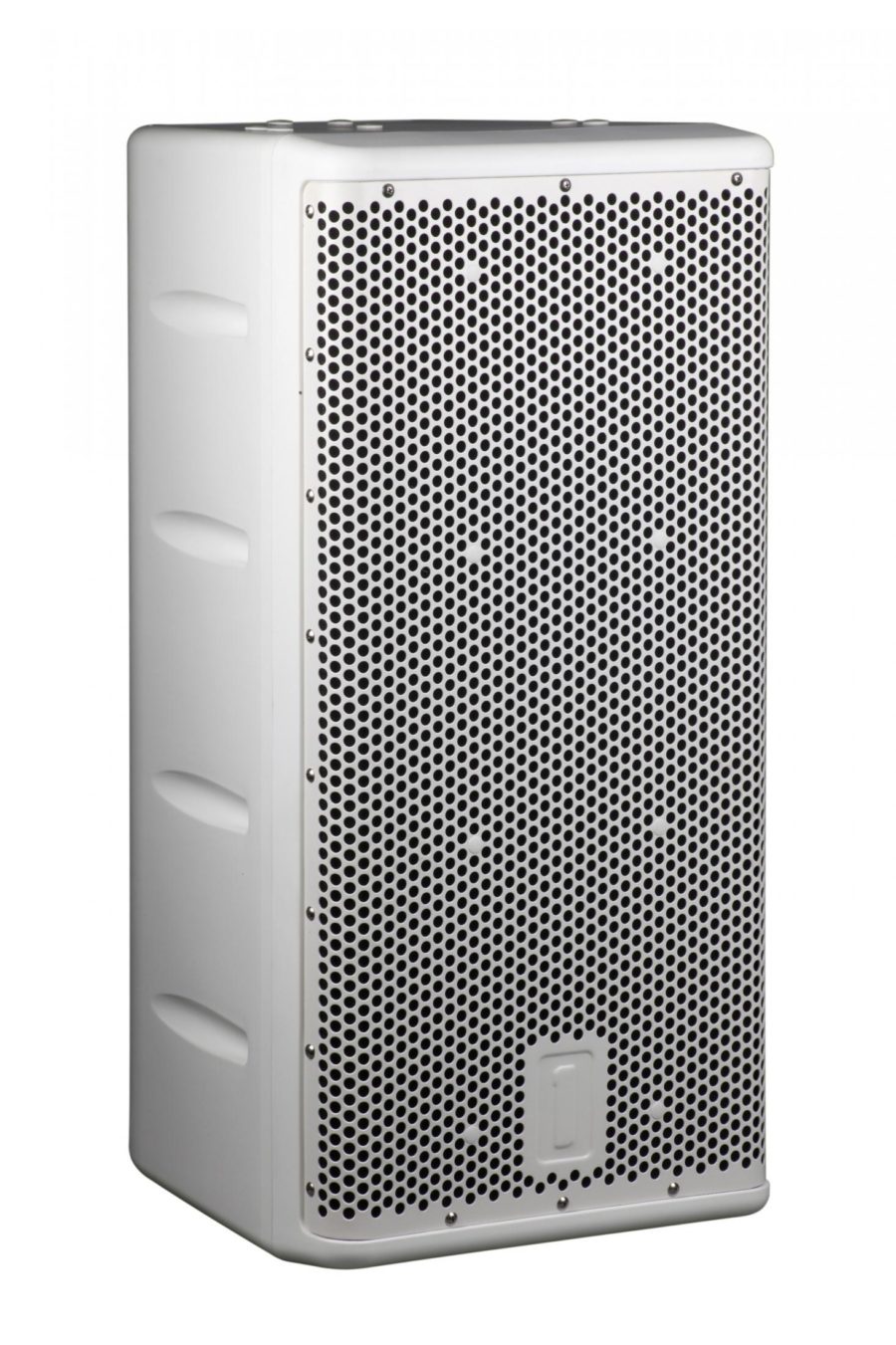

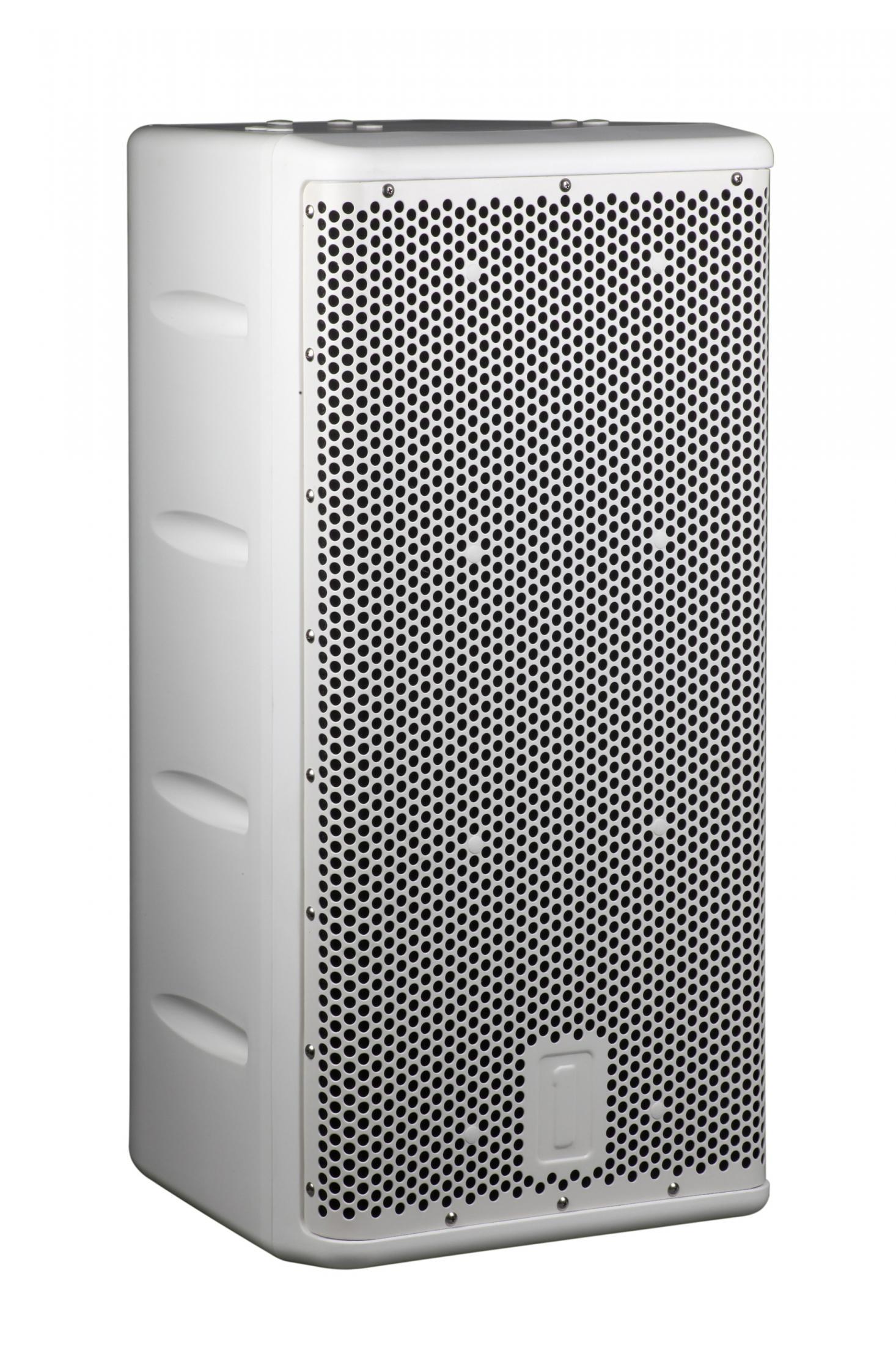

112.HSB-WHT Platinum Hybrid Series Subwoofers

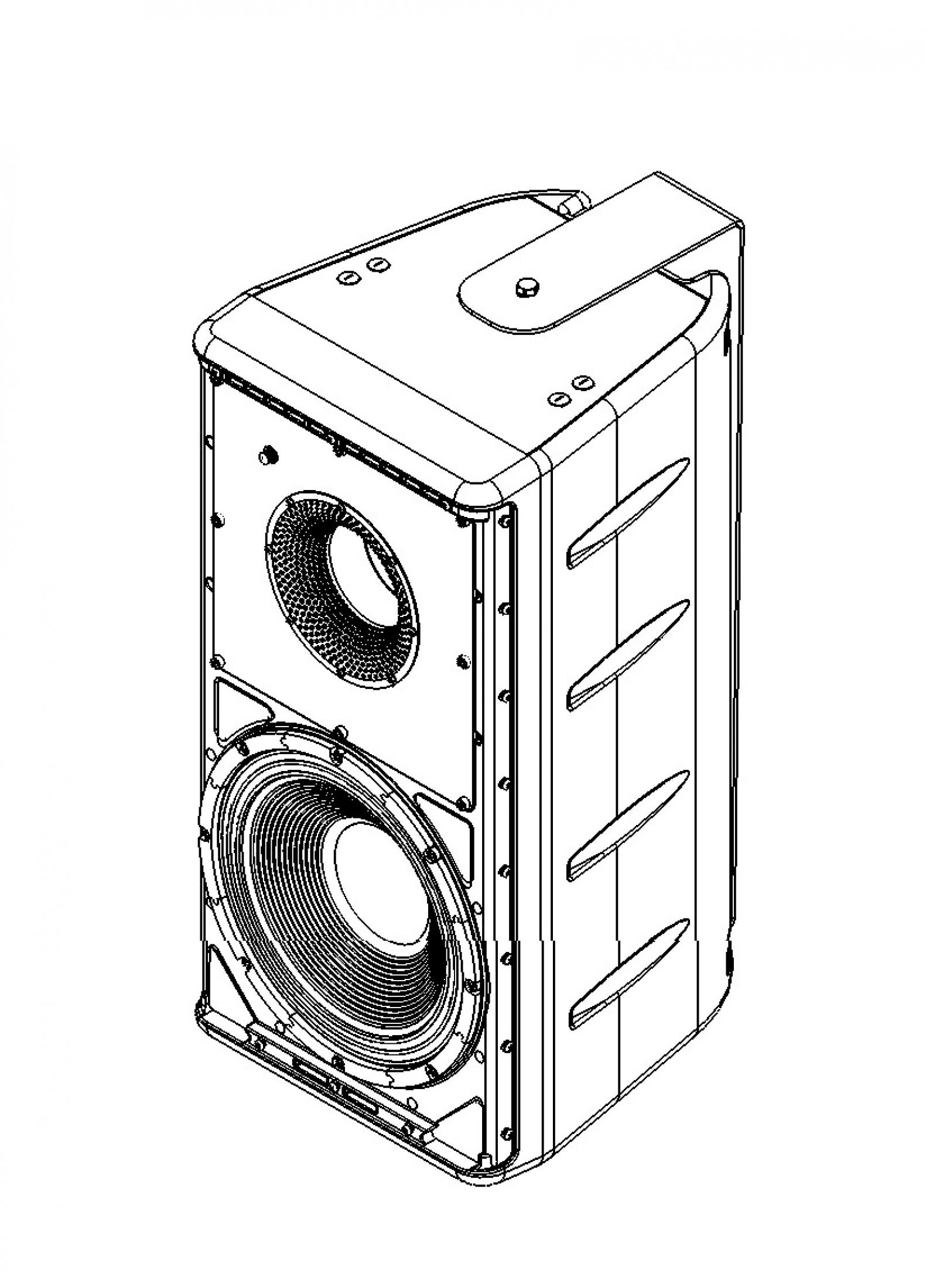

The 112.HSB’s 12-inch transducer is equipped with a 4-inch voice coil. Its patented 12I/O woofer utilizes a voice coil that’s wound on the inside of the coil’s support structure (U.S. Patent #8,543,856 B2). This design provides high magnetic system displacement and increased thermal transfer that reduces power compression and ensures higher reliability.

The 112.HSB utilizes a thick-walled injection molded enclosure designed to handle direct weather applications. The 112.HSB’s input section features a weather cover equipped with an IP 68 rated gland nut and a 4-position barrier strip with stainless steel hardware.

Mounting options sold separately

SPECIFICATIONS:

• Frequency Response: 50 – 150 Hz + 3 dB
• Dimensions (H x W x D), mm: 748 x 368 x 398 mm
• Dimensions (H x W x D), in: 29.4 x 14.4 x 15.6 in
• Power Handling: 800 watts continuous
• 3,200 watts peak * Direct Weather Performance: IEC 529 / IP 45
  * NOTE: All system power handling ratings are Finish: White (paintable)
  amplifier headroom dependent
  1,600 watts program
• Net Weight: 25 kg / 55 lb
• Sensitivity (1 watt @1 meter): 96 dB
• Optional Suspension Hardware:
  112.HTH.UM – U-Bracket
  PT76.M-White – Pan/tilt Bracket
  M10 Eye Bolt Kit.M – 4 x M10 eyebolts
• Coverage Pattern: Essentially omnidirectional
• PM4.M – Pole Mount Bracket
• Nominal Impedance: 4 ohms
• Input Connections: 4-position barrier strip
• Suspension / Mounting Points: 19 x M10
• Recommended High-Pass: Butterworth 24 dB @ 50 Hz
• Calculated Output Capability: 125 dB continuous/ 131 dB peak
